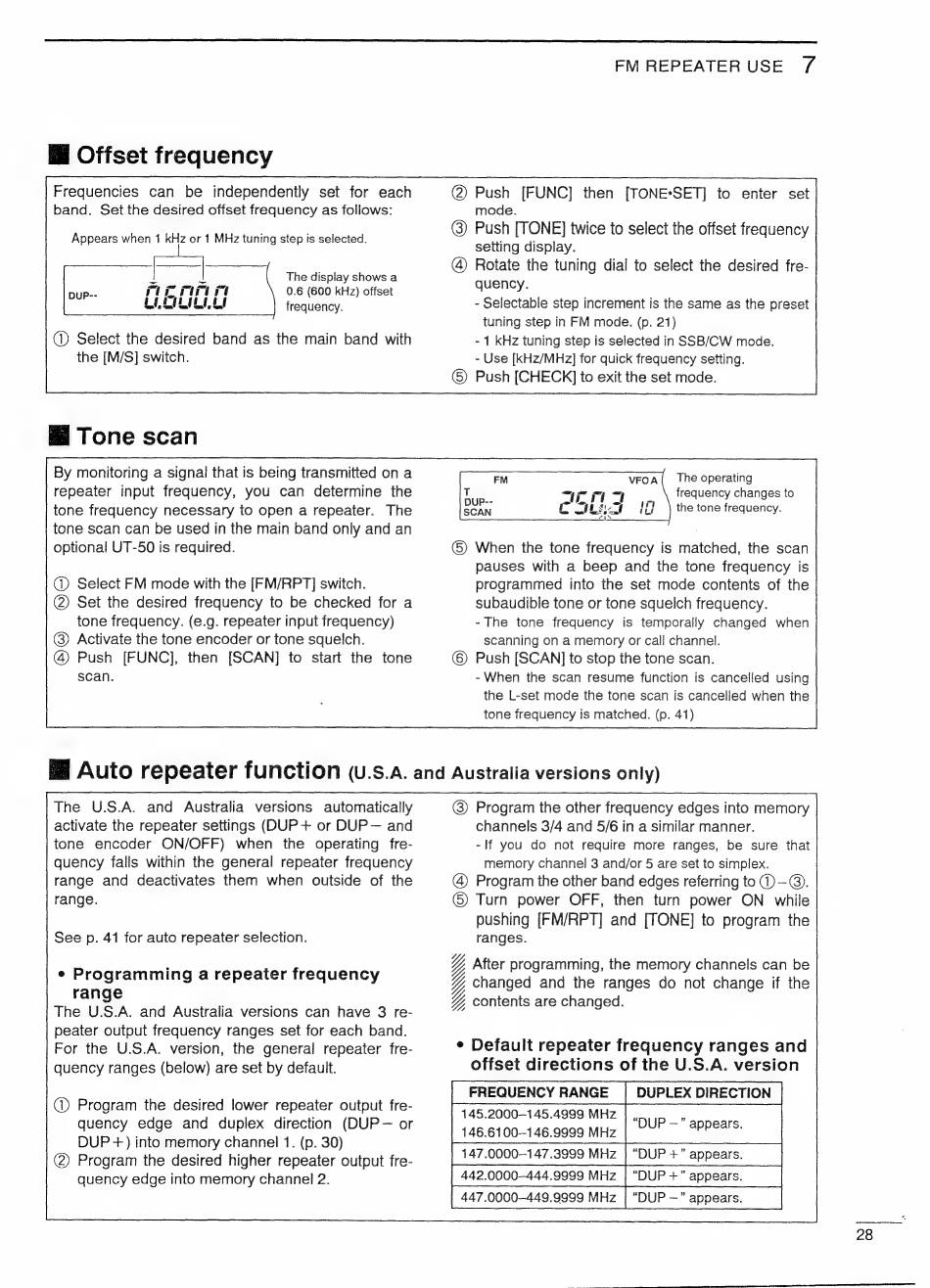

@ Offset frequency
Frequencies can be independently set for each
band. Set the desired offset frequency as follows:
Appears when 1 kHz or 1 MHz tuning step is selected.
The display shows a
0.6 (600 kHz) offset
frequency.
() Select the desired band as the main band with
the [M/S] switch.
mi Tone scan
By monitoring a signal that is being transmitted on a
repeater input frequency, you can determine the
tone frequency necessary to open a repeater. The
tone scan can be used in the main band only and an
optional UT-50 is required.
@ Select FM mode with the [FM/RPT] switch.
(2) Set the desired frequency to be checked for a
tone frequency. (e.g. repeater input frequency)
(3) Activate the tone encoder or tone squelch.
@ Push [FUNC], then [SCAN] to start the tone
scan.
The U.S.A. and Australia versions automatically
activate the repeater settings (DUP + or DUP— and
tone encoder ON/OFF) when the operating fre-
quency falls within the general repeater frequency
range and deactivates them when outside of the
range.
See p. 41 for auto repeater selection.
e Programming a repeater frequency
range
The U.S.A. and Australia versions can have 3 re-
peater output frequency ranges set for each band.
For the U.S.A. version, the general repeater fre-
quency ranges (below) are set by default.
@ Program the desired lower repeater output fre-
quency edge and duplex direction (DUP— or
DUP +) into memory channel 1. (p. 30)
(2) Program the desired higher repeater output fre-
quency edge into memory channel 2.
FM REPEATER USE 7
(2) Push [FUNC] then [TONE*SET] to enter set
mode.
@) Push [TONE] twice to select the offset frequency
setting display.
@ Rotate the tuning dial to select the desired fre-
quency.
- Selectable step increment is the same as the preset
tuning step in FM mode. (p. 21)
- 1 kHz tuning step is selected in SSB/CW mode.
- Use [KHz/MHz] for quick frequency setting.
(©) Push [CHECK] to exit the set mode.
The operating
frequency changes to
the tone frequency.
(©) When the tone frequency is matched, the scan
pauses with a beep and the tone frequency is
programmed into the set mode contents of the
subaudible tone or tone squelch frequency.
- The tone frequency is temporally changed when
scanning on a memory or call channel.
Push [SCAN] to stop the tone scan.
- When the scan resume function is cancelled using
the L-set mode the tone scan is cancelled when the
tone frequency is matched. (p. 41)
Ea Auto repeater function (U.S.A. and Australia versions only)
(3) Program the other frequency edges into memory
channels 3/4 and 5/6 in a similar manner.
-If you do not require more ranges, be sure that
memory channel 3 and/or 5 are set to simplex.
(4) Program the other band edges referring to D)—@).
(©) Turn power OFF, then turn power ON while
pushing [FM/RPT] and [TONE] to program the
ranges.
After programming, the memory channels can be
changed and the ranges do not change if the
contents are changed.
e Default repeater frequency ranges and
offset directions of the U.S.A. version
145.2000-145.4999 MHz
146.6100-146.9999 MHz
442.0000-—444.9999 MHz | "DUP +" appears.
447.0000-449.9999 MHz | "DUP —" appears.
