5. Remove the battery from its socket.
6. Dispose of the battery according to local ordinance.
7. Remove the new lithium battery from its package, and, being careful to observe the
correct polarity, insert it in the battery socket.
Note: You will need to run the BIOS Setup to restore the configuration settings to the RTC.

Replacing the Power Supply

Caution: The power supply is only hot-swappable if you have a redundant system with two power
supplies installed. If you only have one power supply installed, before removing or
replacing the power supply, you must first take the server out of service, turn off all
peripheral devices connected to the system, turn off the system by pressing the power
button, and unplug the AC power cord from the system or wall outlet.
The power supply can be replaced if it fails or if one of the fans that is integrated into it
fails.
To replace the power supply, follow these steps:
1. Do one of the following:
120

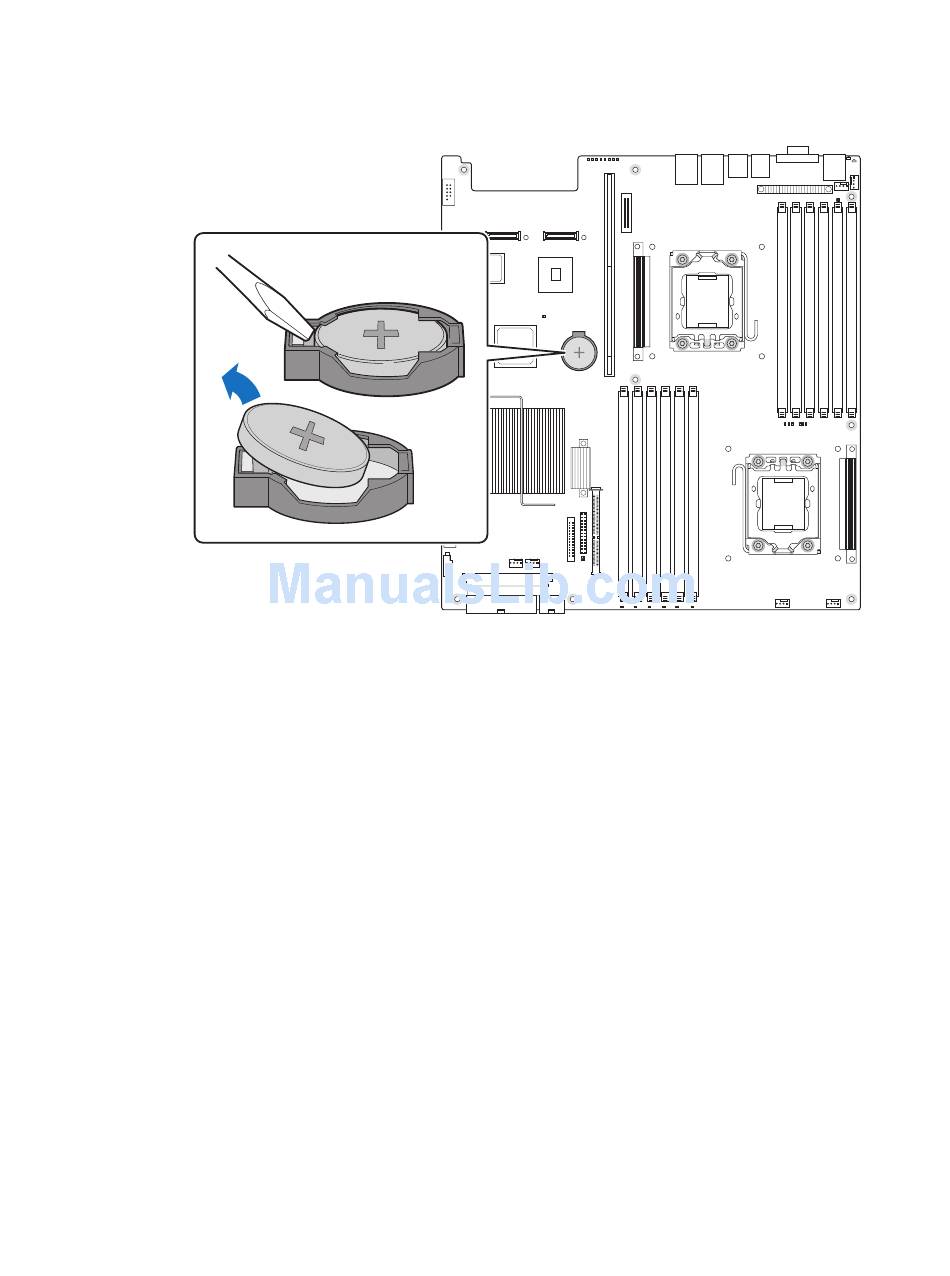

Figure 111. Replacing the Backup Battery

®
Intel Server System SR2600UR/SR2625UR Service Guide
