— If no power supply is to be installed, insert a power supply filler panel as shown

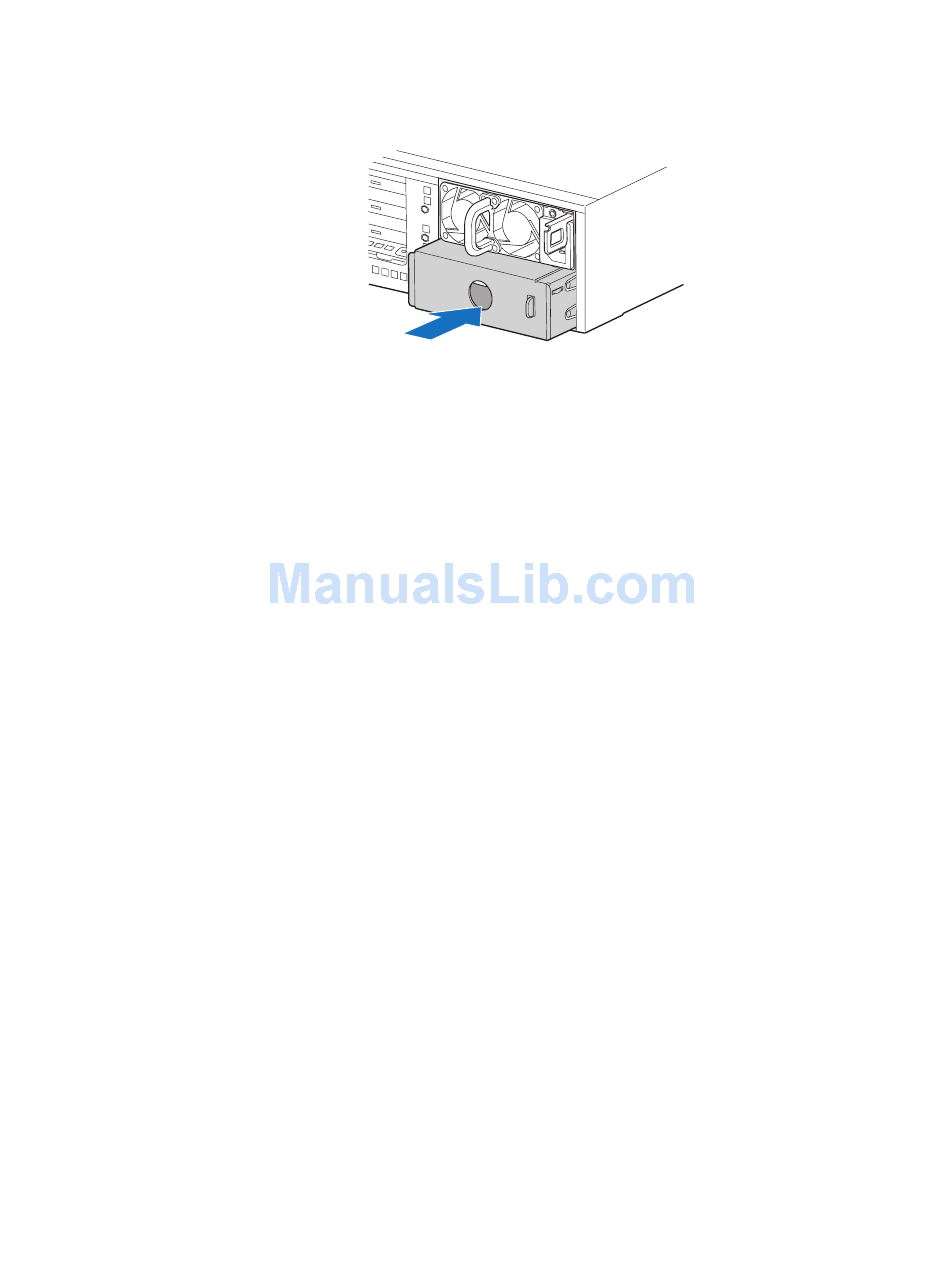

Figure 115. Installing Power Supply Filler Panel into the Server System

Replacing the Power Distribution Module

To replace the power distribution module, follow these steps:
1. If installed, remove the PCI riser assembly. For instructions, see
PCI Riser Assembly" on page
2. If installed, remove the processor air duct. For instructions, see
Processor Air Duct" on page
3. Remove the large air baffle. For instructions, see
on page
4. Remove the fan module assembly. For instructions, see
on page
5. Disconnect all power cables from the server board, backplane, and midplane.
6. Remove the hot-swap power supply/supplies. For instructions, see step 1 in
"Replacing the Power Supply" on page
7. Remove the two screws to release the module (see letter "A" in
122
in Figure 115.
70.
127.
50.
56.
"Removing the Large Air Baffle"
120.
®
Intel Server System SR2600UR/SR2625UR Service Guide
AF000023
"Removing the
"Removing the
"Replacing a Fan Module"
Figure 116).
