Installing a Slimline Optical Drive or Internal USB Floppy

To install a slimline optical drive or internal USB floppy in Intel
SR2600UR, follow these steps:
1. Remove the empty tray and screw from the accessory kit box and obtain the optical
device.
2. Plug the interposer board connector into the matching connector on the back of the
optical device (see letter "A" in
3. Align the two holes on the left edge of the optical device with the two metal tabs in
the tray (see letter "A" in
4. Lower the opposite side of the optical device into the tray until it clicks into place
(see letter "B" in
78

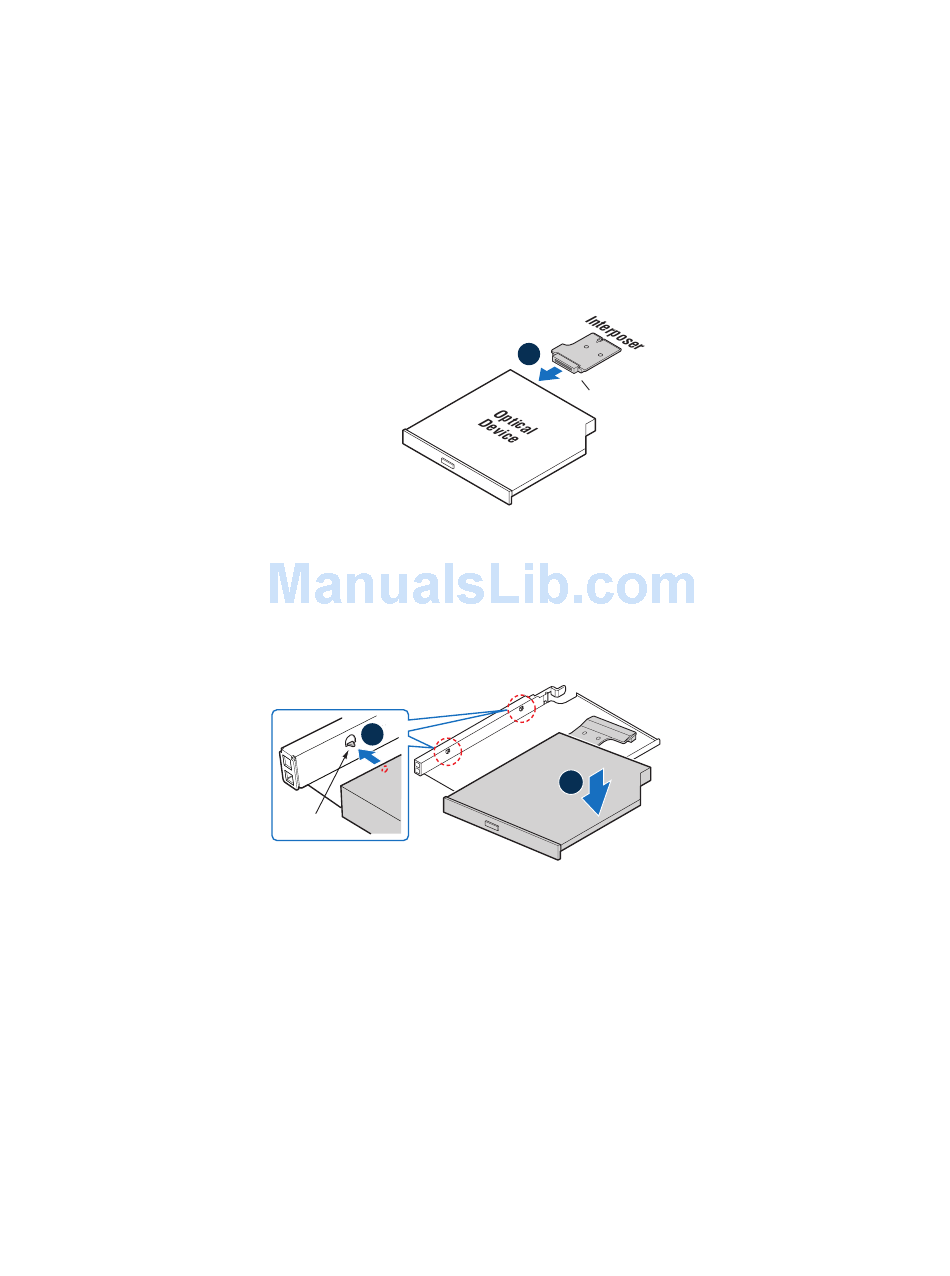

Figure 63. Installing the Interposer Board

Figure
Figure 64).
A
Metal Tab

Figure 64. Installing the Optical Device into the Drive Tray

Intel
Figure 63).
A
Connector
AF002962
64).
B
AF002963
®
