Installing The Server Board; Figure 110. Installing The Server Board - Intel SR2600UR - Server System - 0 MB RAM Service Manual

Installing the Server Board

To install the server board, follow these steps:
1. Place the server board into the server system (see letter "A" in
2. Attach the server board with nine screws (see letter "B" in
3. Connect all power cables to the server board.
4. Install memory. For instructions, see
5. Install the processor(s). For instructions, see
6. Install processor heatsink(s). For instructions, see
page
7. Install the fan module assembly. For instructions, see
page
8. Install the large air baffle. For instructions, see
page
9. Install the bridge board. For instructions, see step 6 in
Board" on page
118
A

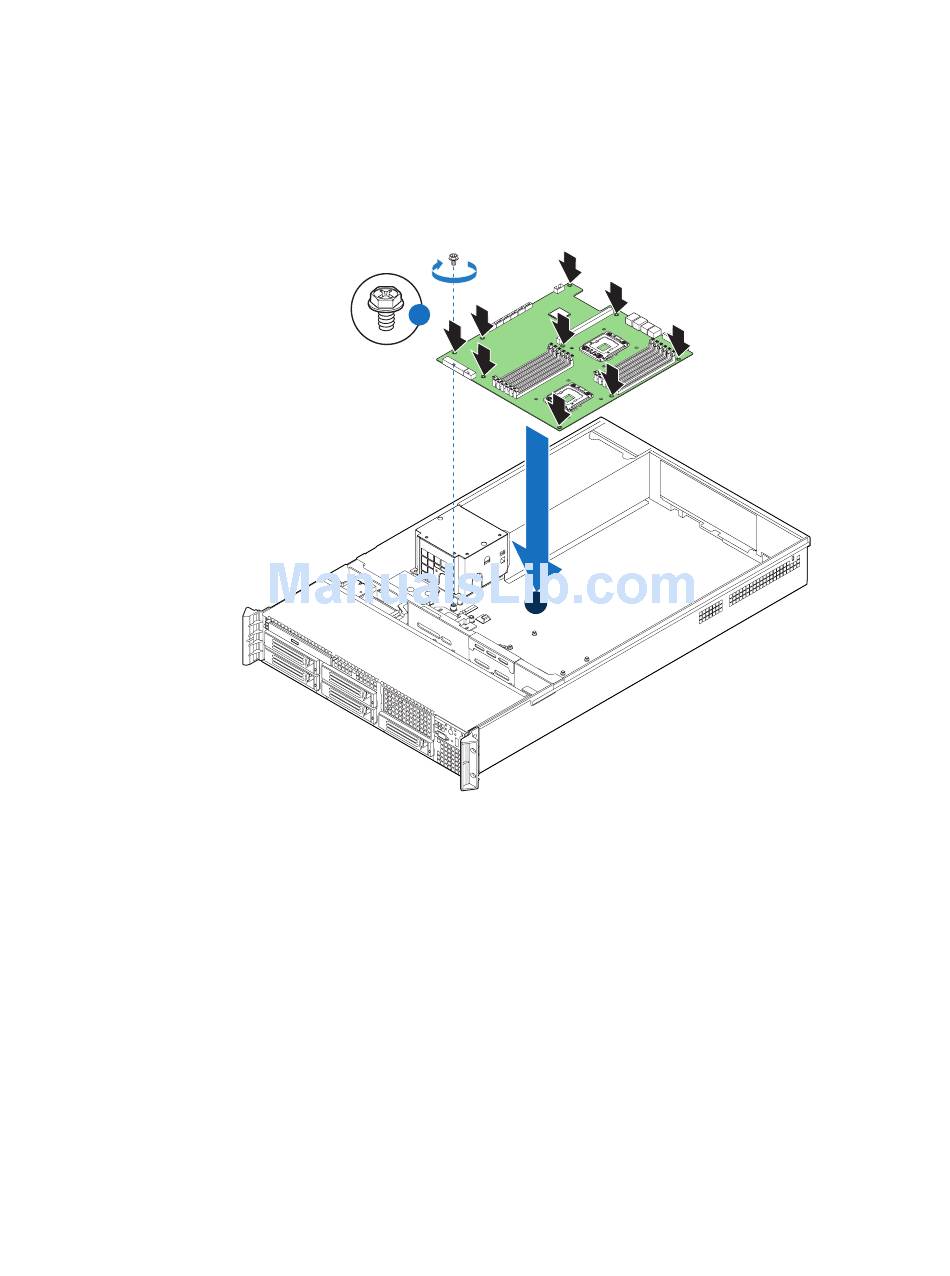

Figure 110. Installing the Server Board
