Figure 73. Removing Tape Drive Filler Panel From The Server System; Figure 74. Inserting A Tape Drive Into The Carrier - Intel SR2600UR - Server System - 0 MB RAM Service Manual
Service guide
Hide thumbs
Also See for SR2600UR - Server System - 0 MB RAM:
- Quick start manual (1 page) ,
- Service manual (228 pages)
Table of Contents
Advertisement
2. Attach the tape drive to the tape drive carrier kit using the four screws that were
included with the tape drive kit as shown in
3. Slide the tape drive carrier with the installed tape drive into the combined tape drive
bay/sixth drive bay until the carrier clicks into place.
®
Intel
Server System SR2600UR/SR2625UR Service Guide
A
B

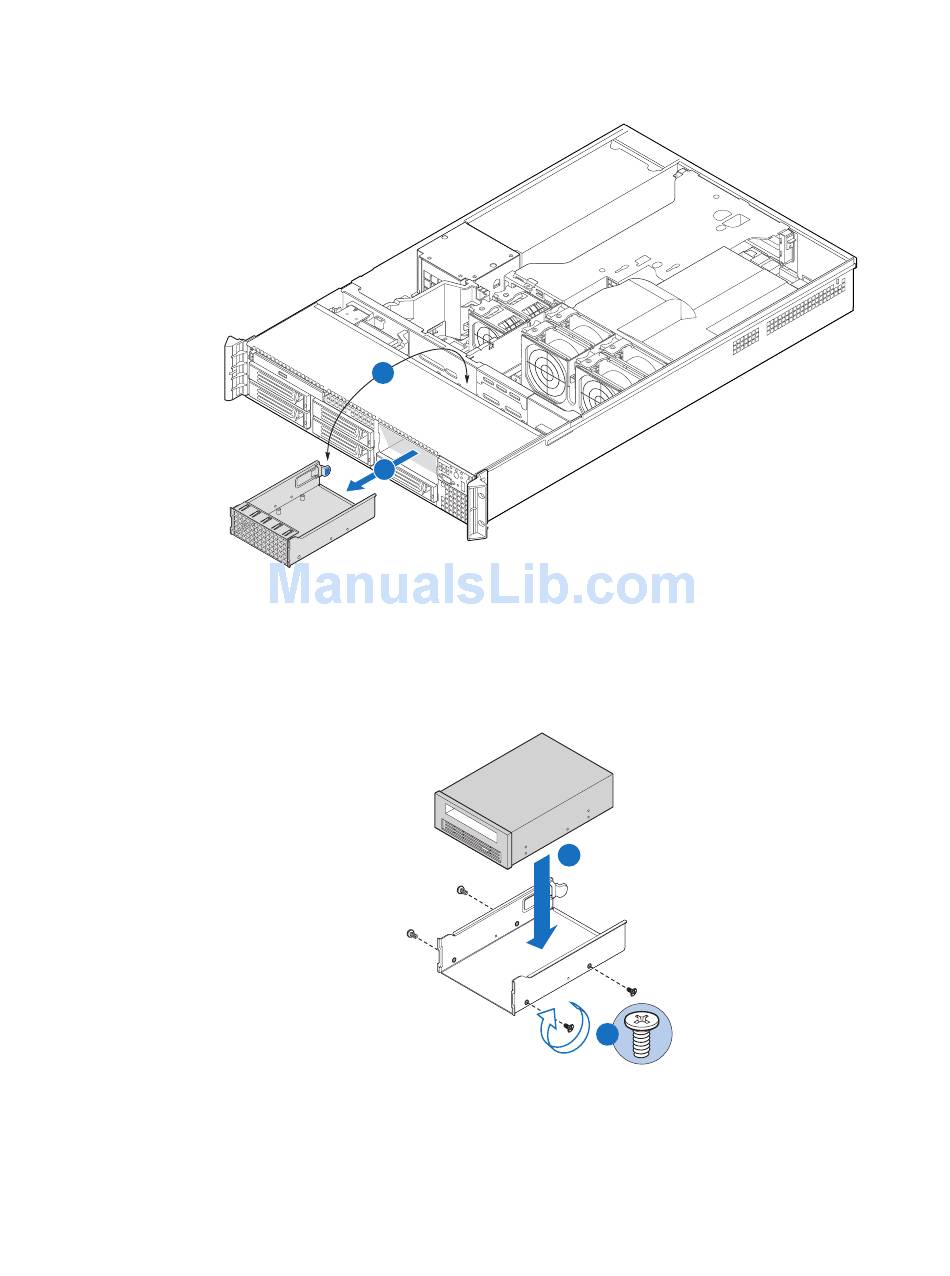

Figure 73. Removing Tape Drive Filler Panel from the Server System
Figure 74. Inserting a Tape Drive into the Carrier
Figure
74.
A
B
AF000032
AF003029
85
