2. Remove all hot-swap drive carriers, regardless of whether or not a drive is installed
in the carrier. For instructions, see
Drive" on page
3. Disconnect all cables from the backplane.
4. Depending on your server system, do one of the following:
For Intel
— Firmly grasp the top of the backplane and remove the backplane from the server

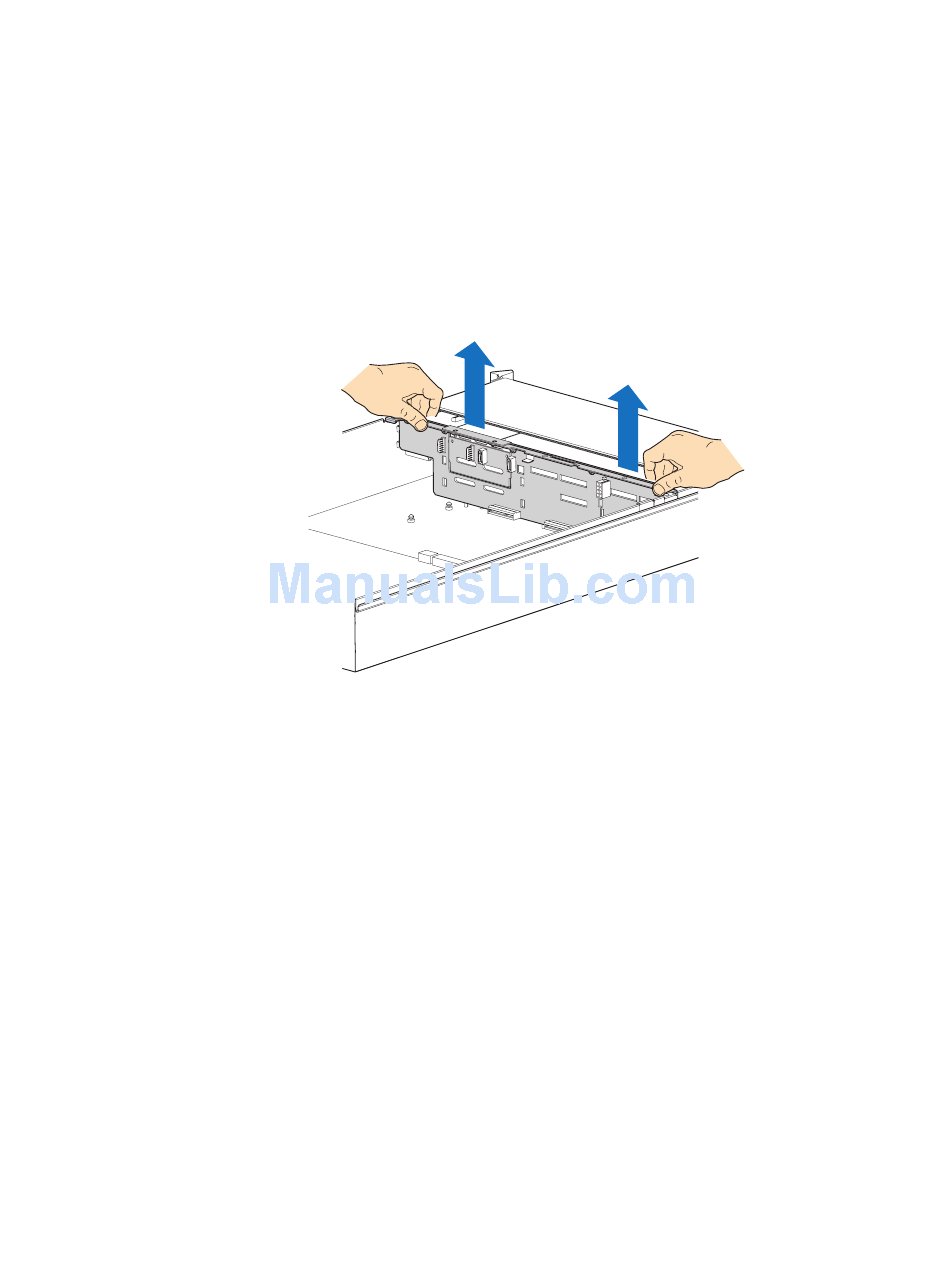

Figure 101. Removing the Backplane from the Intel
For Intel
a. Remove the blue thumbscrew from the backplane board (see letter "A" in
b. Hold the backplane board only by the edges and slide the backplane board in the
c. Remove the backplane board from the six hooks and pull out of the system (see
108
74.
®
Server System SR2600UR, do the following:
system by pulling straight up as shown in
®
Server System SR2625UR, do the following:
Figure 102).
direction shown to release it (see letter "B" in
letter "C" in Figure 102).
"Removing a SAS or SATA Hot-swap Hard Disk
Figure
®
Figure
®
Intel Server System SR2600UR/SR2625UR Service Guide
101.
AF002992
Server System SR2600UR
102).
