Figure 128. Removing A Fan From The Fixed Fan Module - Intel SR2600UR - Server System - 0 MB RAM Service Manual

1. Remove the fixed fan module. For instructions, see steps 1 through 7 in
a Fixed Fan Module" on page
2. Pull out the plastic tabs on both ends to release the fan (see letter "A" in
Figure
3. Remove the fan from the fan module (see letter "B" in
4. Position the replacement fan so the connector on the fan is at the right and pointing
down.
®
Intel Server System SR2600UR/SR2625UR Service Guide
128).

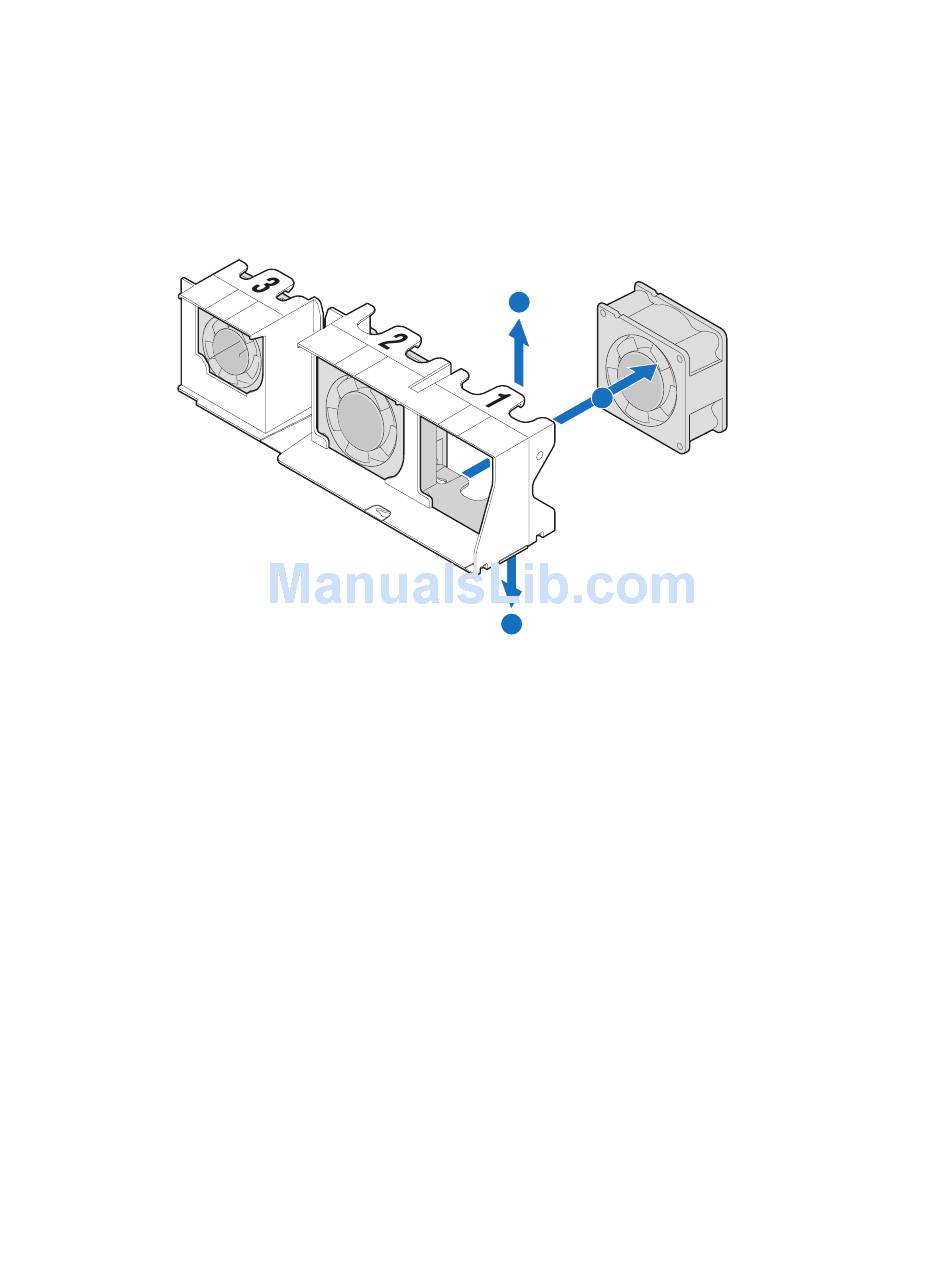

Figure 128. Removing a Fan from the Fixed Fan Module

130.
2
A
B
A
"Replacing
Figure 128).
AF003027
135
