1. Remove the default filler panel from the server system by pressing the blue release
lever (see letter "A" in
sliding it out from the front of the system (see letter "B" in
2. Install the sixth hard drive filler panel as shown in
®
Intel
Server System SR2600UR/SR2625UR Service Guide
Figure
76) and pushing it forward to release it and then
A
B

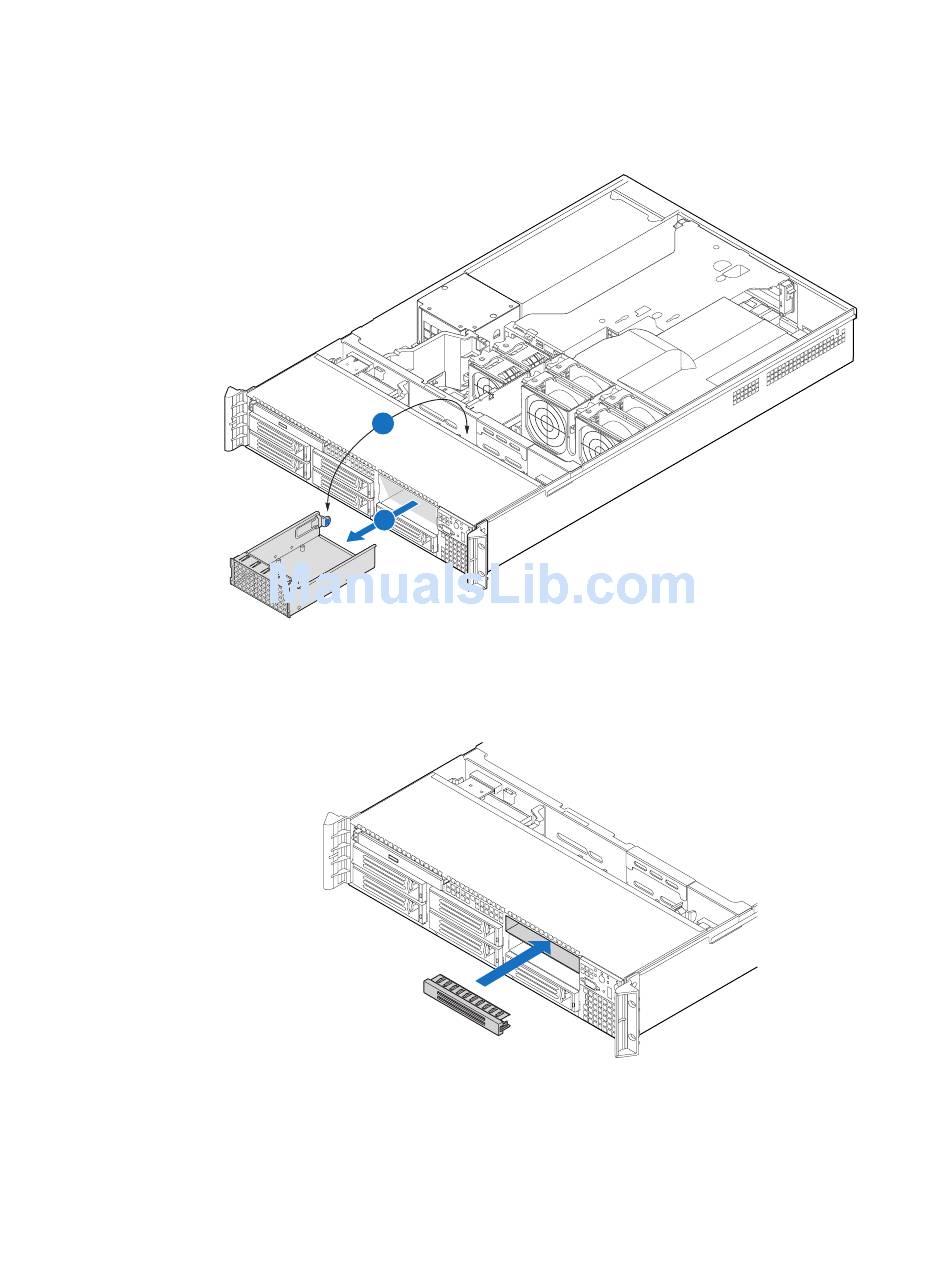

Figure 76. Removing the Filler Panel

Figure 77. Installing Sixth Hard Drive Filler Panel

Figure
76.
AF003029
Figure
77.
AF003032
