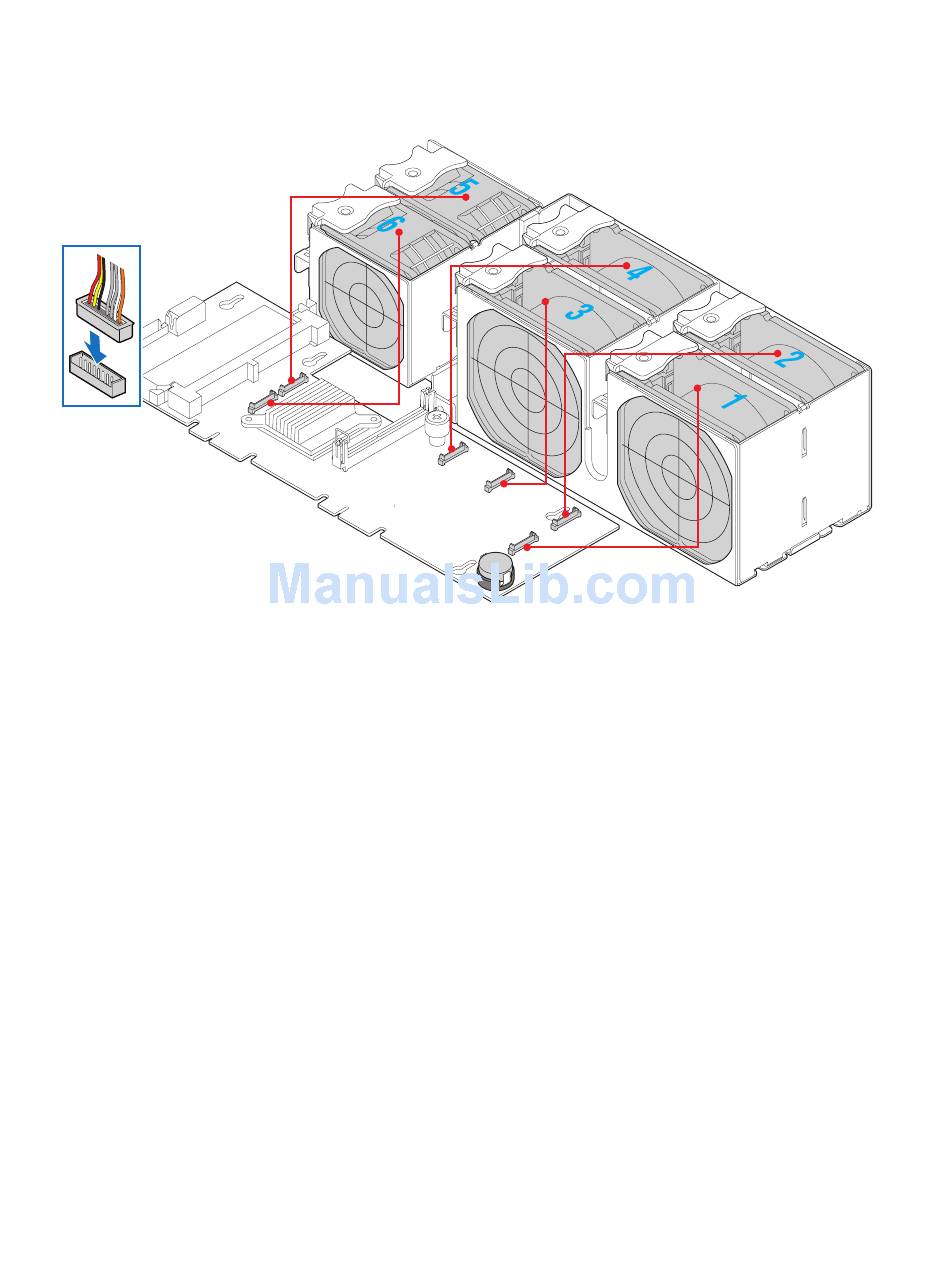

Figure 25. Connecting the Redundant Fan Power Cables to the Active Midplane Board

Removing and Installing from a Rack

To install the Intel
options are available:
•
Fixed mount relay rack / cabinet mount kit
This rack option requires the system to be removed from the rack before servicing.
•
Basic slide rail kit
This rack option requires the system to be removed from the rack before servicing.
•
The tool-less full extracting slide rail kit
Only the tool-less rail kit allows you to service the server system while installed in
a rack.
Note: Follow all safety guidelines while removing a system from a rack to avoid injury.

Fixed Bracket Rack Mount Removal

1. Disconnect all cables from the back of the system.
