Installing the Processor Air Duct

Place the processor air duct over the processor socket(s) (see
the air duct should contact the fan module. Use caution not to pinch or disengage cables
that may be near or under the air duct.

Installing and Removing Memory

The silkscreen on the board displays DIMM A1, DIMM A2, DIMM B1, DIMM B2,
DIMM C1, DIMM C2 for DIMMs on CPU socket 1 and DIMM D1, DIMM D2, DIMM
E1, DIMM E2, DIMM F1, DIMM F2 for DIMMs on CPU socket 2.

DIMM Blank Installation Requirements

In order to maintain adequate thermal levels, you MUST install DIMM blanks in the
appropriate DIMM slots as described below:
•
If you have only one processor installed, all CPU 1 DIMM slots must either have a
DIMM or DIMM blank installed. You may either leave the CPU 2 DIMM slots
empty or store extra blanks in the blue DIMM slots.
•
If you have both processors installed, all blue DIMM slots in CPU 1 and CPU 2
must either have a DIMM or DIMM blank installed. You may store extra DIMM
blanks in any of the unused CPU 1 DIMM slots.
For additional information regarding memory requirements and options, refer to the
following documents:
®
Intel Server System SR2600UR/SR2625UR Service Guide

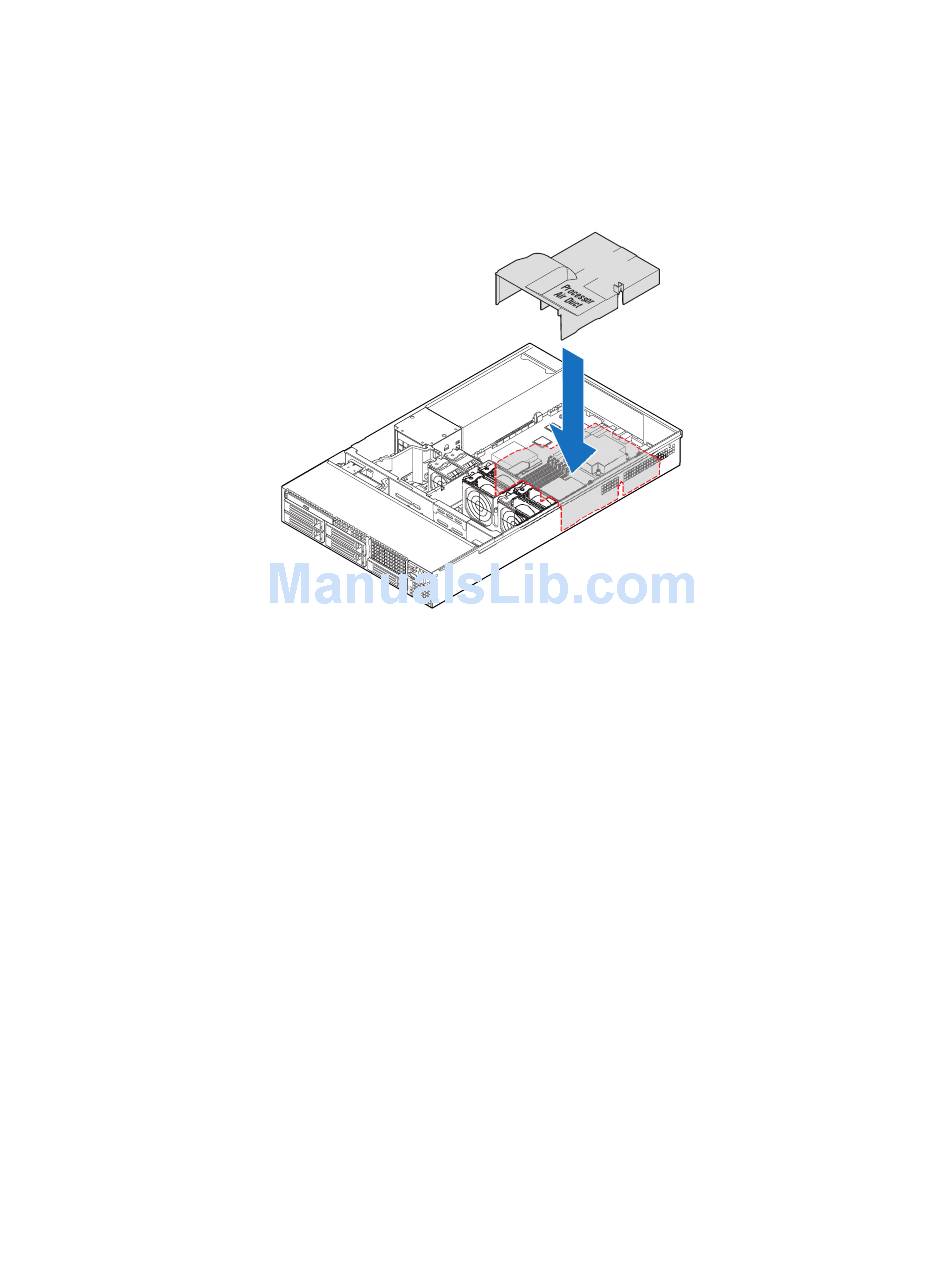

Figure 39. Installing the Processor Air Duct

Figure 39). The front edge of
AF002957
