Cable Routing; Figure 23. Cable Routing - Intel SR2600UR - Server System - 0 MB RAM Service Manual

Cable Routing

When you add or remove components from your server system, make sure your cables are
routed correctly before reinstalling the server system cover. Use caution to make sure no
cables or wires are pinched and that the airflow from the fans is not blocked. Use the
figures below to determine the correct cable routing.
A
Intel® Remote Management Module 3 (optional)
B
I/O Module (optional)
C
Power Supply
D
Bridge Board
E
Midplane Board (Active shown)
F
Power Distribution Board
G
Backplane Board
H
Power to Midplane Board
I
Power to Backplane Board
J
Power to Server Board (CPU)
K
Power to Server Board (Main)
L
Power to Server Board (Aux.)
M
Fan Power Cables
N
RAID Battery Power to
Active Midplane Board
Server Board SATA
O
Connector Legend
Begin cable
connections at the
SATA-0 location.
40
5
4
3
2
1
0

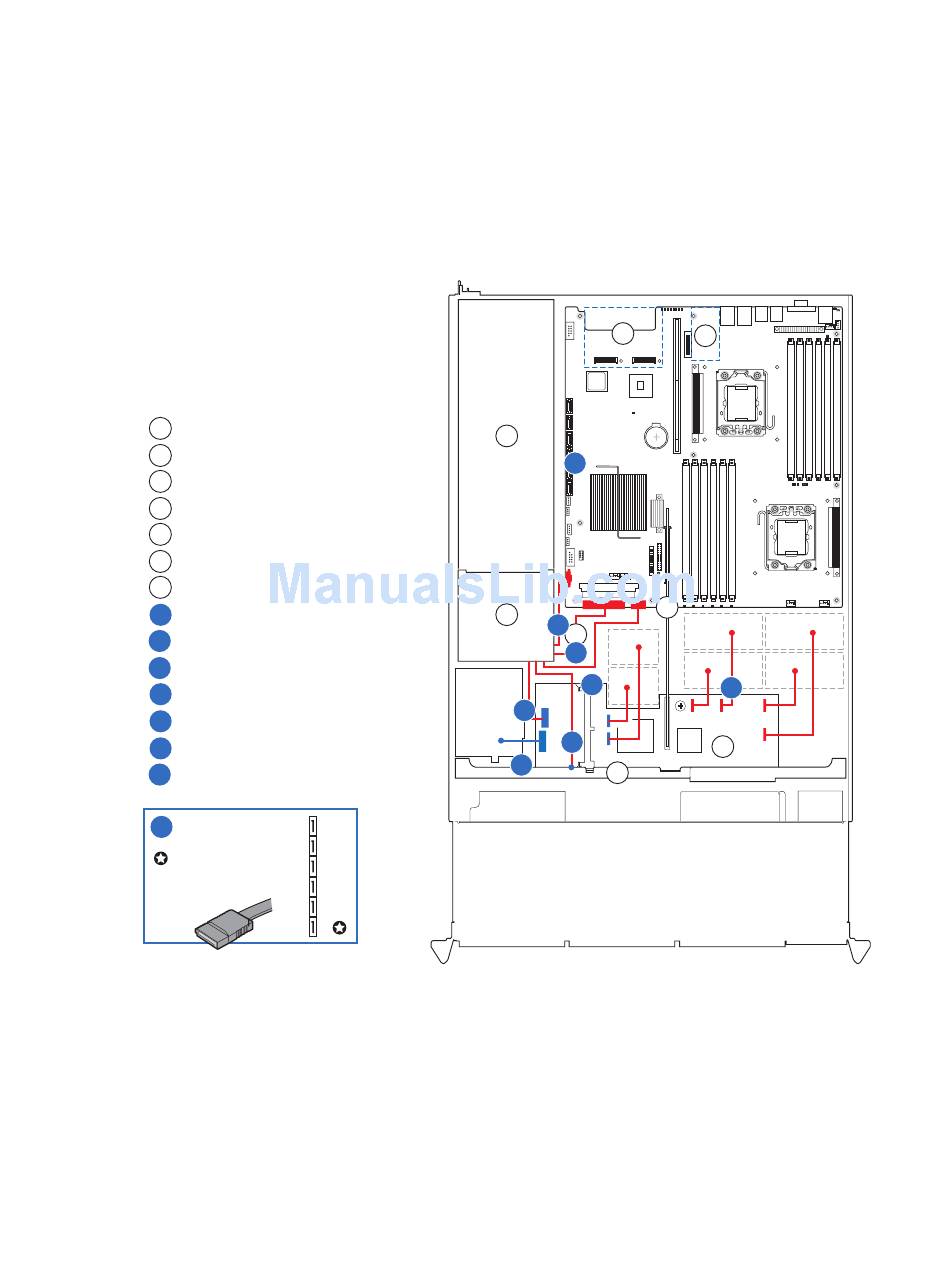

Figure 23. Cable Routing

®
Intel Server System SR2600UR/SR2625UR Service Guide
B
Server
C
Board
O
D
F
L
K
K
J
H
I
N
G
A
CPU1
CPU2
M
E
AF002993
