Jumper Name
D. Password Clear (J1E8)
E. BIOS Recover (J1D4)
Front of Intel

Peripheral Devices

The Intel
drives, a tape drive, a USB floppy drive, CD-ROM drive, or DVD-ROM drive. The drives
must be purchased separately. The following figure shows the available options.
.
®
Intel Server System SR2600UR/SR2625UR Service Guide
If pins 2-3 are jumpered, administrator and user passwords are
cleared within five to ten seconds after the system is powered on.
These pins should be jumpered on 1-2 for normal system
operation.
If pins 2-3 are jumpered, the system can only boot from EFI-
bootable recovery media with the recovery BIOS image. The main
system BIOS will not boot. These pins should be jumpered on 1-2
for normal system operation.

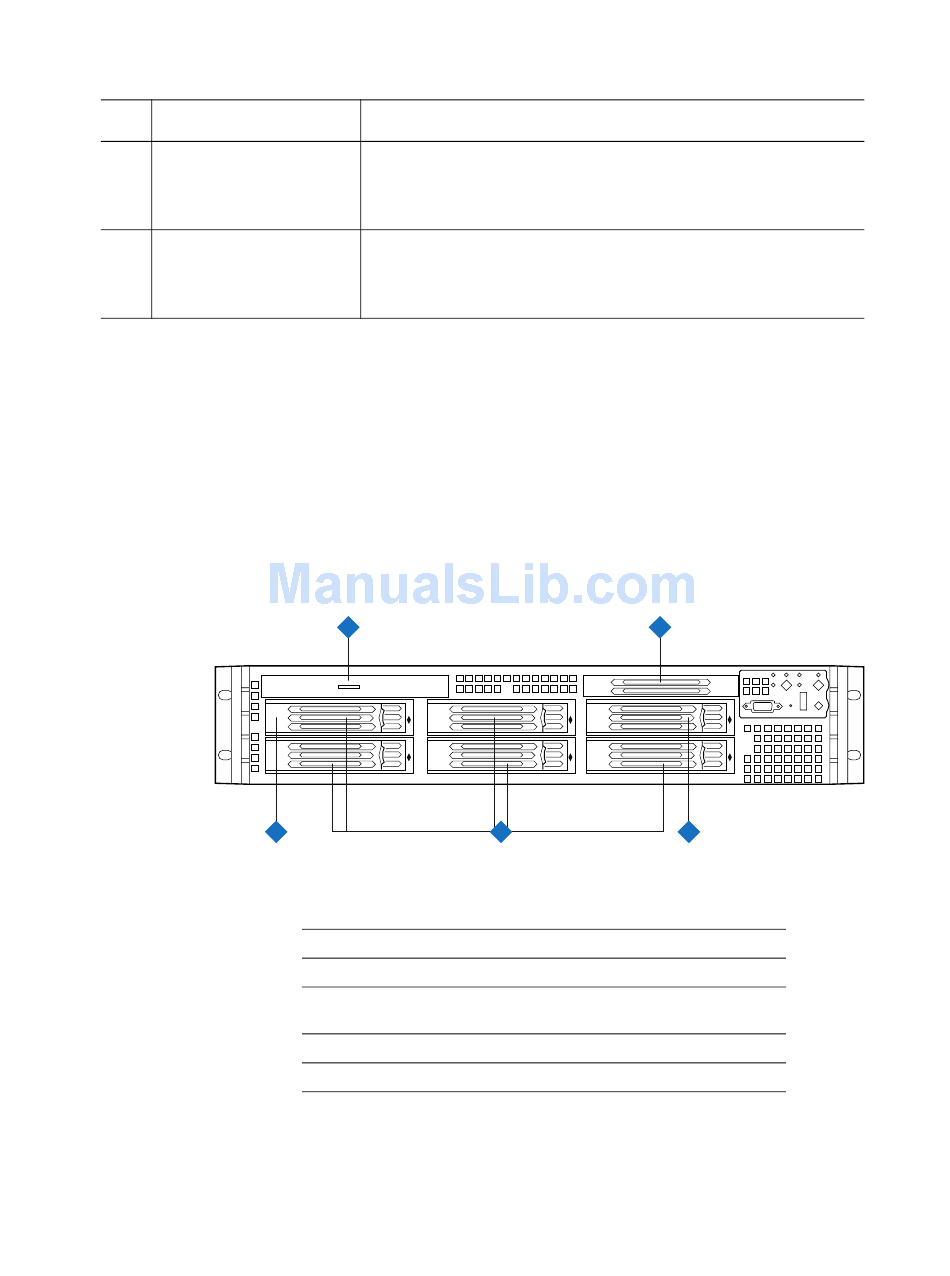

Figure 10. Configuration Jumpers

®

Server System SR2600UR

®
Server System SR2600UR provides locations and hardware for installing hard
A
E
A. Slimline Optical Drive Bay
B. Tape Drive Filler Panel
C. Flex Bay - Sixth Hard Disk Drive or Tape Drive or two fixed
2.5 inch Hard Disk Drives (Optional)
D. Hard Disk Drive Bays
E. Hard Disk Drive to Floppy Drive Conversion Bay (Optional)

Figure 11. Optional Peripherals

Jumper Purpose
B
D C
TP02126
21
