3. Slide the sixth HDD bracket into the backplane as shown in
The sixth hard disk drive kit comes with a power cable and two SATA cables.
Cabling for the sixth hard drive varies depending on which midplane you have in
your system.
4. Depending on the midplane installed in your system, do one of the following:
If you have an active midplane in your system, do the following:
a. Install one end of the power cable to the power connector on the backplane and
b. Install one end of the short SATA cable to the SATA connector on the backplane.
c. Install the other end of the short SATA cable to the SATA connector on the sixth
88

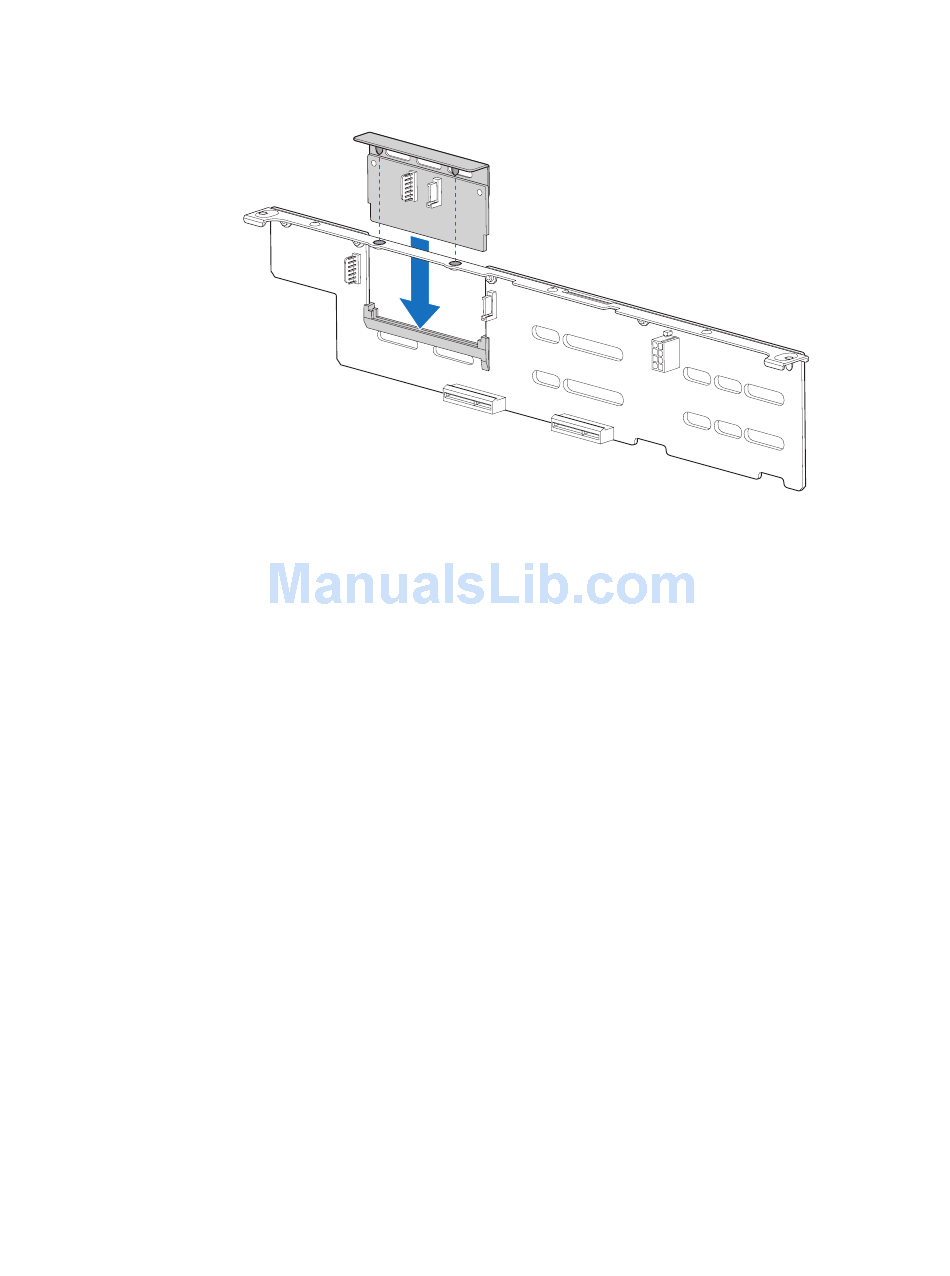

Figure 78. Installing Sixth HDD Bracket

the opposite end to the power connector on the sixth HDD board (see letter "A"
in Figure 79).
HDD board (see letter "B" in Figure 79).
®
Intel Server System SR2600UR/SR2625UR Service Guide
Figure 78.
