Power Supply Bay

Replacing the Power Supply Bay

To replace the power supply bay:
1. Turn off power to the server and unplug the AC power cords from the power source.
2. Remove the bezel, the front access cover, and the rear access cover (pages 28, 29, and 30).
3. Remove all power supply modules (optional).
4. Remove the fan assembly (page 74).
5. Label and disconnect all power and data cables attached to the hot-swap drive bay and the
peripheral bay devices. Lift the cables out of the bottom of the fan bay.
6. At the baseboard, label and disconnect the power cables that go to the power supply bay.
7. Remove the front chassis bracket:
a. Disconnect the cables from the front panel board.
b. Remove the four screws attaching the bracket to the chassis (Figure 39, G).
c. Slide the bracket toward the front of the chassis.
d. Lift the bracket up and clear of the chassis.
A Locking tab
B Standby LEDs
C Retaining screw, power supply bay
D Captive screw, power supply module
8. Remove the electronics bay from the main chassis.
9. Remove the AC power cable from the chassis retention clips.
E Power LED, power supply module
F Handle, power supply module
G Screw, front chassis bracket (two each side
of chassis)

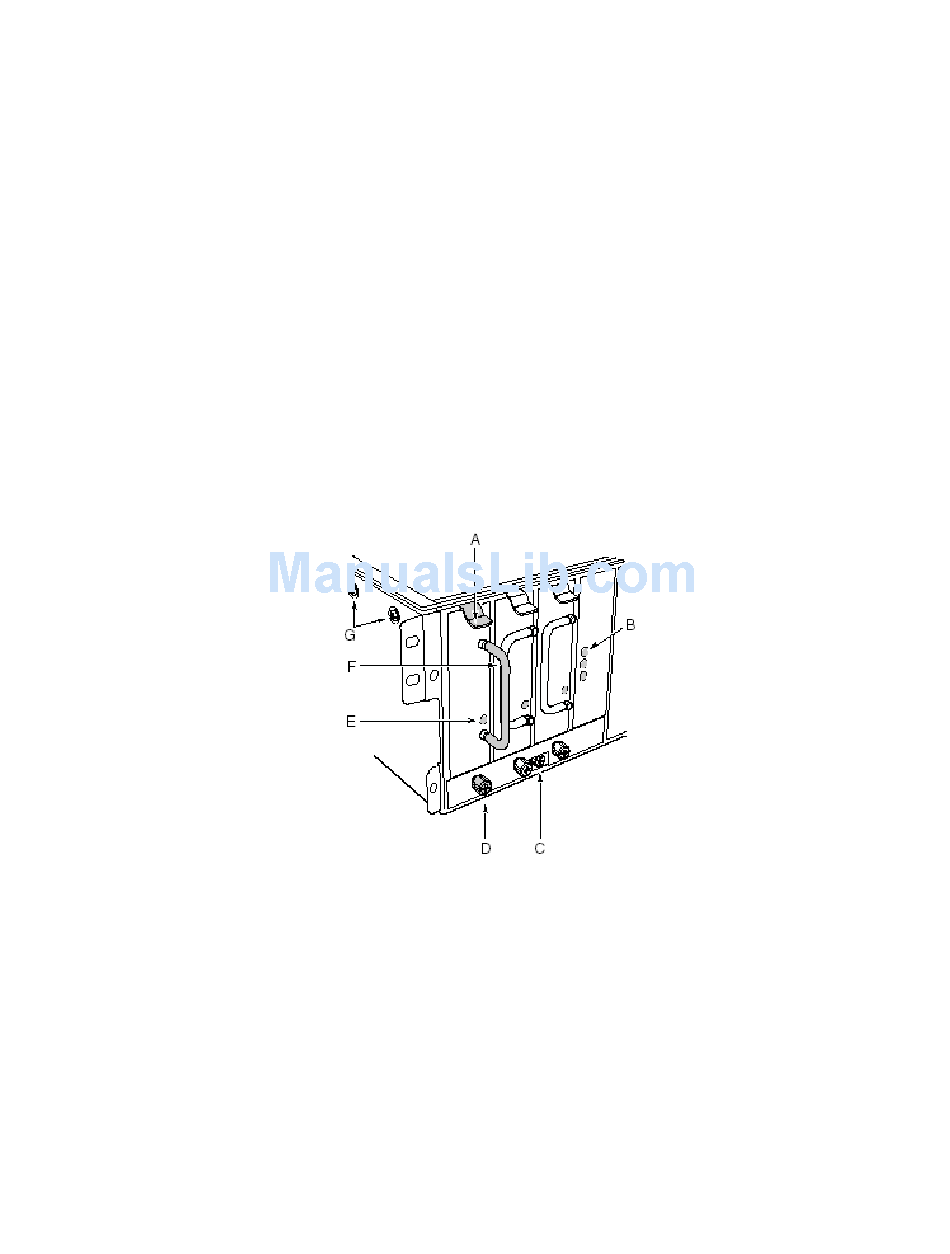

Figure 39. Power Supply Bay

72
