Installing And Removing The Rack Handles; Installing The Rack Handles; Figure 129. Installing A Fan Into The Fixed Fan Module - Intel SR2600UR - Server System - 0 MB RAM Service Manual

5. With the fan oriented correctly, pull out the plastic tabs on both ends (see letter "A"
in
and push all the way until it snaps in place.
6. Reinstall the fixed fan module. For instructions, see steps 8 through 14 in
"Replacing a Fixed Fan Module" on page

Installing and Removing the Rack Handles

Installing the Rack Handles

Align the rack handle with the two holes on the side of the server system and attach the
rack handle to the server system with two screws as shown in
136
Figure 129) and insert the fan into the fan module (see letter "B" in

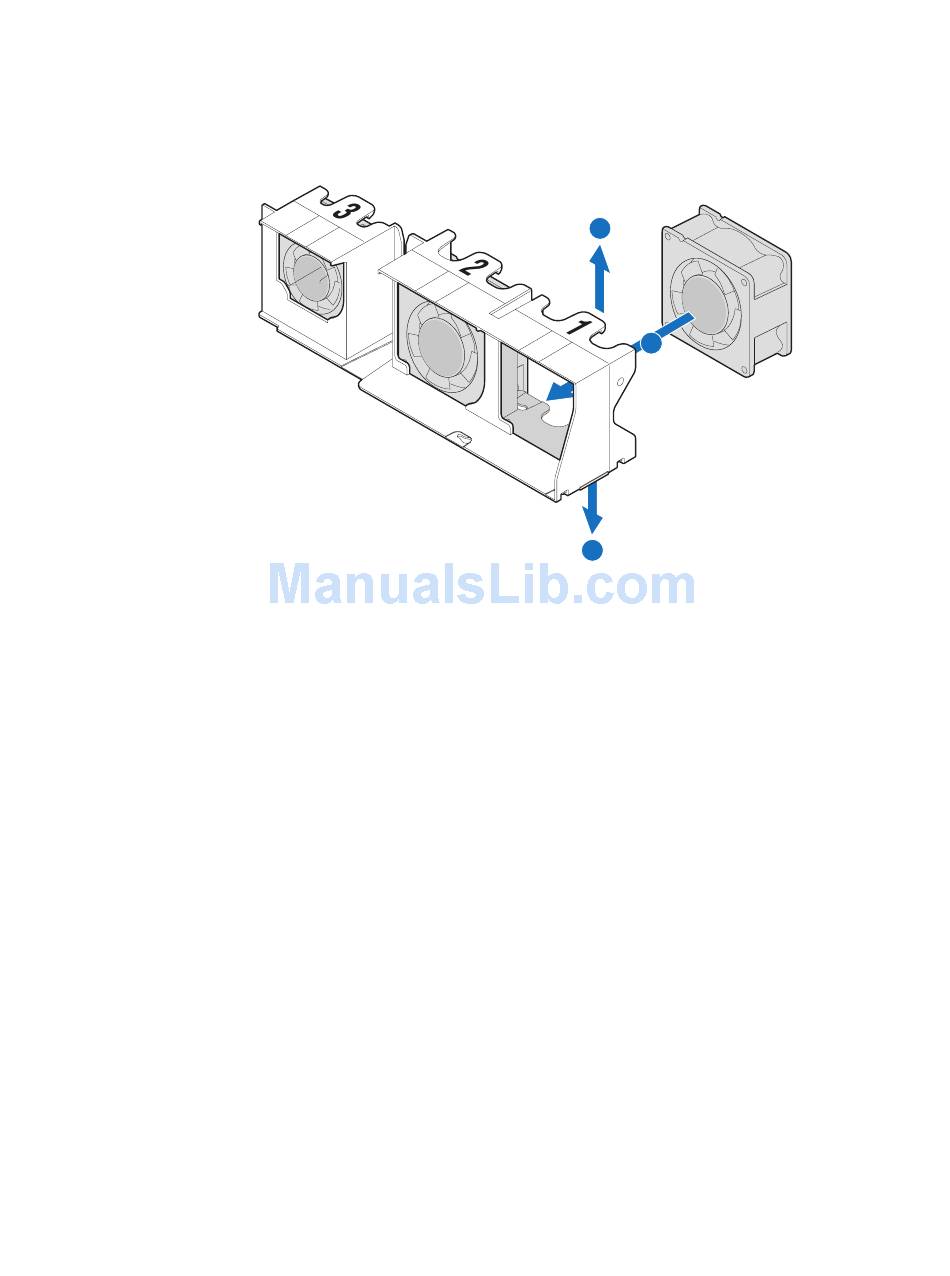

Figure 129. Installing a Fan into the Fixed Fan Module

2
A
A
130.
®
Intel Server System SR2600UR/SR2625UR Service Guide
Figure
B
AF003028
Figure 130.
129),
