4. Connect the 4-pin tape power cable to the tape drive.
5. Connect the other end of the power cable to the power connector on the back side of
the backplane.
6. Connect one end of the data cable to the tape drive.
7. Connect the other end of the data cable to the SATA connector on the server board
or the SAS/SATA connector on the SAS/SATA add-in PCI card.
Installing a Sixth Hard Disk Drive (Intel
SR2600UR only)
To install a sixth hard disk drive into Intel
system must meet the following requirements:
•
You must purchase the sixth SAS/SATA Hard Disk Drive (HDD) kit, order number
ASR2500SIXDRV.
•
You must purchase an additional 3.5 inch hard disk rive.
After purchasing the sixth SAS/SATA Hard Disk Drive (HDD)kit and the 3.5 hard disk
drive, use the following instructions to install the hard drive.
86

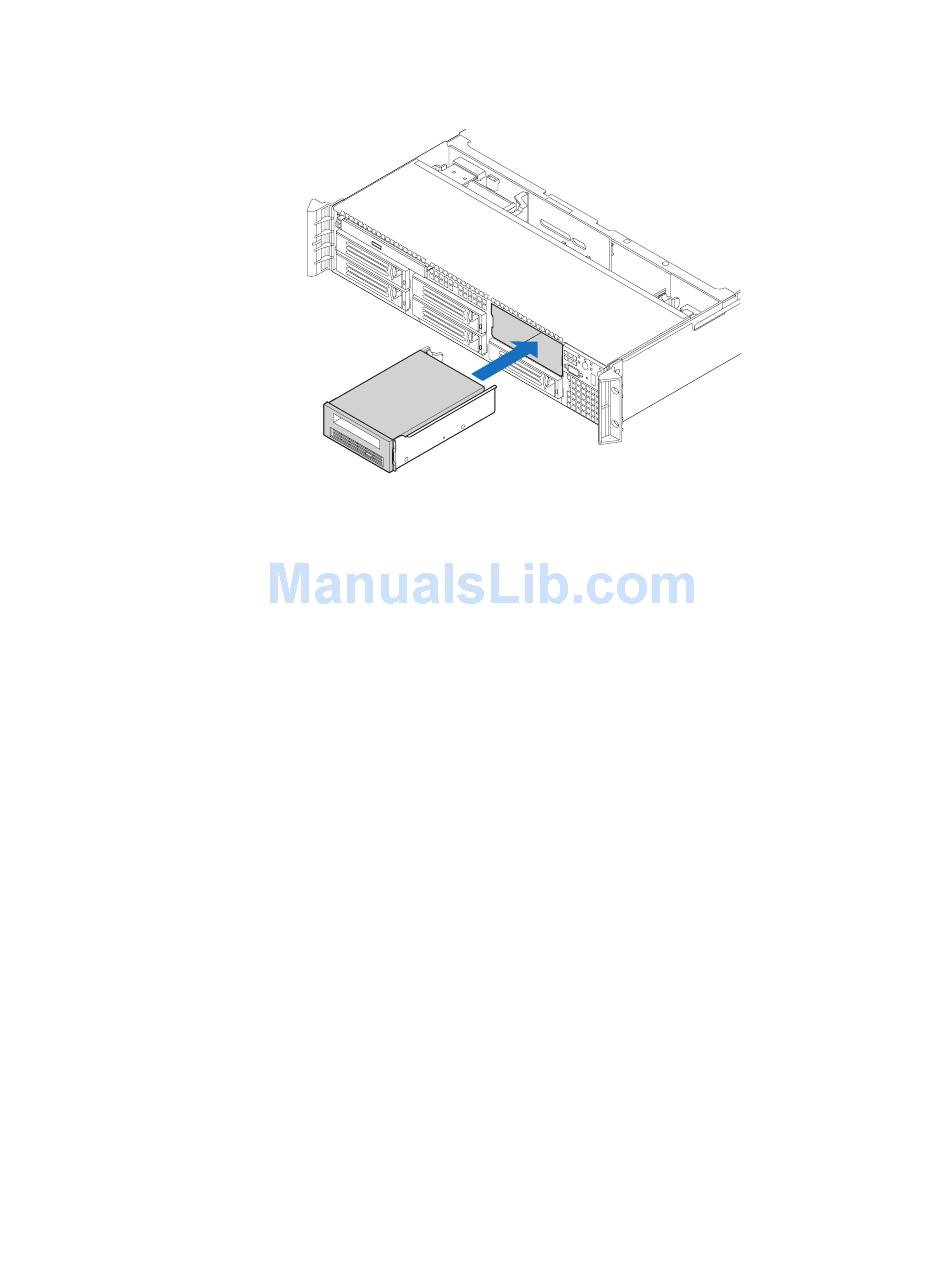

Figure 75. Installing Tape Drive Assembly into the Server System
®
Server System SR2600UR/SR2625UR, your
®
Intel
Server System SR2600UR/SR2625UR Service Guide
AF000033
®
