Server System SR2600UR/SR2625UR Service Guide
POST Code Diagnostic LEDs
Status LED
CPU 1 Fan Fault LED
CPU 2 Fan Fault LED
CPU 2 DIMM Fault LEDs
®

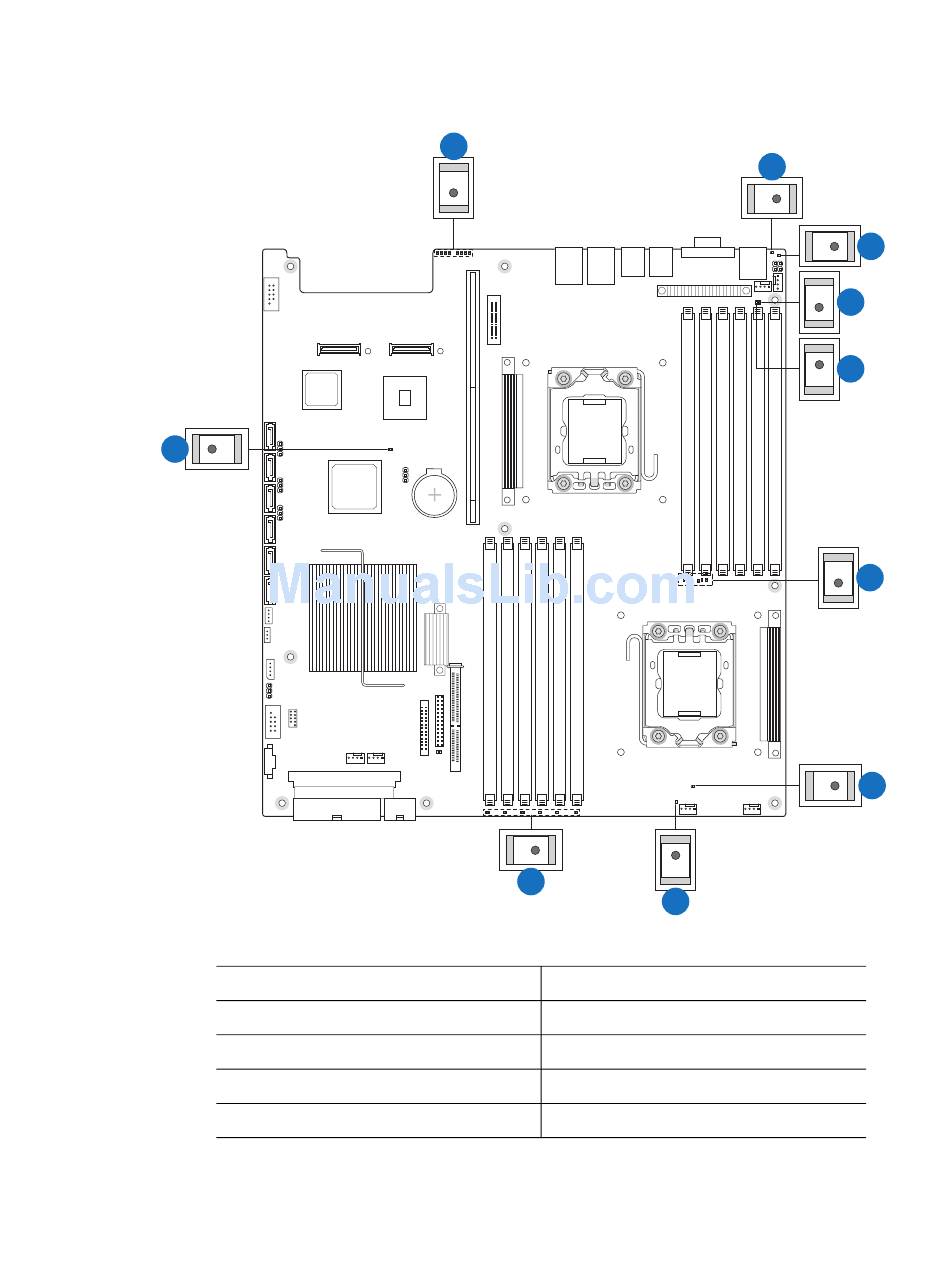

Figure 5. Intel
Light-Guided Diagnostic LEDs - Server Board
A
I
J
B.
System Identification LED
D.
Memory 1 Fan Fault LED
F.
CPU 1 DIMM Fault LEDs
H.
Memory 2 Fan Fault LED
J.
5V Standby LED
B
D
E
H
AF002833
C
F
G
15
