Figure 20. Hot-Swap Sas/Sata Backplane Components (Rear View) - Intel SR2600UR - Server System - 0 MB RAM Service Manual
Service guide
Hide thumbs
Also See for SR2600UR - Server System - 0 MB RAM:
- Quick start manual (1 page) ,
- Service manual (228 pages)
Table of Contents
Advertisement
A.
Power Connector (for sixth hard drive or
tape drive or 2.5 inch fixed drives)
B.
SAS/SATA Connector (for sixth hard drive
or SATA tape drive)
®
Intel
Server System SR2600UR/SR2625UR Service Guide
A

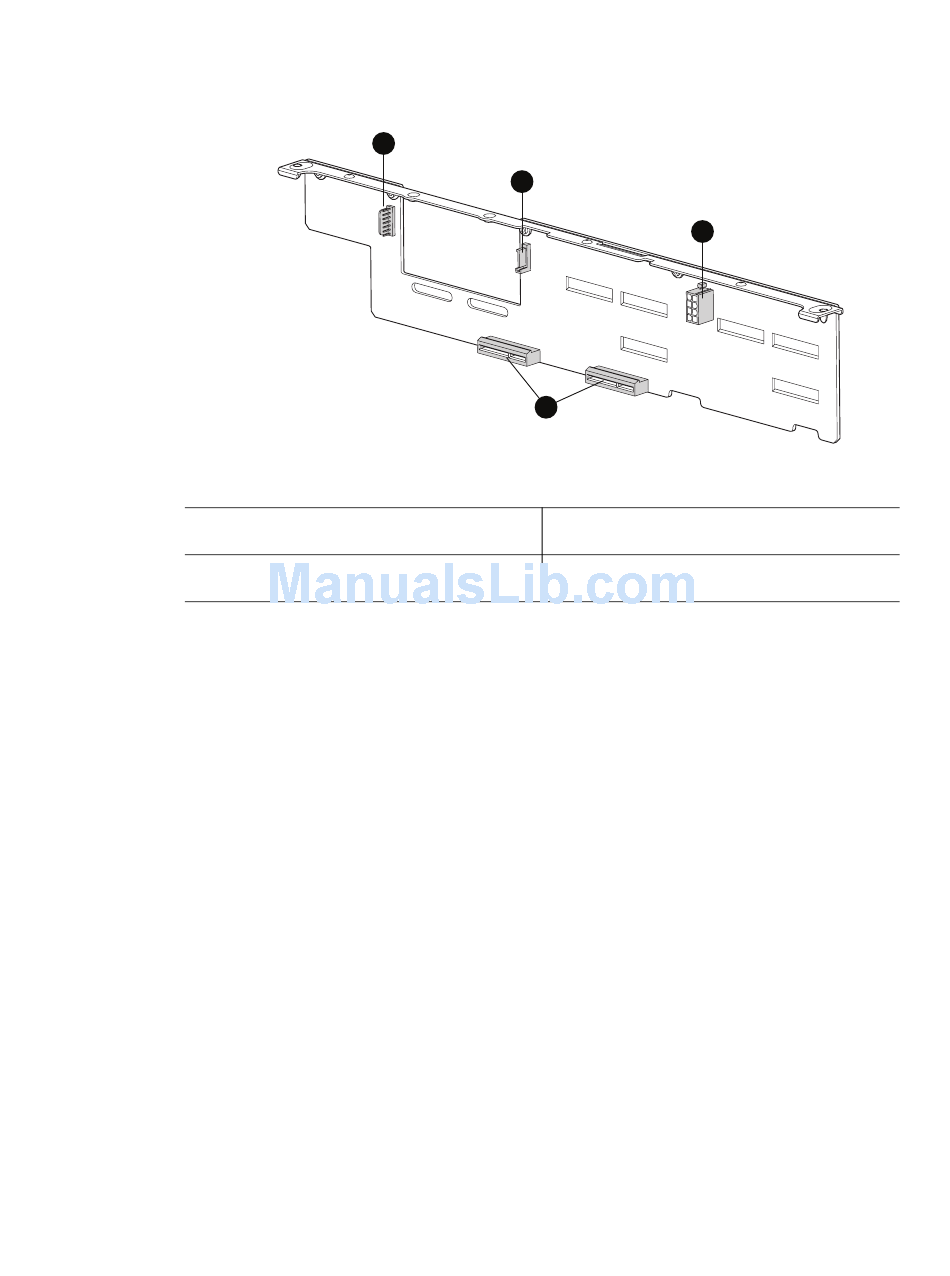

Figure 20. Hot-Swap SAS/SATA Backplane Components (Rear View)
B
D
C.
Power Connector
D.
Midplane Connectors
C
AF002780
