Figure 96. Removing The Bridge Board From The Server System - Intel SR2600UR - Server System - 0 MB RAM Service Manual

a. Open the bridge board connector retention clips on the midplane and the server
b. Disconnect the bridge board from the connector on the midplane and server
c. Slide the board out of the fan assembly (see letter "C" in
6. Remove the fan module. For instructions, see
page
7. Hold the midplane board only by the edges and slide the midplane board in the
direction shown to release it from the backplane (see letter "A" in
®
Intel Server System SR2600UR/SR2625UR Service Guide
board (see letter "A" in
board and lift the bridge board straight up (see letter "B" in

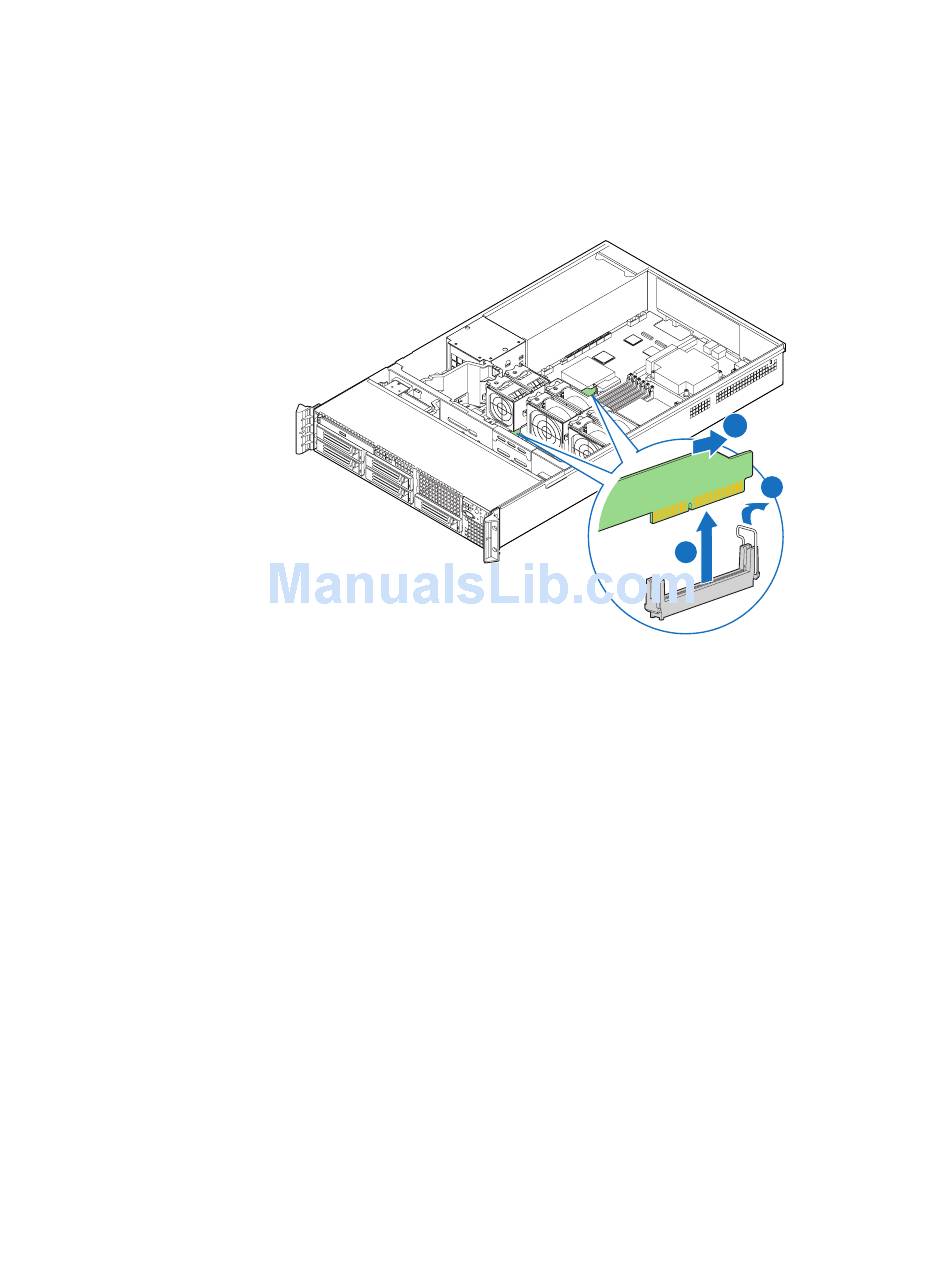

Figure 96. Removing the Bridge Board from the Server System

127.
Figure 96).
"Replacing a Fan Module" on
Figure 96).
Figure 96).
C
A
B
AF002971
Figure 97).
103
