TIP
A DIMM is keyed with a notch so that it fits in only one direction. To
avoid damaging the DIMM, DO NOT force a DIMM into a socket.
3. Firmly insert the DIMM into the socket until the retaining clips snap back into place and
the DIMM is properly seated.
2.3.4

Removing a DIMM

Follow these steps to remove a DIMM:
1. Simultaneously press the retaining clips on each side of the DIMM outward to
disengage the DIMM from the socket.
NOTE: Support the DIMM lightly with your fingers when pressing the retaining clips. The DIMM
might get damaged when it flips out with extra force.
2. Remove the DIMM from the socket.
®
Intel Server System SR1670HV Service Guide

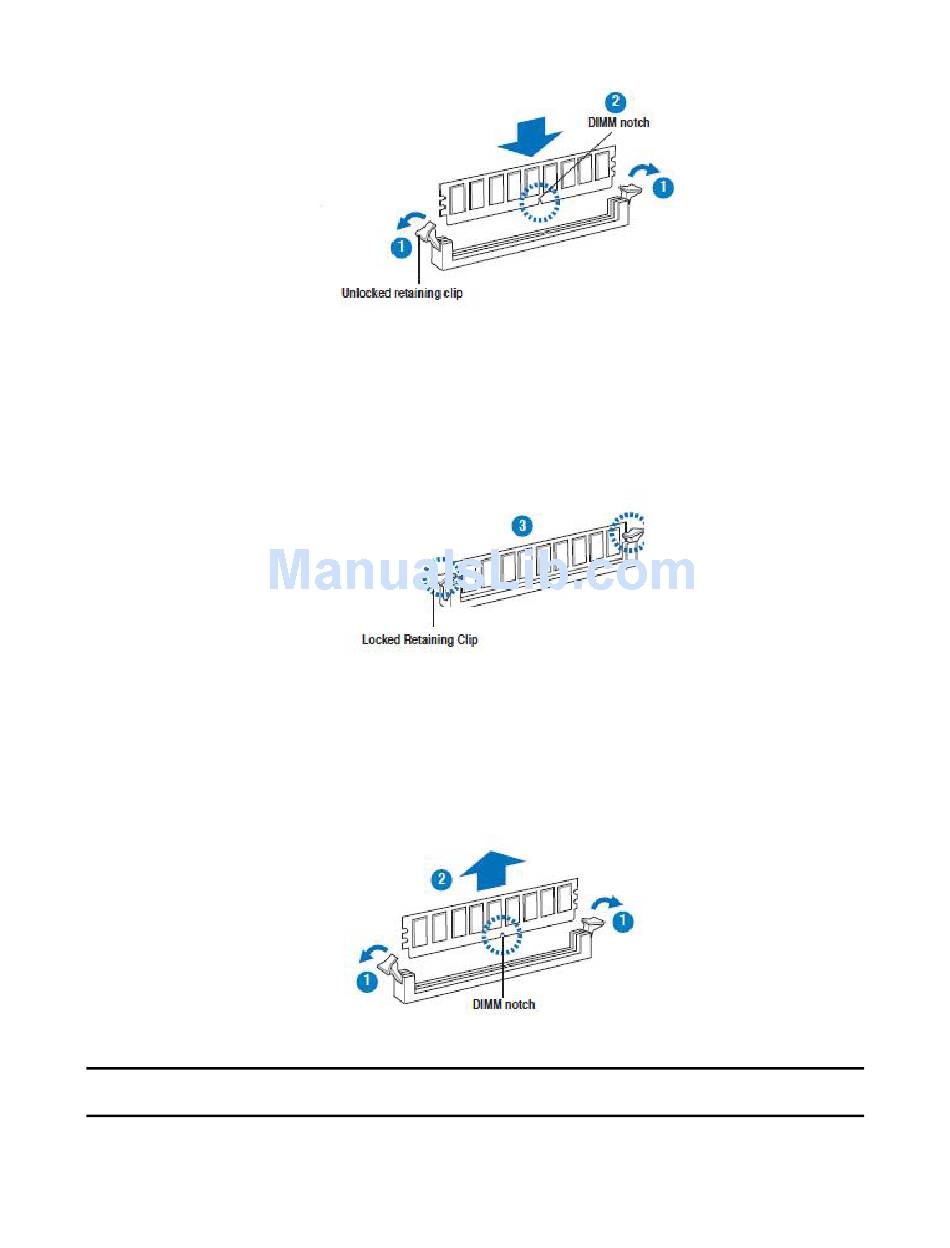

Figure 21. Unlocked Retaining Clips

Figure 22. Locked Retaining Clips

Figure 23. DIMM Notch

Hardware Setup
19
