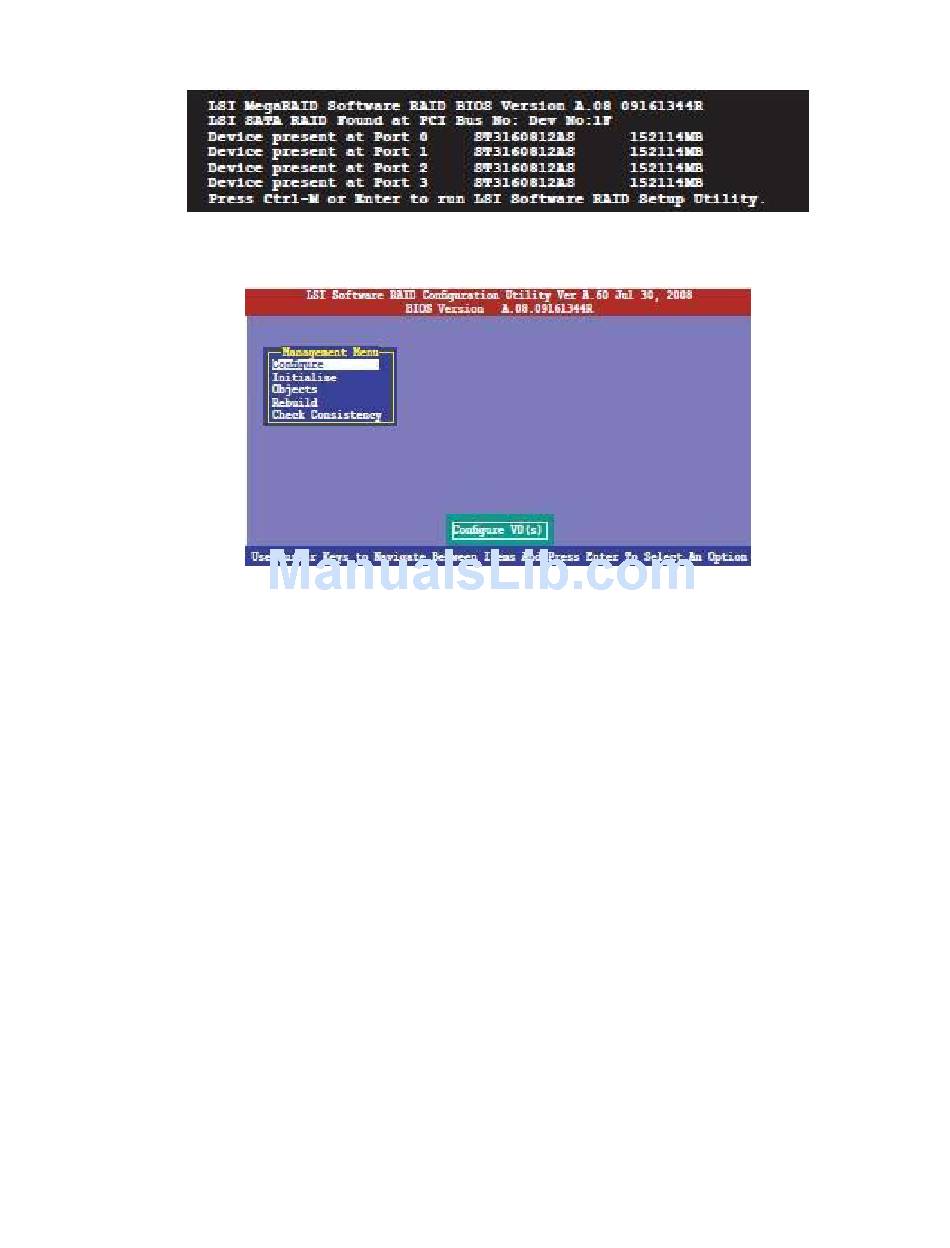

Figure 120. POST screen showing LSI* MegaRAID Option ROM display

The following screen displays:
At the bottom of the screen is the legend box. The keys on the legend box allow you to
navigate through the setup menu options or execute commands. The keys on the
legend box vary according to the menu level.
3. Select Configure.
7.3.1.2 Configuring a RAID Set
The LSI* Software RAID Configuration Utility allows you to create a RAID 0, RAID 1, or
RAID 10 set using either of two options from the Configuration Menu: Easy and New.
Both options allow you to configure parameters for the RAID Set being created. The
difference between the two is the New Configuration gives you the additional option to
define the size and number of virtual drives to create within each RAID Set.
Use the following process to create a RAID set:
1. Select either the Easy Configuration or NEW Configuration from the Configuration
Menu and press <Enter>.
®
Intel Server System SR1670HV Service Guide

Figure 121. Utility Main Window

Embedded SATA RAID
83
