6.3.6.3 Boot Settings Configuration
Options in this sub-menu allow you to configure how the system should operate during the
system boot process.
6.3.6.3.1
Enabling this item allows the BIOS to skip some power-on self tests while booting, to
decrease the time needed to boot the system. When set to [Disabled], BIOS performs all
the POST items.
Configuration options: [Disabled] [Enabled]
6.3.6.3.2
When enabled, this option displays the full Logo Splash Screen during the boot process.
Configuration options: [Disabled] [Enabled]
6.3.6.3.3
Allows you to set the display mode for Options ROM.
Configuration options: [Force BIOS] [Keep Current]
6.3.6.3.4
Allows you to select the power-on state for the NumLock key.
Configuration options: [Off] [On]
6.3.6.3.5
When set to [Enabled], the system waits for the <F1> key to be pressed when a POST
error occurs.
Configuration options: [Disabled] [Enabled]
6.3.6.3.6
When set to [Enabled], the system displays the message "Press F2 to run Setup" during
POST.
®
Intel Server System SR1670HV Service Guide

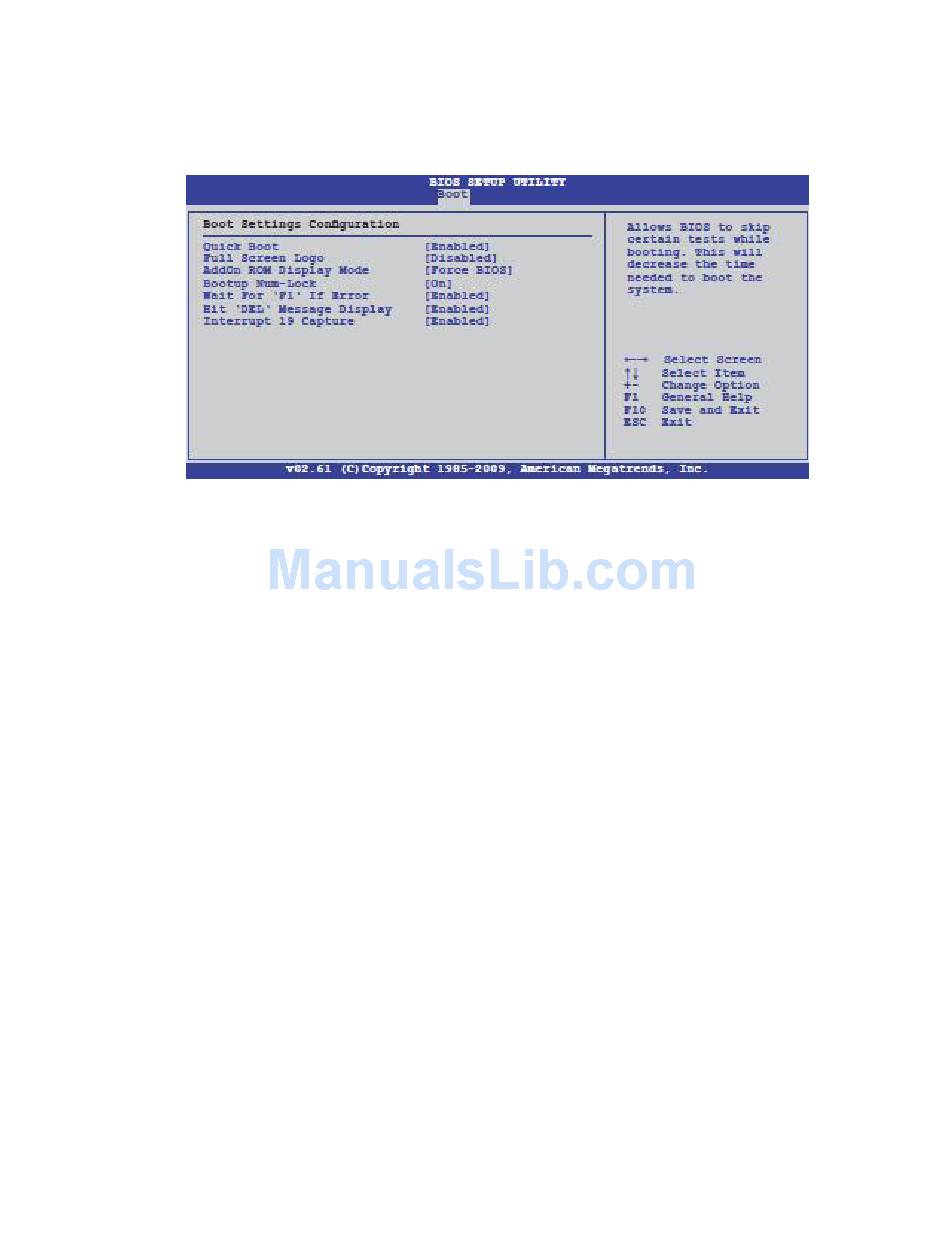

Figure 115. Boot Settings Configuration Menu

Quick Boot [Enabled]
Full Screen Logo [ENABLED]
AddOn ROM Display Mode [Force BIOS]
Bootup Num-Lock [On]
Wait For 'F1' If Error [Enabled]
Hit 'F2' Message Display [Enabled]
BIOS Updates and Configuration
77
