BIOS Updates and Configuration
6.3.4.9.3
Allows you to select the onboard option ROM priority. Configuration options: [Normal]
[High]
6.3.4.9.4
Allows you to configure the boot mode for onboard LAN ports 1 and 2.
Configuration: [Disabled] [PXE] [iSCSI]
6.3.4.10 Power On Configuration Sub-Menu
6.3.4.10.1
When set to [Power Off], the system goes into off state after an AC power loss. When set
to [Power On], the system will reboot after an AC power loss. When set to [Last State], the
system goes into either off or on state, whatever the system state was before the AC
power loss.
Configuration options: [Power Off] [Power On] [Last State]
6.3.4.10.2
When set to [Enabled], the system enables RI to generate a wake event while the
computer is in Soft-off mode.
Configuration options: [Disabled] [Enabled]
6.3.4.10.3
When set to [Enabled], the system enables PME to generate a wake event while the
computer is in Soft-off mode.
Configuration options: [Disabled] [Enabled]
6.3.4.10.4
Allows you to enable or disable RTC to generate a wake-up event.
Configuration options: [Disabled] [Enabled]
68
Onboard Option ROM Priority [High]
Onboard LAN1/2 Boot [PXE]

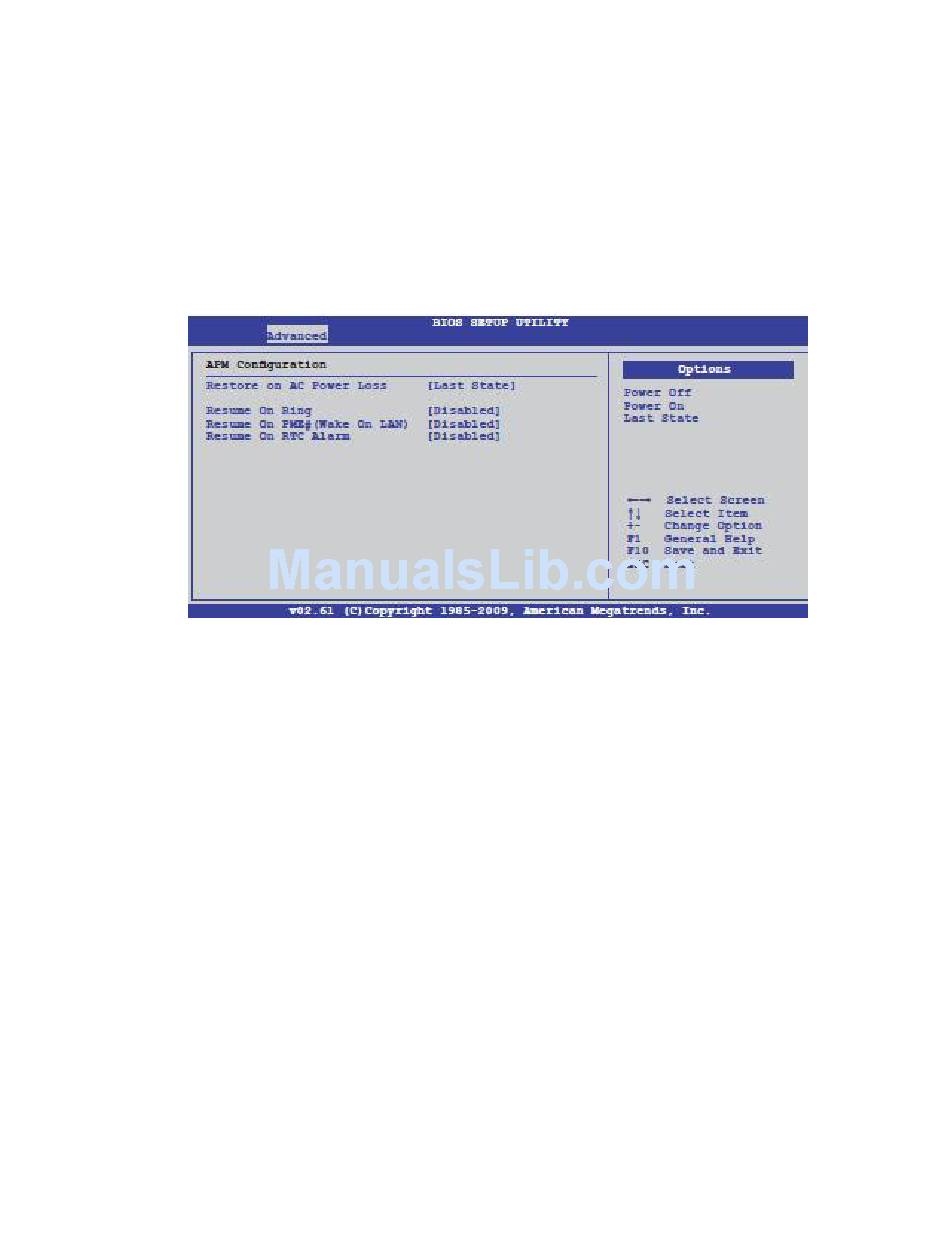

Figure 102. Power On Configuration Menu

Restore on AC Power Loss [Last State]
Resume On Ring [Disabled]
Resume On PME# (Wake On LAN) [Disabled]
Resume On RTC Alarm [Disabled]
®
Intel Server System SR1670HV Service Guide
