Memory Support

Supported memory follows the DDR3 specification and meets the following characteristics:
800 MHz, 1066 MHz or 1333 MHz operating frequencies
Single-rank (SR), dual-rank (DR), and quad-rank (QR)
Registered DIMM (RDIMM) or Unbuffered DIMM (UDIMM)
RDIMMs must be ECC only
UDIMMs can be ECC or non-ECC and can be mixed within a common
configuration
The Channel Independent mode is the only memory RAS mode that supports
non-ECC DIMMs.
The presence of a single non-ECC UDIMM results in the disabling of ECC
functionality.
RDIMMs and UDIMMs cannot be mixed within a common system memory
configuration
The following table shows the maximum memory amounts using RDIMM type memory:
NOTE: Due to thermal requirements needed to support Quad Rank x4 DDR3 DIMMs, the Intel
Server System SR1670HV does not support this memory type.
16

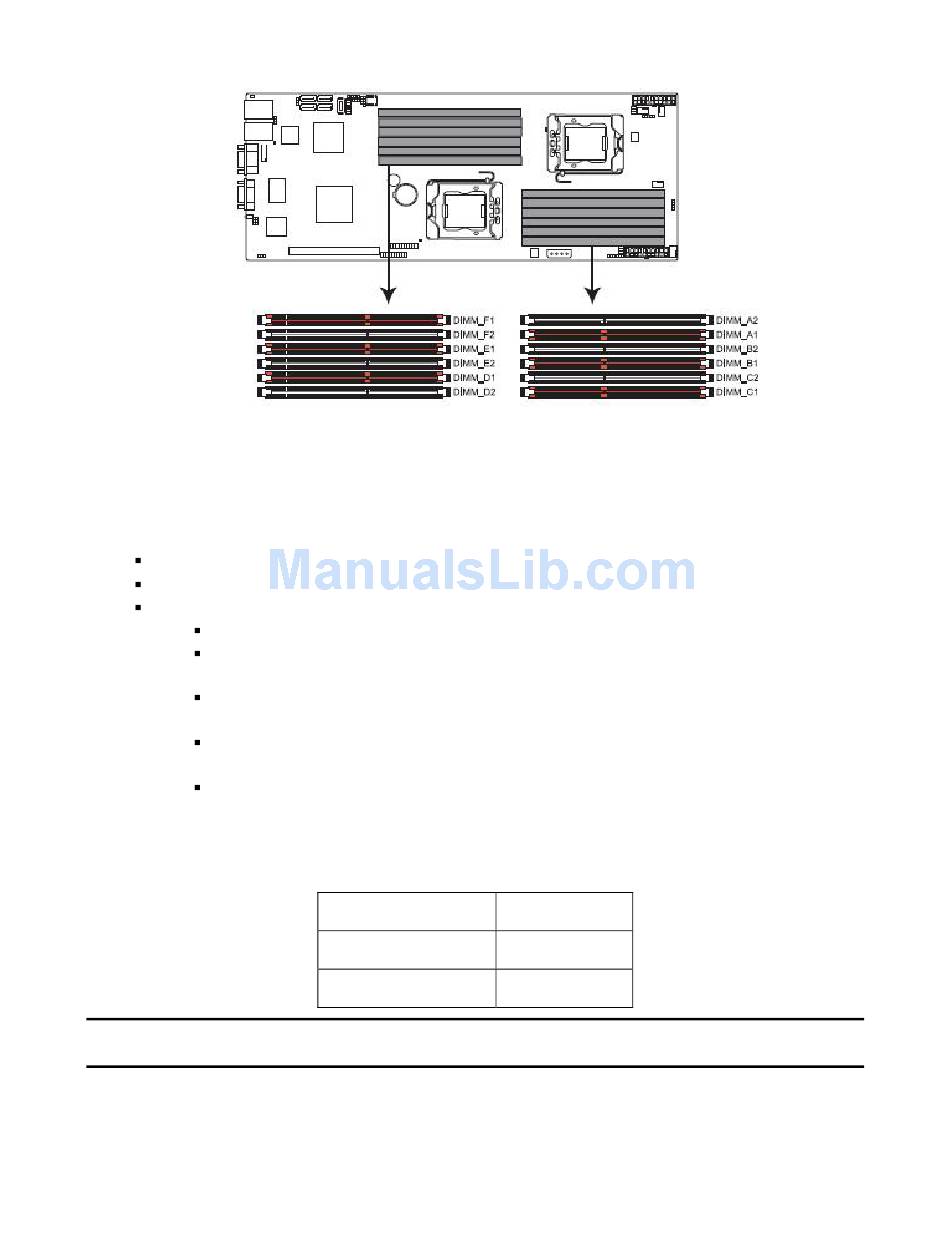

Figure 20. DDR3 DIMM Sockets Location

Table 7. Maximum Memory Allocation Using RDIMMs

Single Rank RDIMMs
800 MHz and 1066 MHz
Dual Rank RDIMMs
800 MHz and 1066 MHz
Quad Rank RDIMMs (1)
800 MHz only
48 GB
(12x 4GB DIMMs)
96 GB
(12x 8GB DIMMs)
96 GB
(12x 8GB DIMMs)
®
Intel Server System SR1670HV Service Guide
®
