4. Select fd0 using the <tab> key when asked to select the driver disk source. Press
<Tab> to move the cursor to OK, and then press <Enter>.
5. Insert the Red Hat* Enterprise RAID driver disk to the floppy disk drive, select OK, and
then press <Enter>.
6. When asked if you will load additional RAID controller drivers, select No, and then
press <Enter>.
7. Follow the onscreen instructions to continue the operating system installation.
®
Intel Server System SR1670HV Service Guide

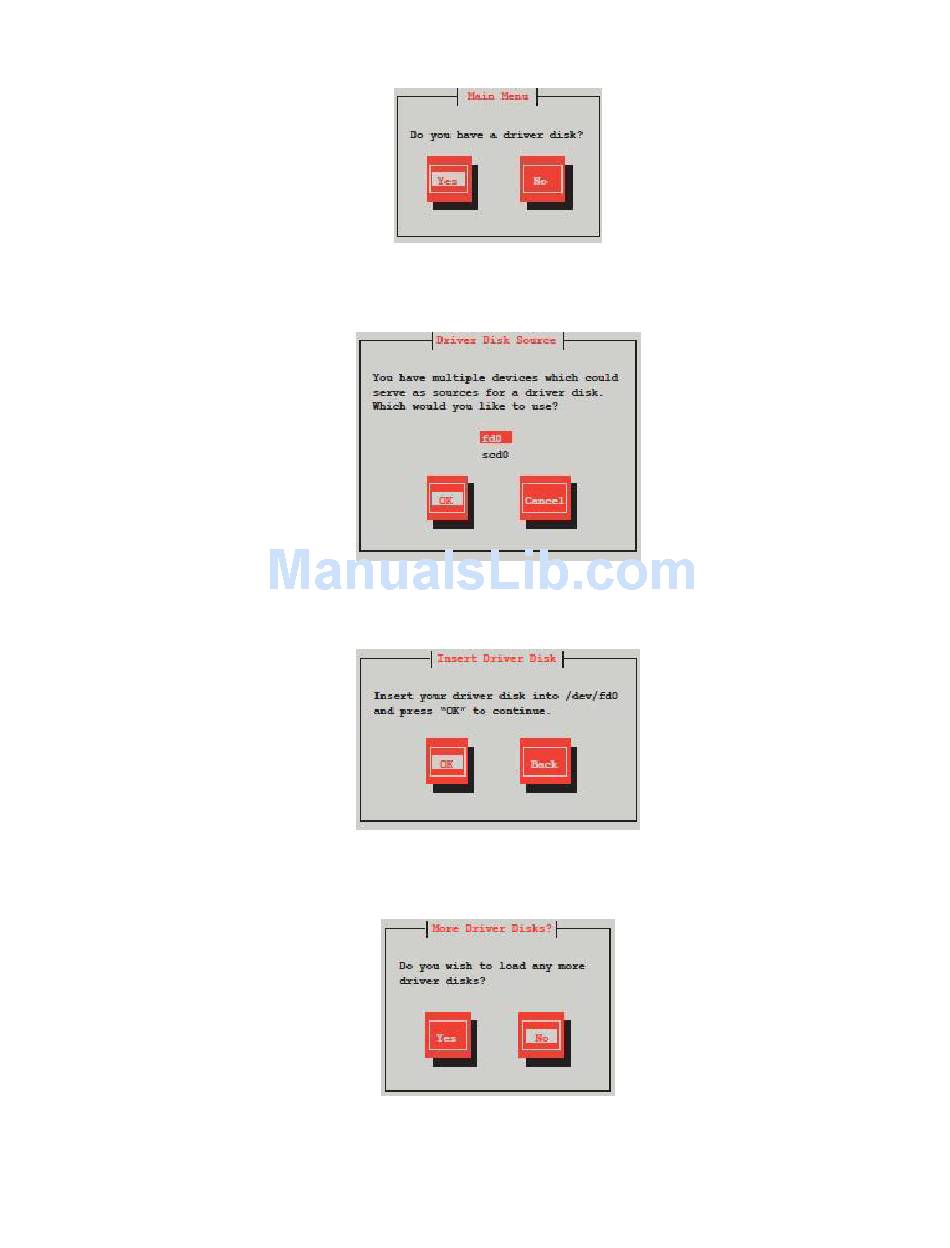

Figure 146. Driver Disk Y/N Screen

Figure 147. Driver Disk Source

Figure 148. Insert Driver Disk Screen

Figure 149. More Driver Disks? Screen
