Server: Provides sub-menus used to view/change IPMI and Remote Connectivity options.
Boot: Provides sub-menus used to view/change system boot options and system security.
Exit: Provides utility exit options and an option to load BIOS option default settings.
6.3.2.2 Navigation Keys
At the bottom-right corner of a menu screen are the navigation keys for that particular
menu. Use the navigation keys to select items in the menu and change the settings.
6.3.2.3 Menu Items
Each menu option from the Menu Bar displays information, options, and sub-menus
appropriate to the highlighted Menu Bar option. Use the up and down arrow keys to
navigate to the displayed options and sub-menus. A scroll bar displays on the right side of
a menu screen when there are items that do not fit on the screen.
Informational fields are colored in gray. These fields are for informational purposes only
and cannot be changed.
Option Fields are colored in blue. Once highlighted, you can change the option to the
preferred settings by typing in the change or pressing the <Enter Key> which may bring up
a pop-up window, allowing you to select the preferred setting.
Sub-menu fields are colored in blue and are identified by a solid blue triangle before each
sub-menu field descriptor. Highlight the sub-menu you want to view and press the <Enter>
key to display the sub-menu screen.
6.3.2.4 General Help
At the top right corner of the menu screen is a brief description of the selected item.
6.3.3

Main Menu

Upon entering the BIOS Setup Utility, the Main menu screen displays, providing options to
view basic system information and view/configure any SATA devices detected.
®
Intel Server System SR1670HV Service Guide

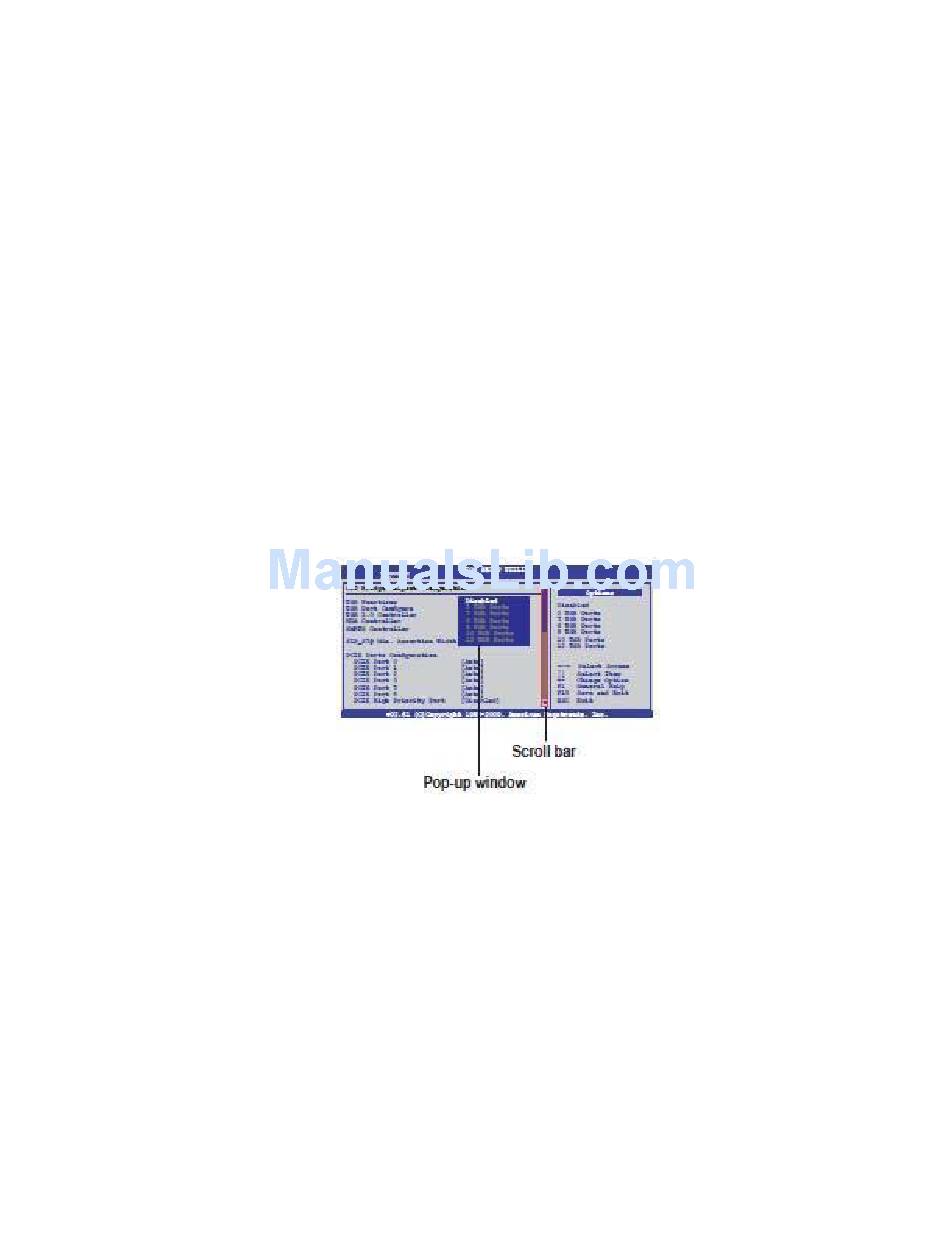

Figure 82. Pop-Up Window

BIOS Updates and Configuration
51
