Hardware Setup
2.4 Installing a PCI Express* Add-In Card to the Riser
Bracket
The system comes with a riser card bracket for each installed server node. To install a PCI
Express* add-in card, you must remove the bracket assembly from the server using the
following procedure:
To install a PCI Express* add-in card:
1. Firmly hold the riser card bracket, and then pull it up to detach it from the riser slot on
the server board.
2. Place the riser card bracket on a flat and stable surface, and then remove the screw
from the slot bay.
3. Install a PCI Express* add-in card to the bracket as shown, and then secure the card
with a screw.
4. Press the riser card bracket until the golden connectors completely fit the slot and the
bracket aligns with the rear panel.
20

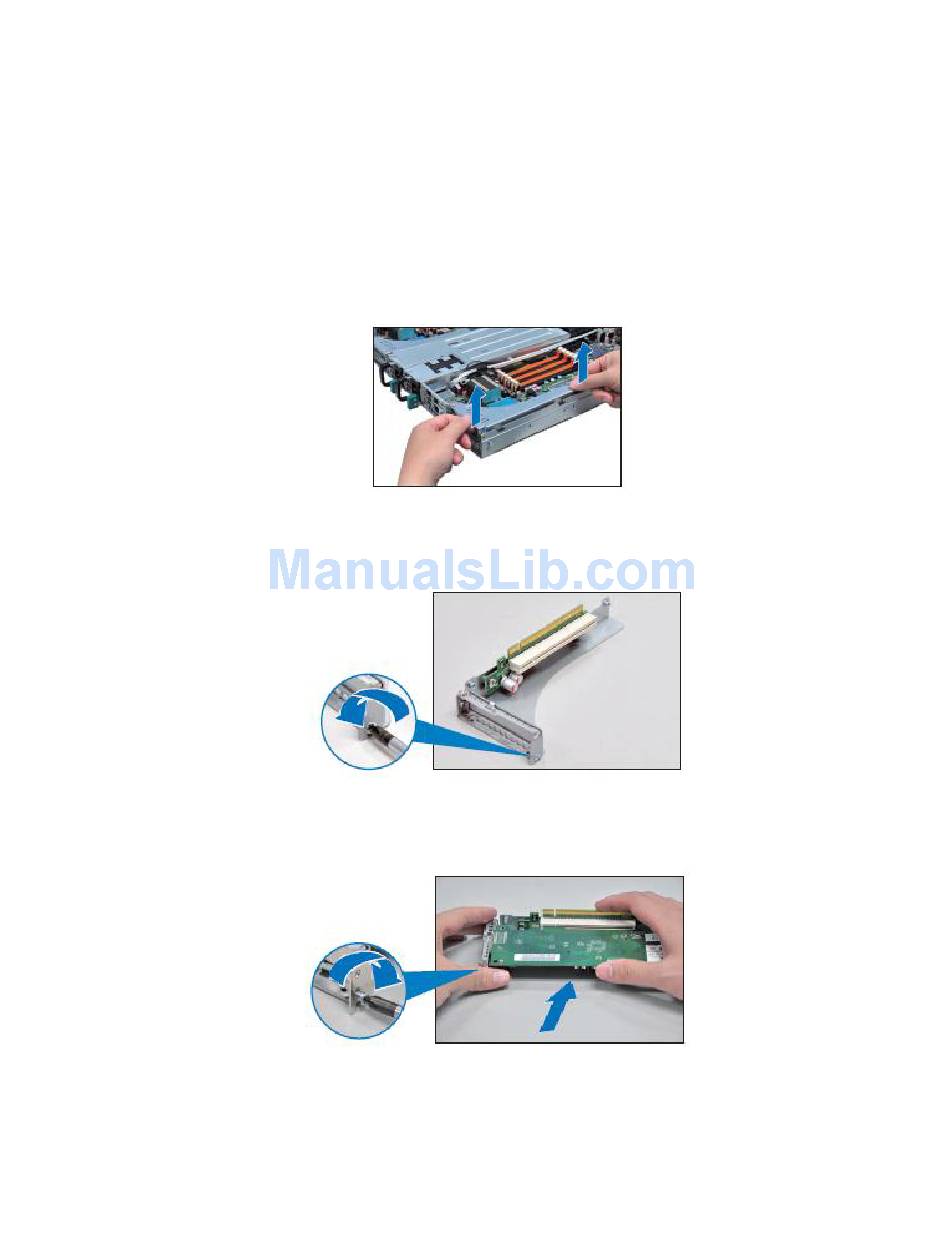

Figure 24. Riser Card Bracket
Figure 25. Removing the Screw from Slot Bay
Figure 26. PCI Express* x 16 Card
®
Intel
Server System SR1670HV Service Guide
