Product Introduction

Table 3. Server Node Connectors and Components Descriptions

Description
A Rear I/O Connectors
B BMC Management Module connector
C SATA Ports 1-4
D Internal USB(4) 2.0 Port
E CPU 2 DIMM Slots (Slots D1 – F2)
F CPU 1 - LGA 1366 Socket
G Power Supply SMBus - 2x3 Pin Header
H Main Power Connector – 20 pin
I System Fan Connectors
J USB(3) 2.0 - 1x5 Pin Header

1.6 System LED Information

1.6.1

Front Control Panel LEDs

LED
Power LED
HDD Activity
Message LED
System ID LED
LAN LEDs
6
K CPU 1 DIMM Slots (Slots A1– C2)
L Peripheral Drive Power Connector – 4 pin
M CPU 2 - LGA 1366 Socket
N CMOS Battery
O Auxilary Front Panel Header
P Front Panel Header
Q X16 GEN 2 PCI Express* Riser Card Slot

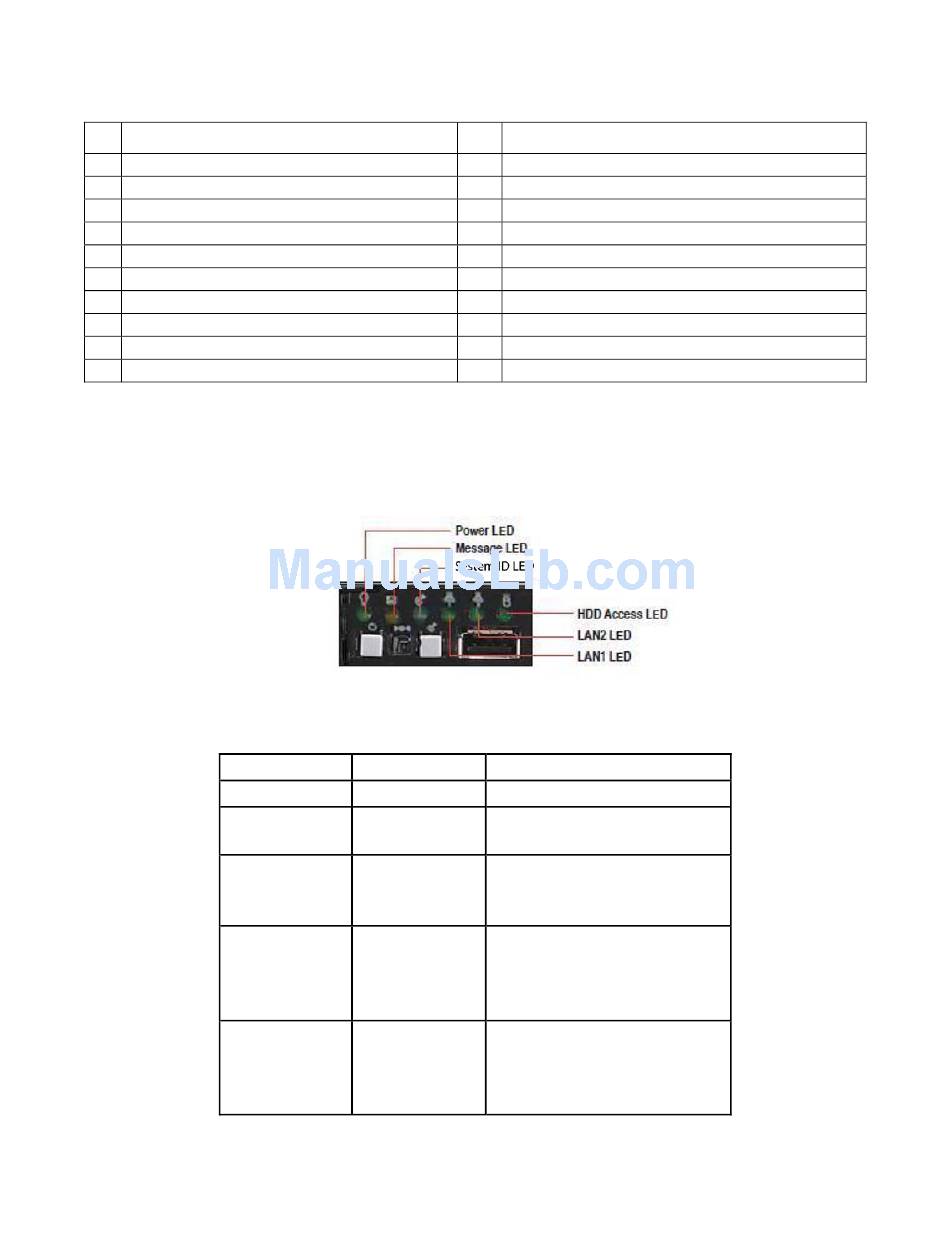

Figure 5. Front Control Panel LEDs

Table 4. Front Panel LEDs Descriptions

Display Status Description
ON System power ON
OFF No activity
Blinking Read/write data into the HDD.
OFF System is normal; no incoming
event.
Indicates a HW monitor event.
Blinking
OFF Normal status
ON
Location switch is pressed (Press
the location switch again to turn
off). BMC reset in progress when
re-plug Power cord
OFF No LAN connection
Blinking LAN is transmitting or receiving
data.
LAN connection is present.
ON
Description
®
Intel Server System SR1670HV Service Guide
