2. Enter a name for the RAID set and press <Enter>.
3. When the RAID Level option is selected, press the up/down arrow key to select a
RAID level to create, and then press <Enter>.
4. When the Disks option is selected, press <Enter> to select the hard disk drives you
want to include in the RAID set. The SELECT DISKS screen appears.
5. Use the up/down arrow keys and <Space> key to select each drive to include in the
RAID set.
6. Press <Enter> after completing your selections.
7. Use the up/down arrow key to select the stripe size for the RAID set (for RAID 0, 10
and 5 only), and then press <Enter>.
The available stripe size values range from 4 KB to 128 KB. The following are typical
values:
RAID 0: 128KB
RAID 10: 64KB
RAID 5: 64KB
When the
Capacity option is selected, enter the RAID volume capacity you want and
press <Enter>. The default value indicates the maximum allowed capacity.
When the Create Volume option is selected, press <Enter>. The following warning
message displays:
®
Intel Server System SR1670HV Service Guide

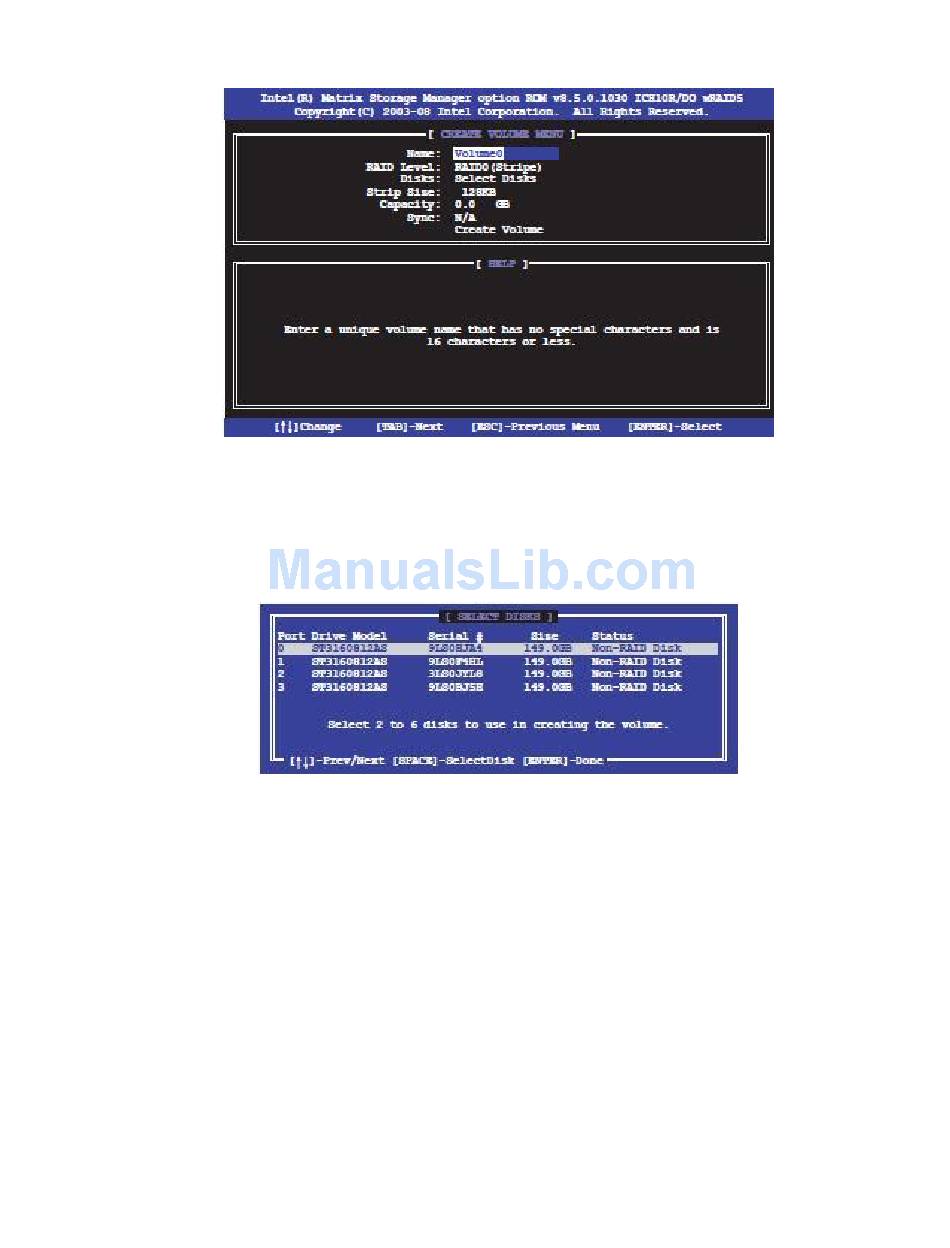

Figure 136. Create RAID Volume Menu

Figure 137. Select Disks Screen

Embedded SATA RAID
