Figure 51. Connected Cables And Backplane Expose; Figure 52. Front Panel Cables - Intel SR1670HV - Server System - 0 MB RAM Service Manual

5. Carefully rotate back and place the connected HDD bay module on top of the
system fan assembly so all connected cables and backplane are exposed.
6. Note the location and connector type of each cable you must disconnect from the
backplane. Disconnect all cables from the backplane and remove the bundled
cables from the latched plastic cable holders.
7. Place the HDD bay module onto a static-free surface.
8. The backplane is fastened to the HDD bay module using 12 screws. Remove all
screws from the backplane.
9. Carefully pull back the backplane to expose the front panel cables connected to
it.
10. Note the location of each of the four front panel cables and disconnect each from
the backplane.
TIP
Label each 8-pin x 16-pin cable pair before disconnecting them from
the backplane. Make sure you reconnect each cable pair to the
correct backplane connectors.
11. Unpack the replacement backplane.
12. Reconnect the front panel cable pairs to the correct connectors on the
backplane.
®
Intel Server System SR1670HV Service Guide

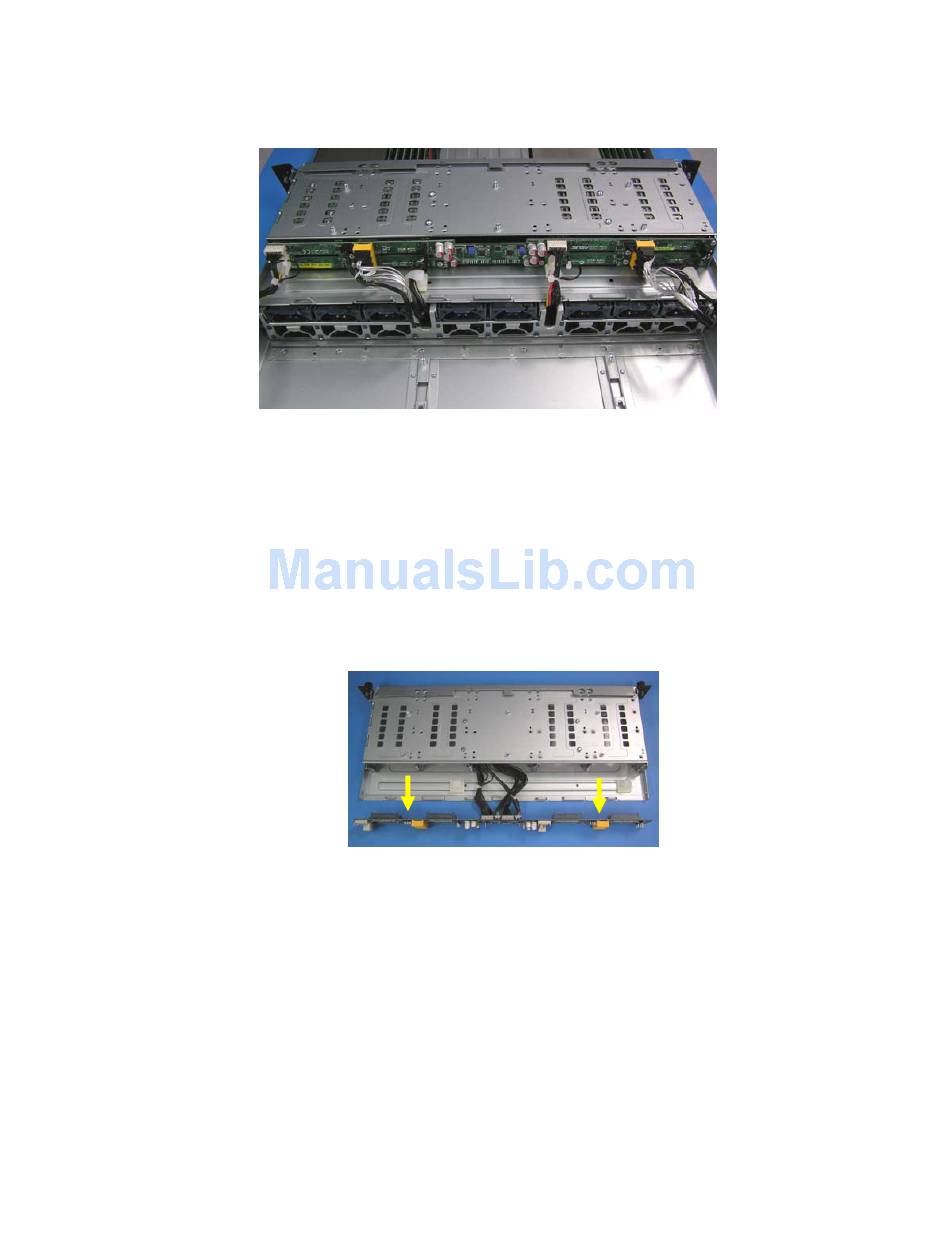

Figure 51. Connected Cables and Backplane Expose
