7. Embedded SATA RAID

This section provides an overview of the SATA Software RAID options embedded on the
server board. It describes how to enable the RAID feature and configure RAID sets using
either of the two SW RAID Configuration Utilities. For more in-depth RAID information
including definitions, setup, and support, refer to the respective SATA SW RAID Users
Guides included on the System Resource CD, or download them from the following Intel
website:
http://support.intel.com/support/motherboards/server/SR1670HV/

7.1 Selecting a RAID option

Embedded on the server board are options to support either of two SATA Software RAID
options:
LSI* SATA Software RAID (default) with support for RAID levels 0, 1, and 10 with drivers
to support both Linux* and Microsoft Windows* operating systems.
®
Intel Matrix Storage Manager with support for RAID levels 0, 1, 10, and 5 with drivers to
support Microsoft Windows* operating systems only.
By default, the server board is configured to support the LSI SATA Software RAID option.
To change options, you must move a jumper block on the server board. The following
diagram shows the location of the jumper block and its settings.
1 1
2 2
3 3
LSI
Intel
(Default)
®
Intel Server System SR1670HV Service Guide

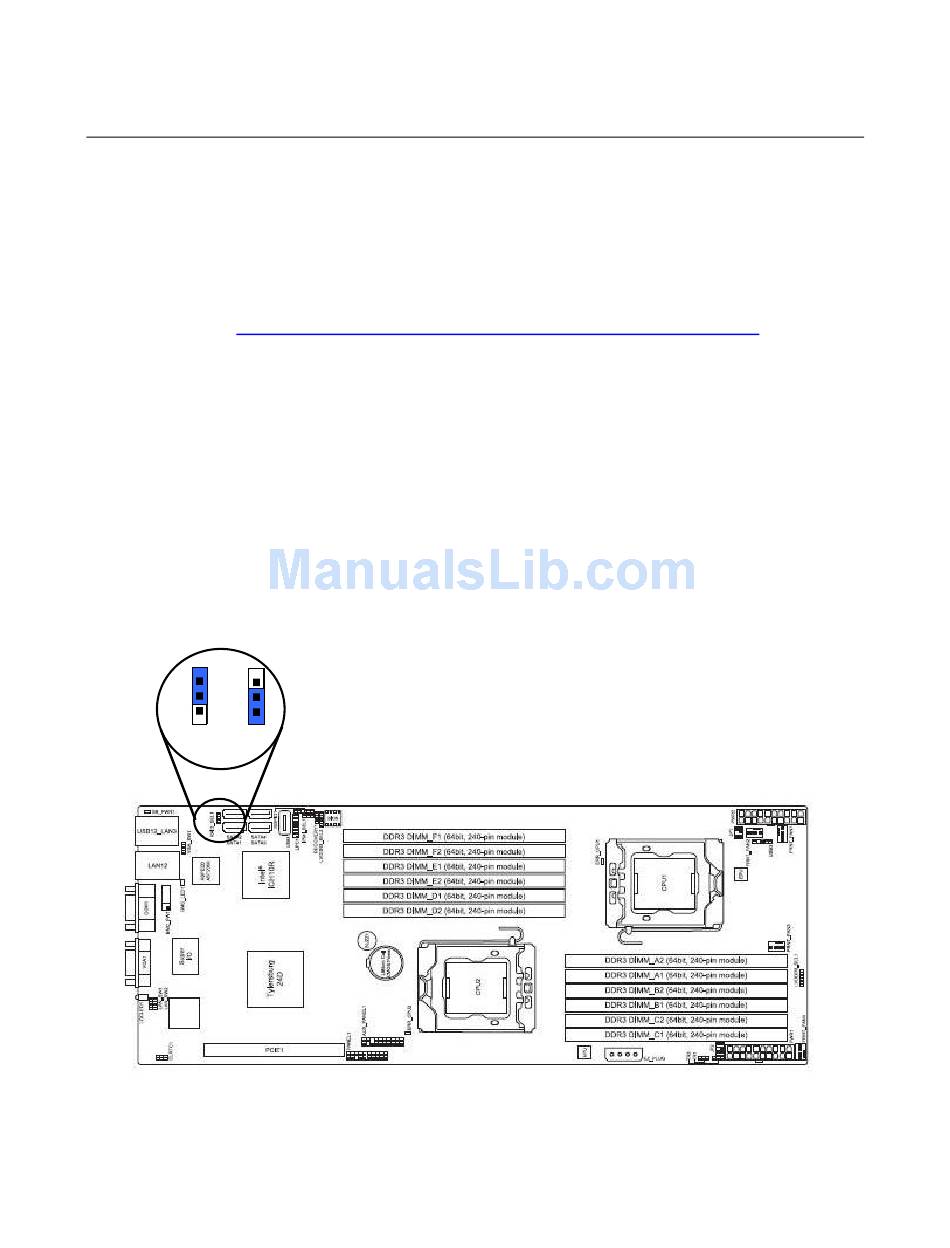

Figure 119. RAID Option Jumper Block

Embedded SATA RAID
81
