Jumpers, Connectors, and LEDs
5.1.6
Force BIOS Recovery Setting (3-pin RECOVERY1)
This jumper allows you to quickly update or recover the BIOS settings when it becomes
corrupted.
To update the BIOS:
1. Prepare a USB flash disk that contains the original or latest BIOS for the server
board (XXXXXX.ROM) and the AFUDOS.EXE utility.
2. Set the jumper to pins 2–3.
3. Insert the USB flash and turn on the system to update the BIOS.
4. Shut down the system.
5. Set the jumper back to pins 1-2.
6. Turn on the system.
38
®

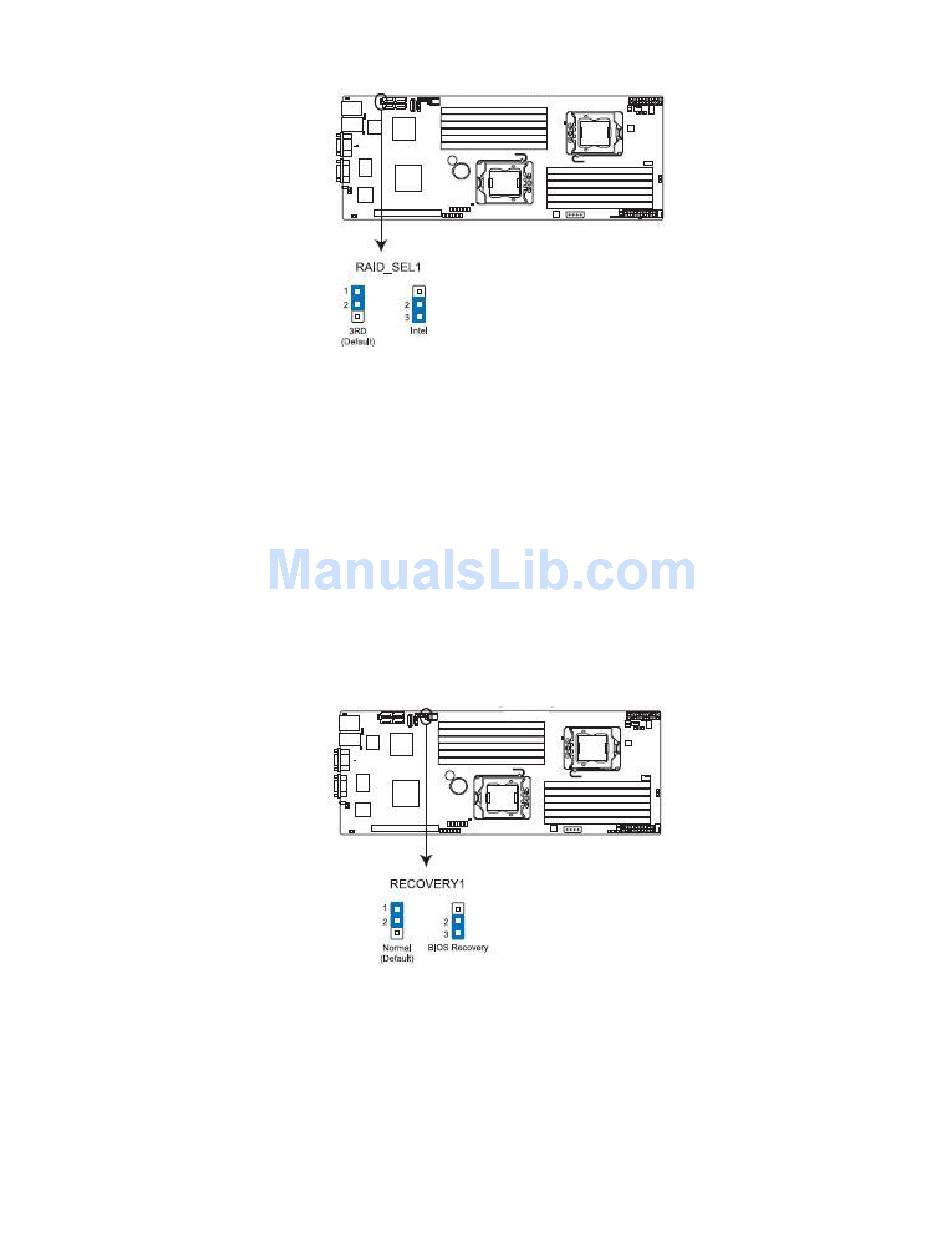

Figure 63. Intel
ICH10R SATA Port SW RAID Setting
Figure 64. Force BIOS Recovery Setting
®
Intel
Server System SR1670HV Service Guide
