BIOS Updates and Configuration
6.3.3.1 System Time [xx/xx/xxxx]
This option displays and gives the option to change the system time.
6.3.3.2 System Date [Day xx/xx/xxxx]
This option displays and gives the option to change the system date.
6.3.3.3 SATA 1-4 Sub-Menus
These fields display devices that BIOS automatically detected as attached to the on-board
SATA ports. A separate sub-menu is available to view/configure each detected device.
Select a device item, and then press <Enter> to display the device information.
Fields displayed in gray are information that the BIOS has obtained directly from the
device, and may include the following: Device Type, Vendor, Size, LBA Mode, Block
52

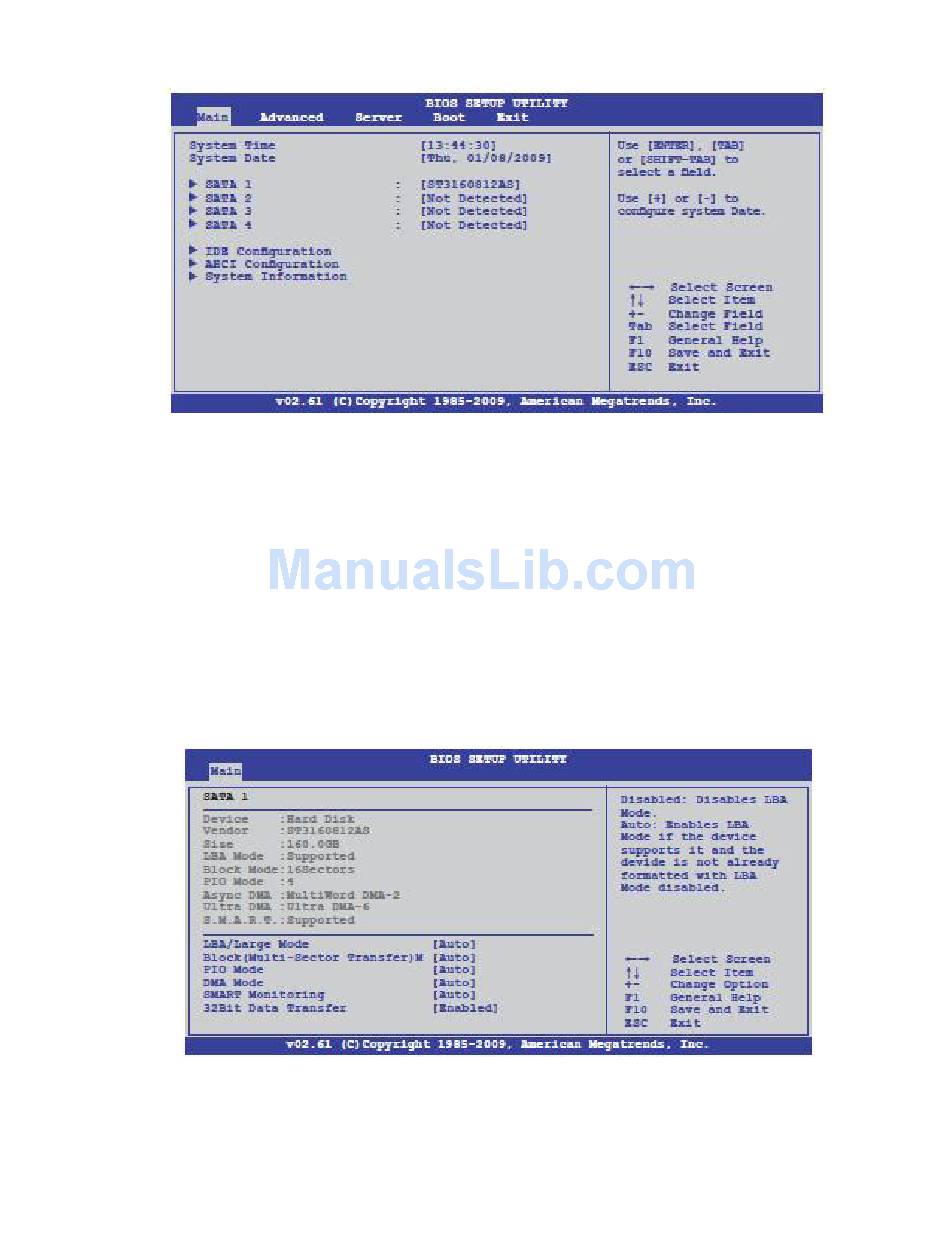

Figure 83. Main Menu

Figure 84. SATA1-4 Submenu

Intel
®
Server System SR1670HV Service Guide
