2. Hardware Setup

2.1 Chassis Cover

2.1.1

Removing the Chassis Cover

1. Loosen the two thumbscrews on the read panel to release the rear cover from the
chassis.
2. Firmly hold the cover and slide it toward the rear panel for about half an inch until
disengages from the chassis.
3. Lift the cover from the chassis.

2.2 Central Processing Unit (CPU)

Each installed server node provides two surface mount LGA 1366 CPU sockets designed
®
for the Intel Xeon
CAUTIONS
Upon purchase of the server board, ensure the PnP caps are installed
on each processor socket and the socket contacts are not bent. Contact
®
Intel Server System SR1670HV Service Guide

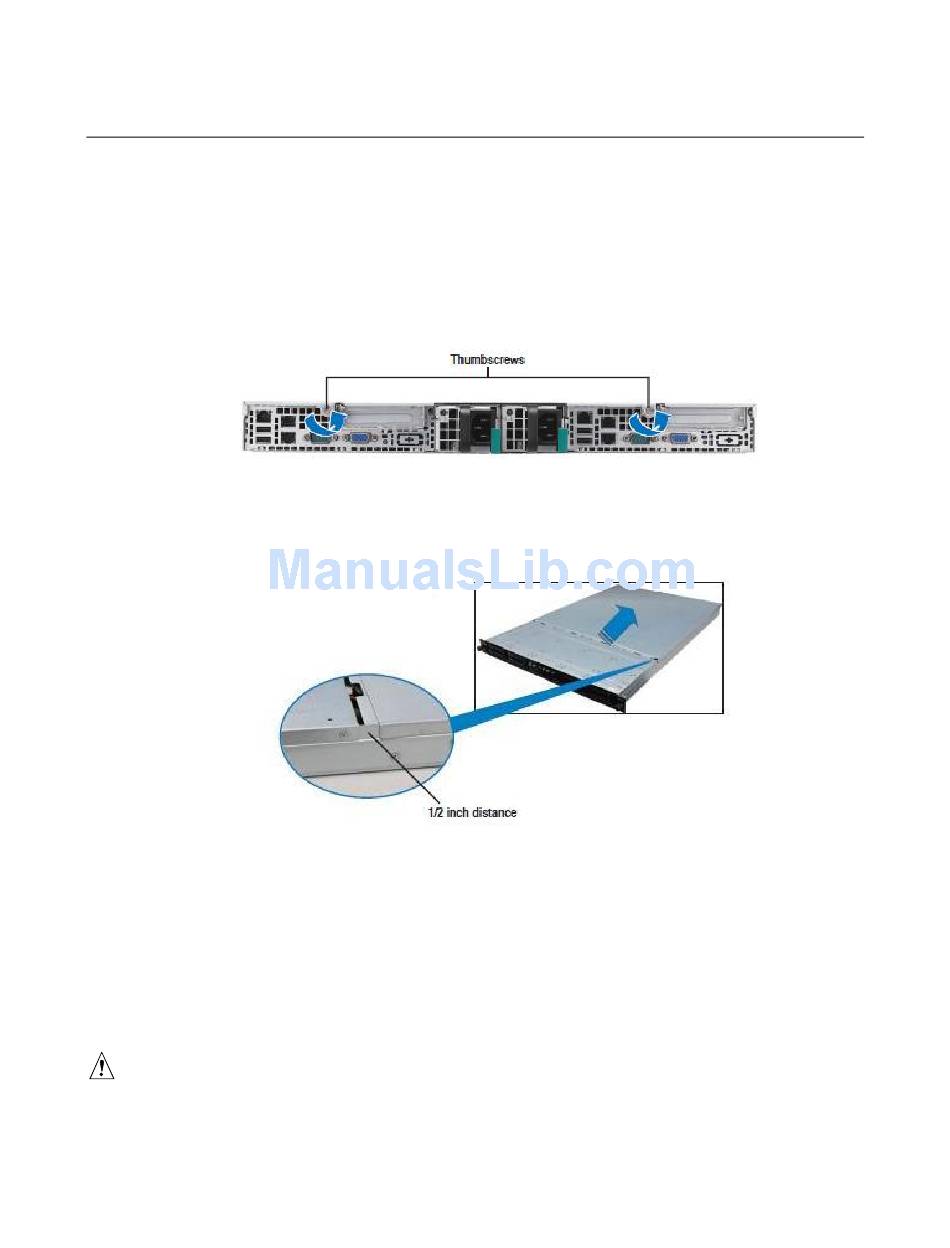

Figure 9. Rear Panel Thumbscrews

Figure 10. Sliding the Chassis Cover

®
Processor 5500 series and 5600 series.
Hardware Setup
9
