5.2.5
BMC Management Module Header (BMC_FW1)
The BMC connector on the server board supports a BMC Management Module.
5.2.6
Power Supply SMBus Connectors (6x1 pin JP1, JP2)
These connectors allow you to connect SMBus (System Management Bus) to the power
supply unit to read PSU information. Devices communicate with a SMBus host and/or
other SMBus devices using the SMBus interface.
®
Intel
Server System SR1670HV Service Guide

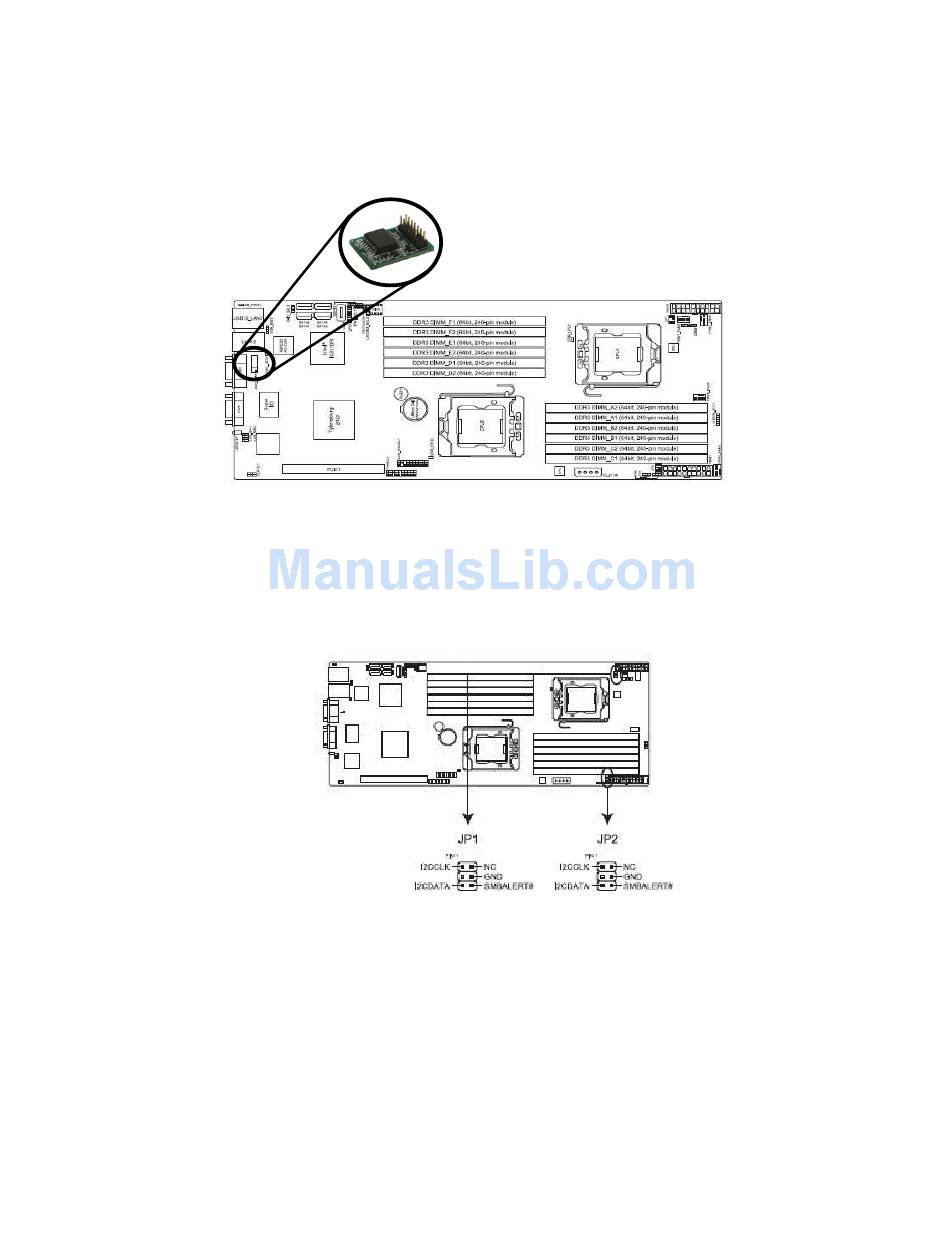

Figure 69. BMC Management Module Header
Figure 70. Power Supply SMBus Connectors
Jumpers, Connectors, and LEDs
41
