7. Secure the front end of the rail with two rack screws.
8. Secure the rear end of the rail with two rack screws.
9. Repeat steps 5 through 8 to assemble and attach the second rail.

3.3 Rackmounting the Server

To mount the server to the rack:
1. Align the server rails with the rack rails, and then push the server all the way to the
depth of the rack.
2. Drive a screw on the mounting ear to secure the server in place.
®
Intel Server System SR1670HV Service Guide

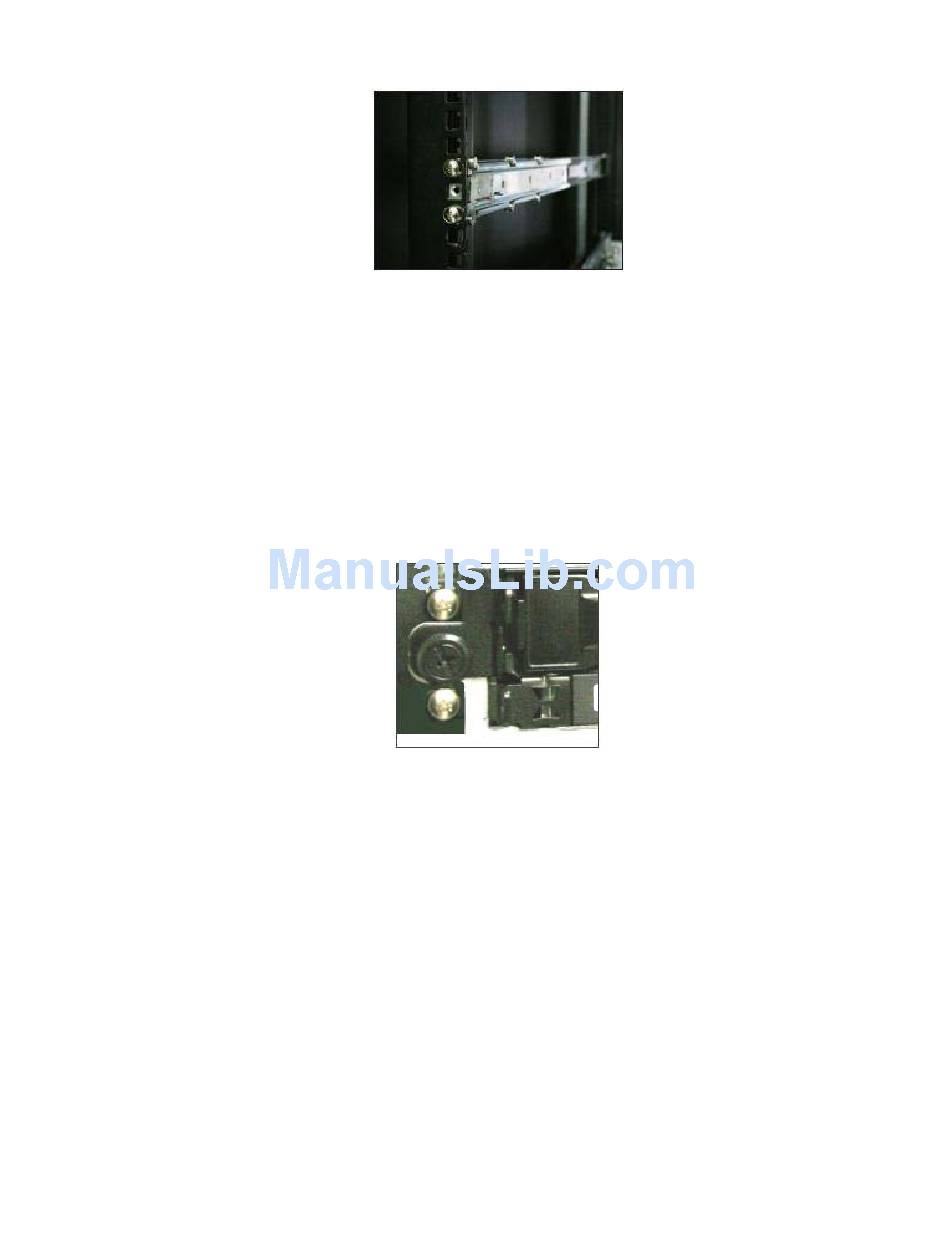

Figure 40. Positioning the Rack Rail to 1U Space on Rack

Figure 41. Mounting Ear

Installing the Rackmount Rail Kit
27
