Intel Chipset Device Installation; Figure 153. Driver Update Medium Screen; Figure 154. Intel Chipset Device Software Option - Intel SR1670HV - Server System - 0 MB RAM Service Manual

5. When the following screen displays, select the floppy disk drive (fd0) as the driver
update medium. Select OK and then press <Enter>.
The drivers for the RAID controller are installed into the system.
®
8.2 Intel Chipset Device Installation
This section provides instructions on how to install the Plug and Play components for the
®
Intel chipset on the system.
You must manually install the Intel
operating system. To install the Intel
1. Restart the computer and then log on with Administrator privileges.
2. Insert the server board/system Resource CD to the optical drive. The CD automatically
displays the Drivers menu if Autorun is enabled in your computer.
3. Click the item Intel Chipset Device Software from the menu.
®
4. The Intel Chipset Device Software window appears. Click Next to start installation.
®
Intel Server System SR1670HV Service Guide

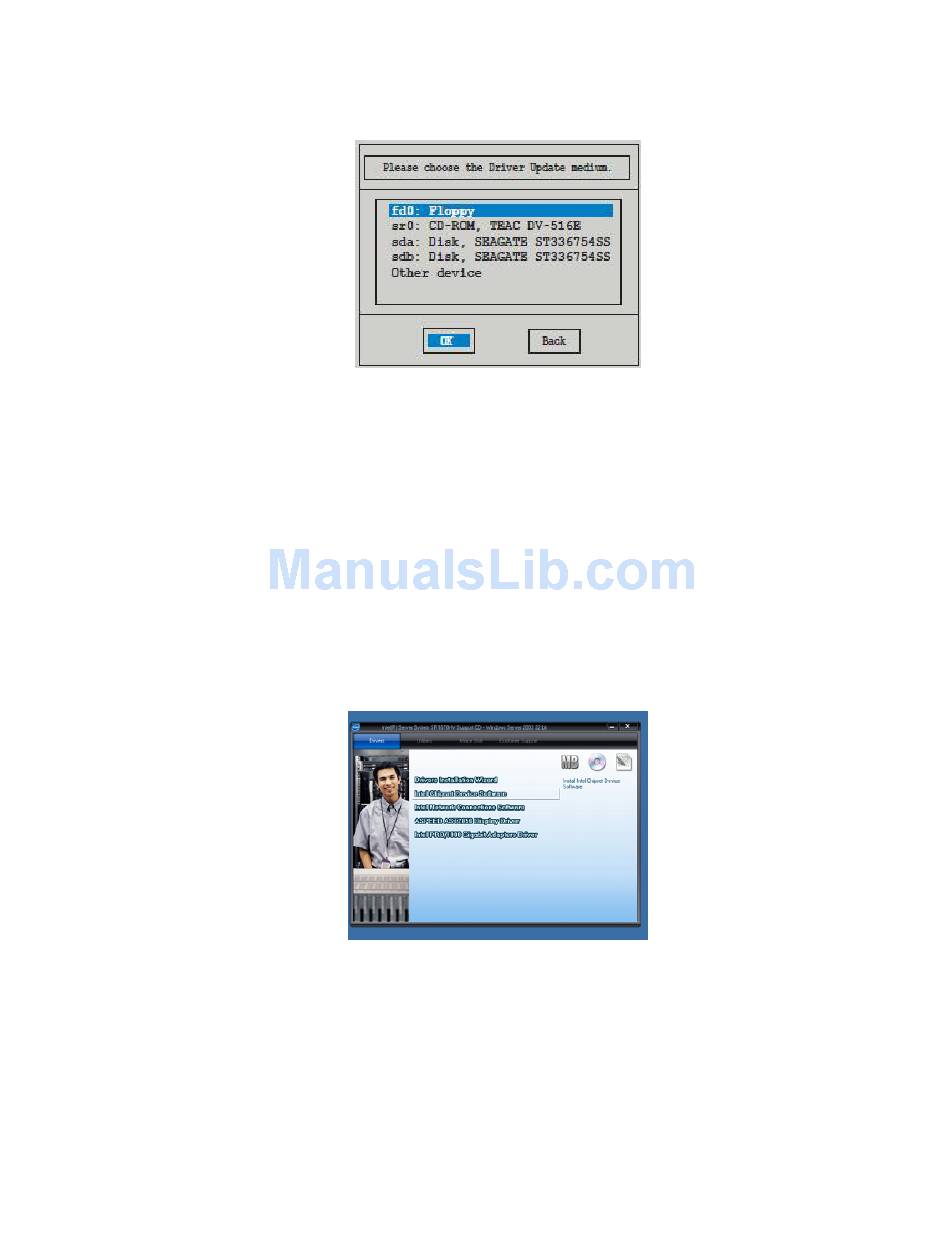

Figure 153. Driver Update Medium Screen

®
chipset software on a Microsoft Windows Server*
®
chipset device software:

Figure 154. Intel Chipset Device Software Option

Driver Installation
99
