Hardware Setup
2.5 Installing the BMC Management Module
Complete the following steps to install the BMC Management Module onto the server
board.
1. Locate the BMC_FW1 header on the server board.
2.
Orient and press the management card in place.
3. Insert the LAN cable plug into the Server Management LAN port located above the
USB ports.
NOTE: With the BMC Management Module installed, each time the AC power cord is plugged
into the server, there will be a delay of 45-60 seconds before the server powers on. During this
time, the Blue System ID LED will turn on, and the power button will be disabled. This power on
delay is required to reset the BMC controller on the BMC Management Module. Once the BMC
reset is complete, the System ID LED will turn off, and the power button functionality will be re-
enabled.
22

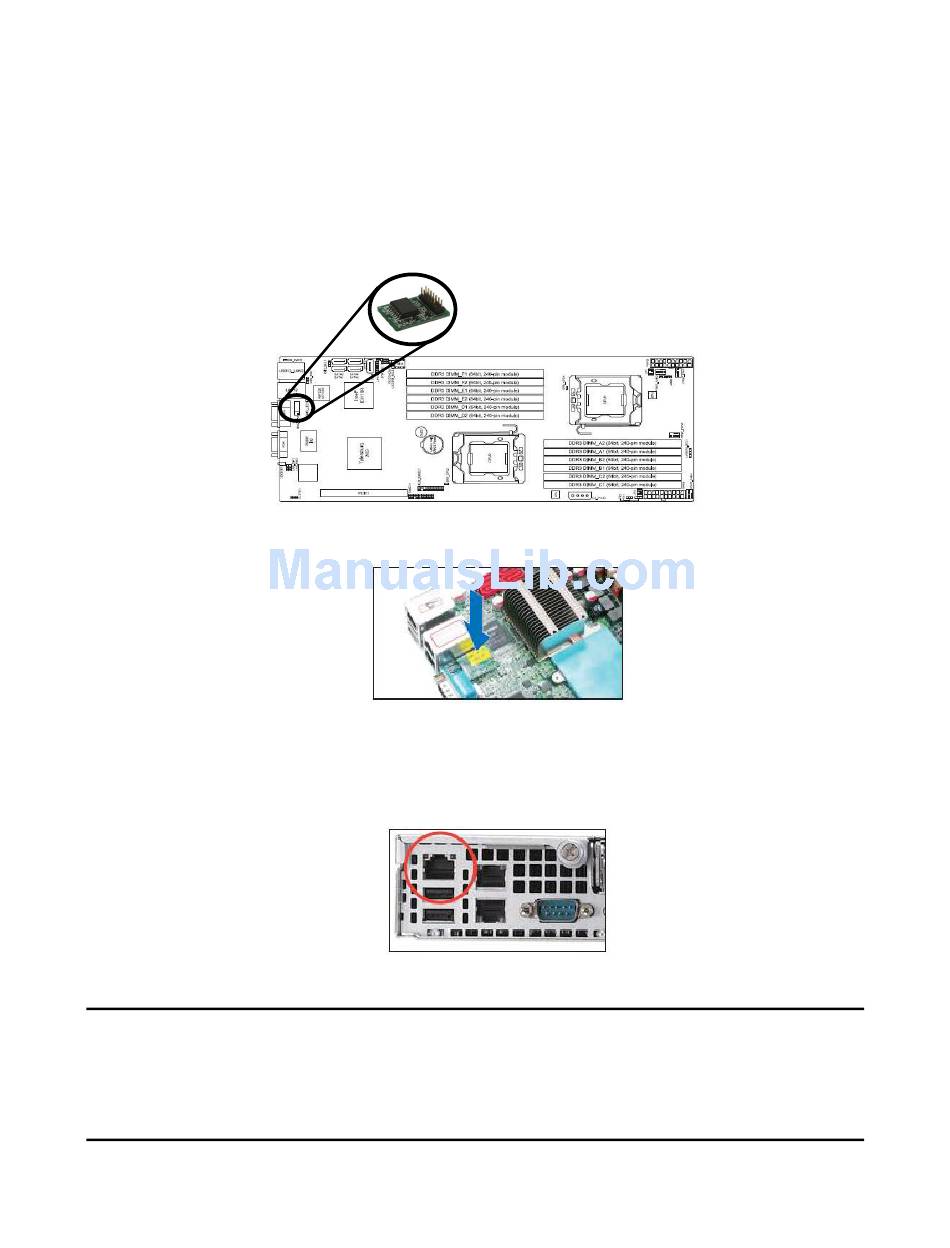

Figure 28. BMC_FW1 Header
Figure 29. Orienting the Management Module Card
Figure 30. Server Management LAN Port
®
Intel
Server System SR1670HV Service Guide
