1.6.2 RJ-45 LAN Ports 1 and 2 LEDs
ACT/LINK LED
Status
OFF
GREEN
BLINKING
1.6.3

HDD Status LED

LED
Power
Active

1.7 Cable Connections

NOTE: The bundled system cables are pre-connected before shipment. You do not need to
disconnect these cables unless you must remove pre-installed components for servicing or to
install additional devices.
Refer to Chapter 4, "System Service" for detailed information on the
connections.
®
Intel Server System SR1670HV Service Guide

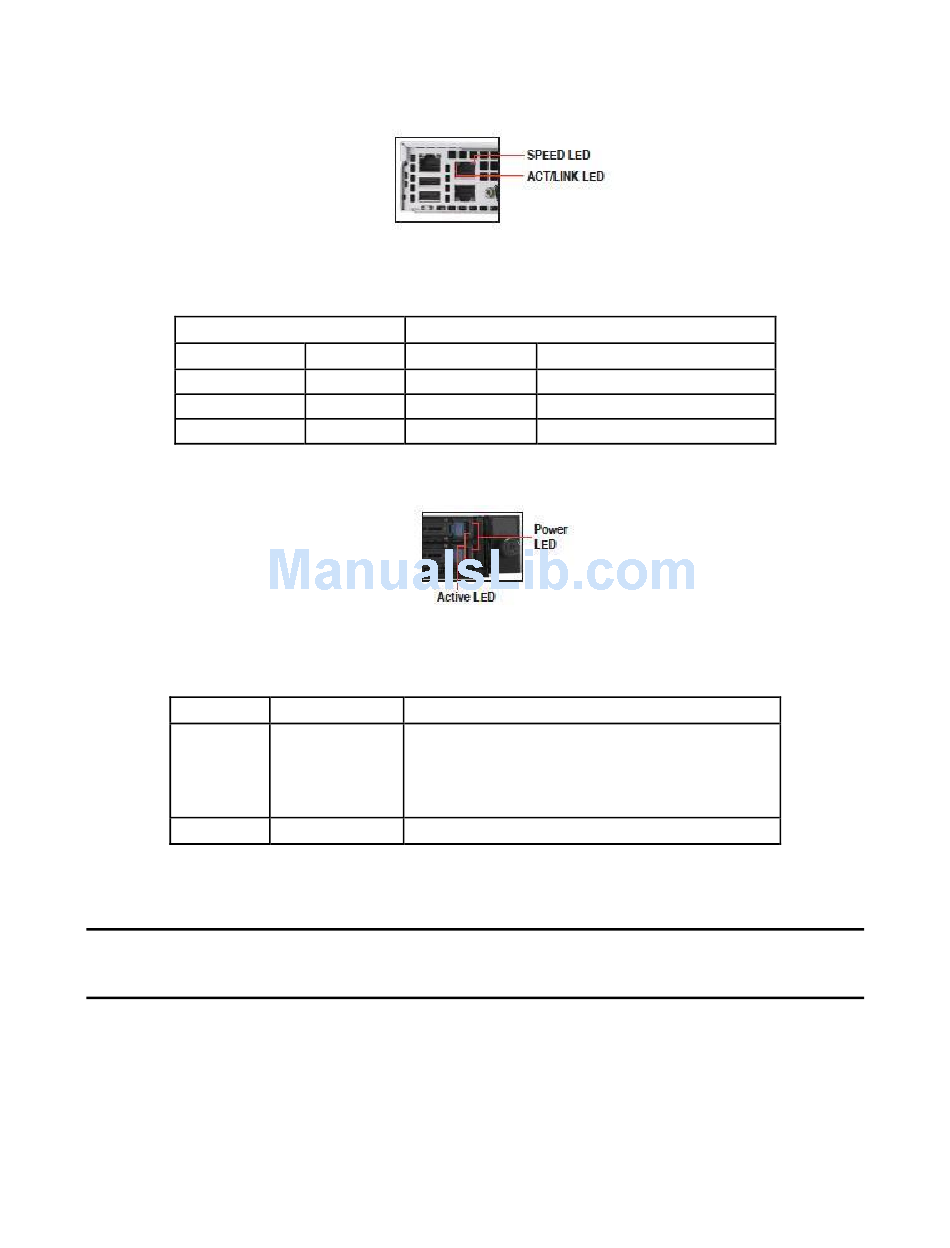

Figure 6. RJ-45 Ports 1 and 2 LEDs

Table 5. RJ-45 Ports 1 and 2 LEDs Descriptions

Description Status
No link OFF
Linked Orange
Data activity Green

Figure 7. HDD Status LED

Table 6. HDD LED Status Definitions

Status Description
Green Light ON Power On (detection HDD present)
Red Light ON RAID HDD fail (HDD plug-in ready but detection error)
G/R Blinking RAID rebuilding
OFF HDD not found
Green Blink Data read/write to HDD
Product Introduction
SPEED LED
Description
10 Mbps connection
100 Mbps connection
1 Gbps connection
7
