3. Installing the Rackmount Rail Kit

Your rackmount rail kit package contains:
Two pairs of server rails (for the server)
Two pairs of rack rails (for the rack)
Nut-and-bolt type screws

3.1 Attaching the Rails to the Server

To attach the server rails:
1. Attach the front end of the server rail to the side of the chassis, matching each of the
three hooks to the holes on the rail, and then slide the rail towards the front panel until
it locks into place.
®
Intel Server System SR1670HV Service Guide

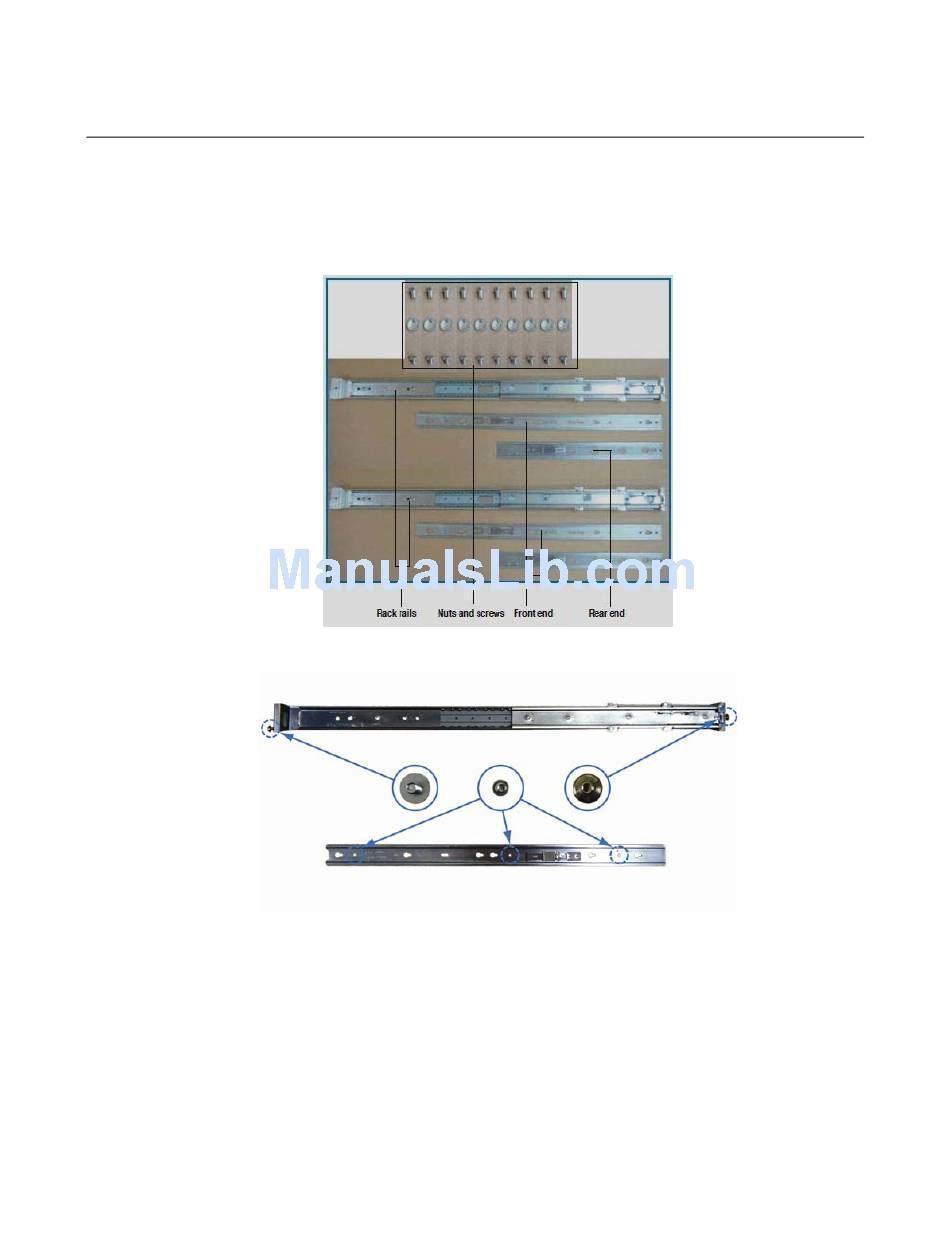

Figure 35. Rackmount Rail Kit Items

Figure 36. Screw positions on the rail

Installing the Rackmount Rail Kit
25
