5.3 Internal LEDs
5.3.1
Standby Power LED
The server board comes with a standby power LED. The green LED lights up to indicate
that the system is ON, in sleep mode, or in soft-off mode. This is a reminder that you
should shut down the system and unplug the power cable before removing or plugging in
any server board component. The following illustration shows the location of the onboard
LED.
5.3.2
CPU Warning LED (ERR_CPU1, ERR_CPU2)
The CPU warning LEDs light up to indicate an impending failure of the corresponding
CPU.
®
Intel
Server System SR1670HV Service Guide

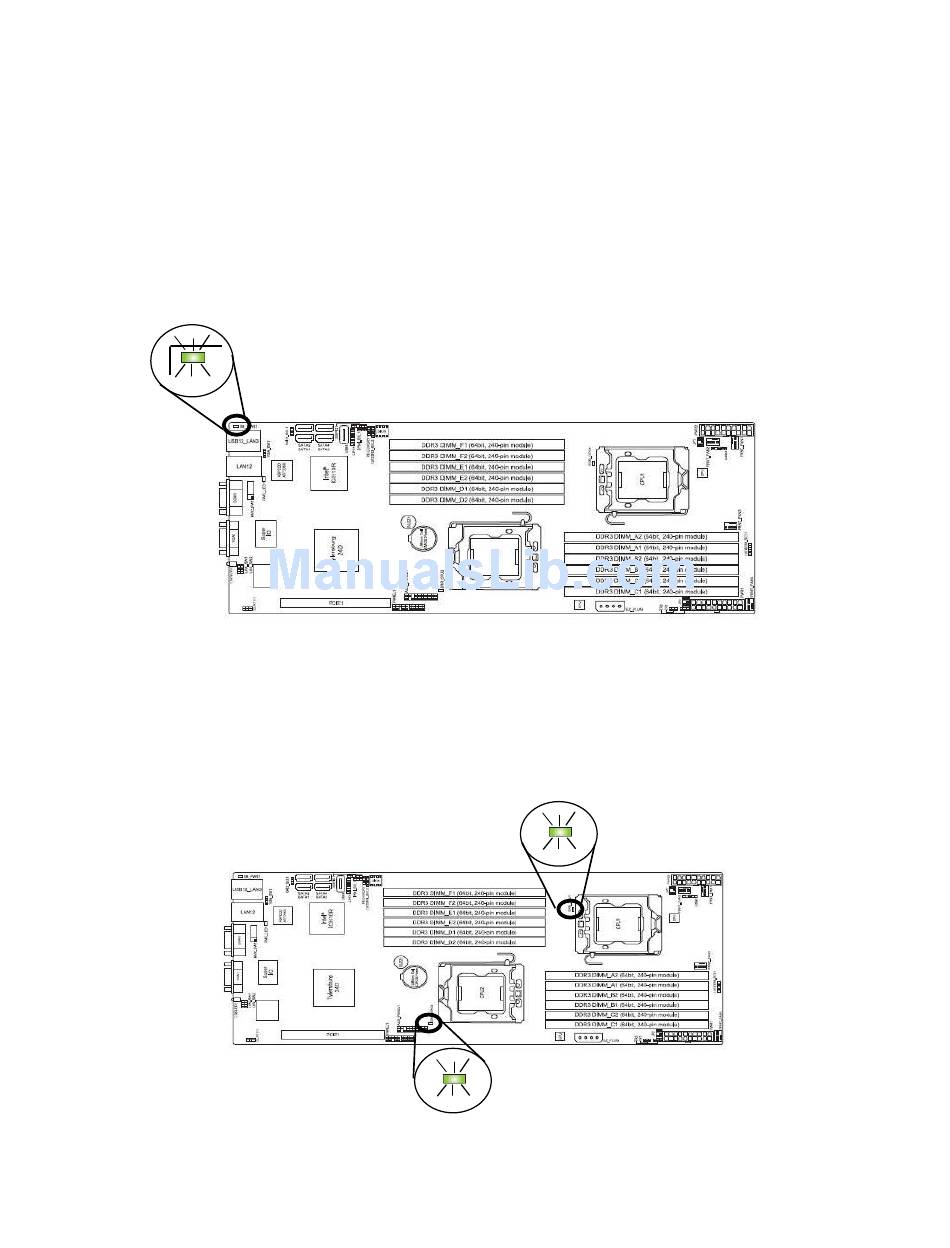

Figure 75. Standby Power LED
Figure 76. ERR CPU LED
Jumpers, Connectors, and LEDs
45
