BIOS Updates and Configuration
6.3.3.4.1
Configuration options: [Disabled] [Compatible] [Enhanced]
Configure SATA as [IDE]
Sets the configuration for the Serial ATA connectors supported by the Southbridge chip.
Configuration options: [IDE] [RAID] [AHCI]
TIPS
If you want to use the Serial ATA hard disk drives as Parallel ATA physical
storage devices, keep the default setting [IDE].
If you want the Serial ATA hard disk drives to use the Advanced Host
Controller Interface (AHCI), set this item to [AHCI]. The AHCI allows the
onboard storage driver to enable advanced Serial ATA features that
increases storage performance on random workloads by allowing the
drive to internally optimize the order of commands.
If you want to use LSI*Software RAID or the Intel
Technology configuration from the Serial ATA hard disk drives, set this
item to [RAID].
6.3.3.4.2
Disables or enables device write protection. This is effective only if the device is accessed
through the BIOS.
Configuration options: [Disabled] [Enabled]
6.3.3.4.3
Selects the time out value for detecting ATA/ATAPI devices.
Configuration options: [0] [5] [10] [15] [20] [25] [30] [35]
6.3.3.5 AHCI Configuration Sub-Menu
This menu is the section for AHCI configuration.
54

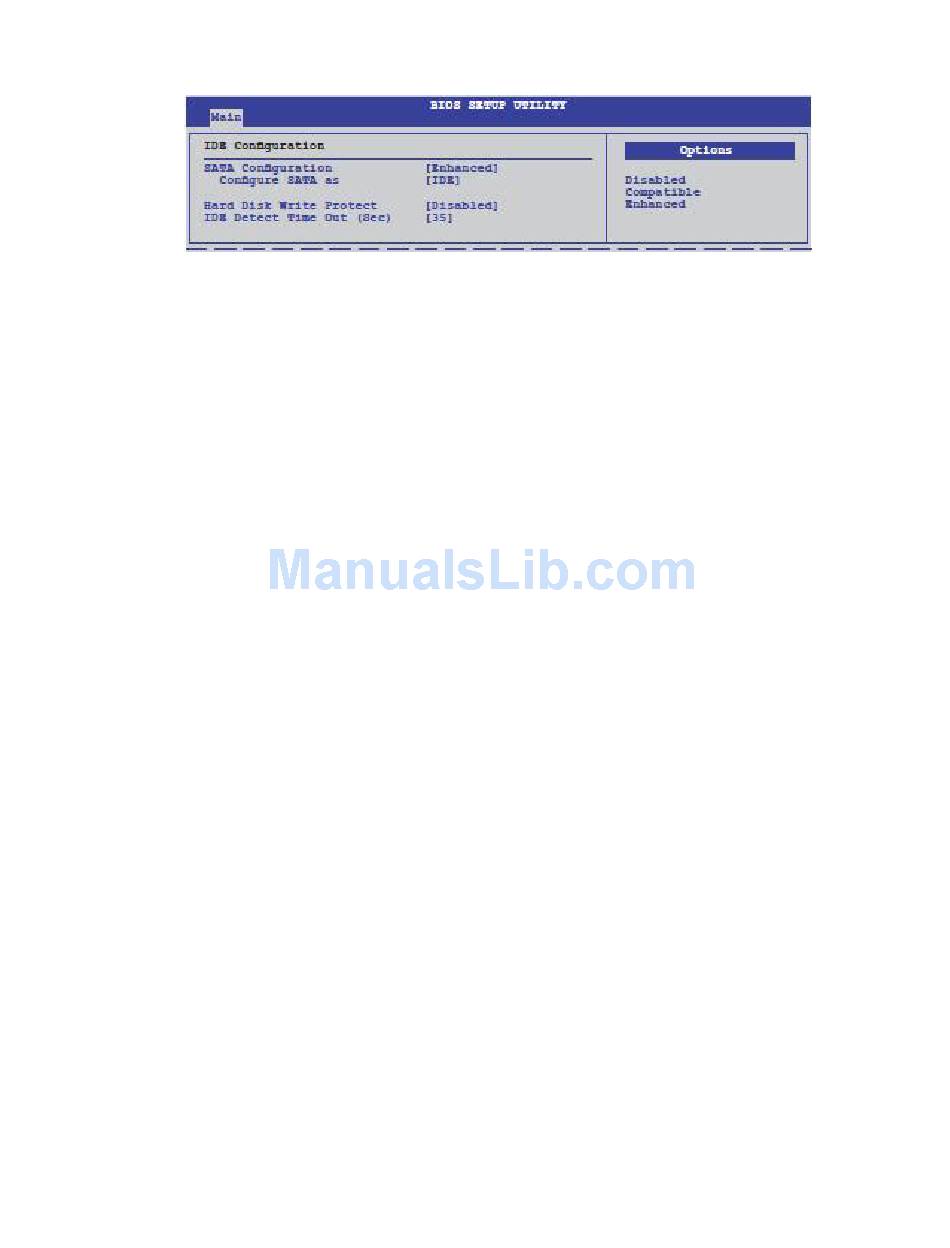

Figure 85. IDE Configuration Menu

SATA Configuration [Enhanced]
Hard Disk Write Protect [Disabled]
IDE Detect Time Out (Sec) [35]
®
Matrix Storage
®
