Installing the Rackmount Rail Kit

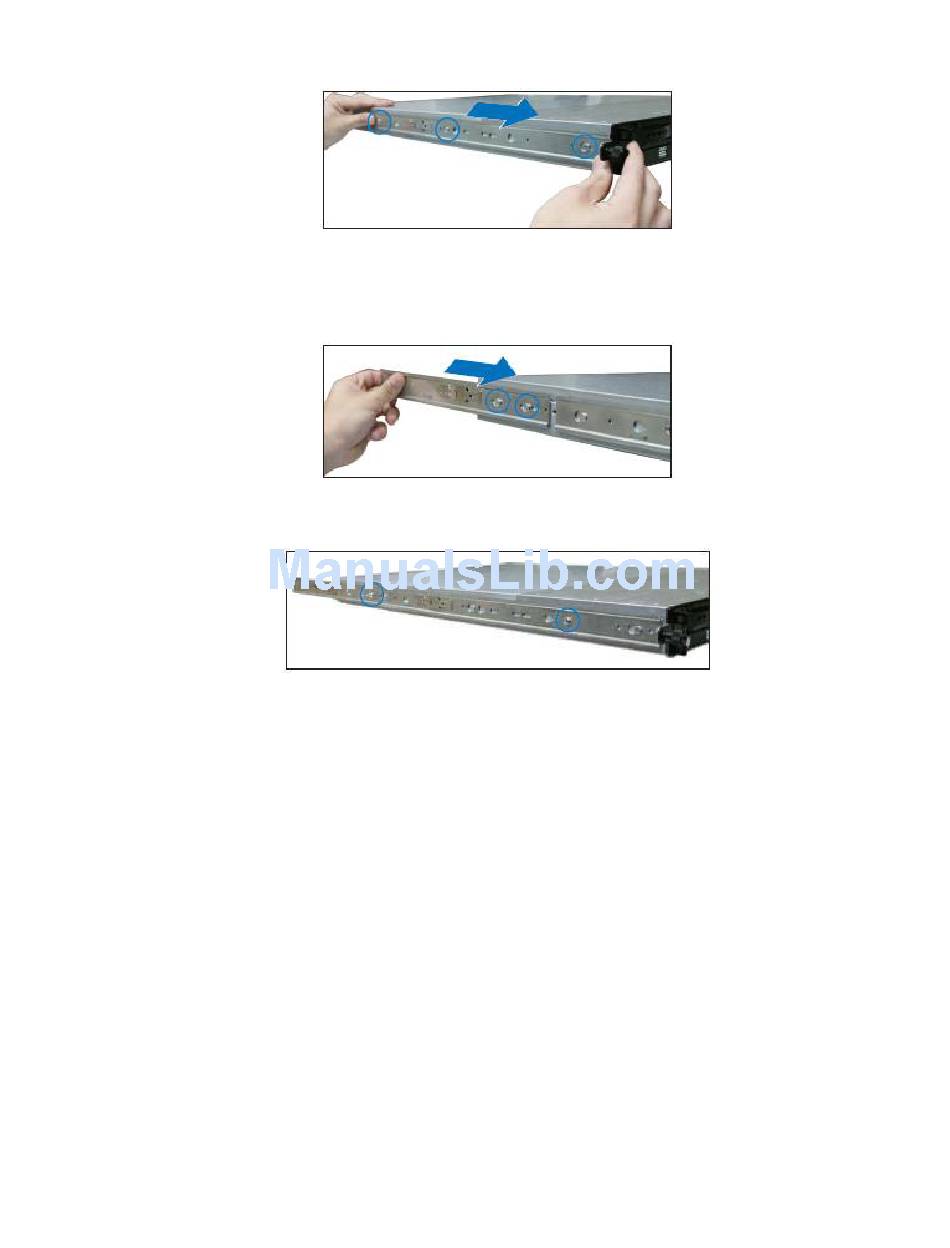

Figure 37. Attaching the Front End of the Server Rail to Side of Chassis

2. Attach the rear end of the server rail to the side of the chassis, matching each of the
two hooks to the hooks to the holes on the rail, and then slide the rail towards the front
panel until it locks into place.
3. Secure the server rail to the side of the chassis with two screws.
4. Repeat steps 1 through 3 to attach the second server rail to the other side of the
chassis.

3.2 Attaching the Rack Rails

To attach the rack rails:
1. Select one unit of space (1U) on the rack where you want to install the server system.
2. Install the nuts on the holes of the 1U space on the rack front.
3. Install the nuts on the holes of the 1U space on the corresponding rack rear.
4. Measure the depth of the rack to determine the length of the rack rails.
5. Measure the rack rail when assembled to ensure it fits the rack.
6. Position the rack rail to the 1U space on the rack. Ensure the front end of the rack rail
goes to the front of the rack space.
26

Figure 38. Sliding the Server Rail

Figure 39. Securing the Server Rail With Screws

®
