5.2 Server Board Connectors
5.2.1
Serial ATA Connectors (7-pin SATA1, SATA2, SATA3,
SATA4)
Supported by the Intel
cables for Serial ATA hard disk drives that allow up to 3 Gb/s of data transfer rate.
5.2.2
Internal USB Connectors (A-Type USB4; 5x1 pin USB3)
These connectors are for USB 2.0 ports. Connect the USB module cables to connectors
USB3, and then install the modules to a slot opening at the back of the system chassis.
These USB connectors comply with USB 2.0 specification which supports up to 480 Mbps
connection speed.
®
Intel
Server System SR1670HV Service Guide
®
ICH10R chipset, these connectors are for the Serial ATA signal

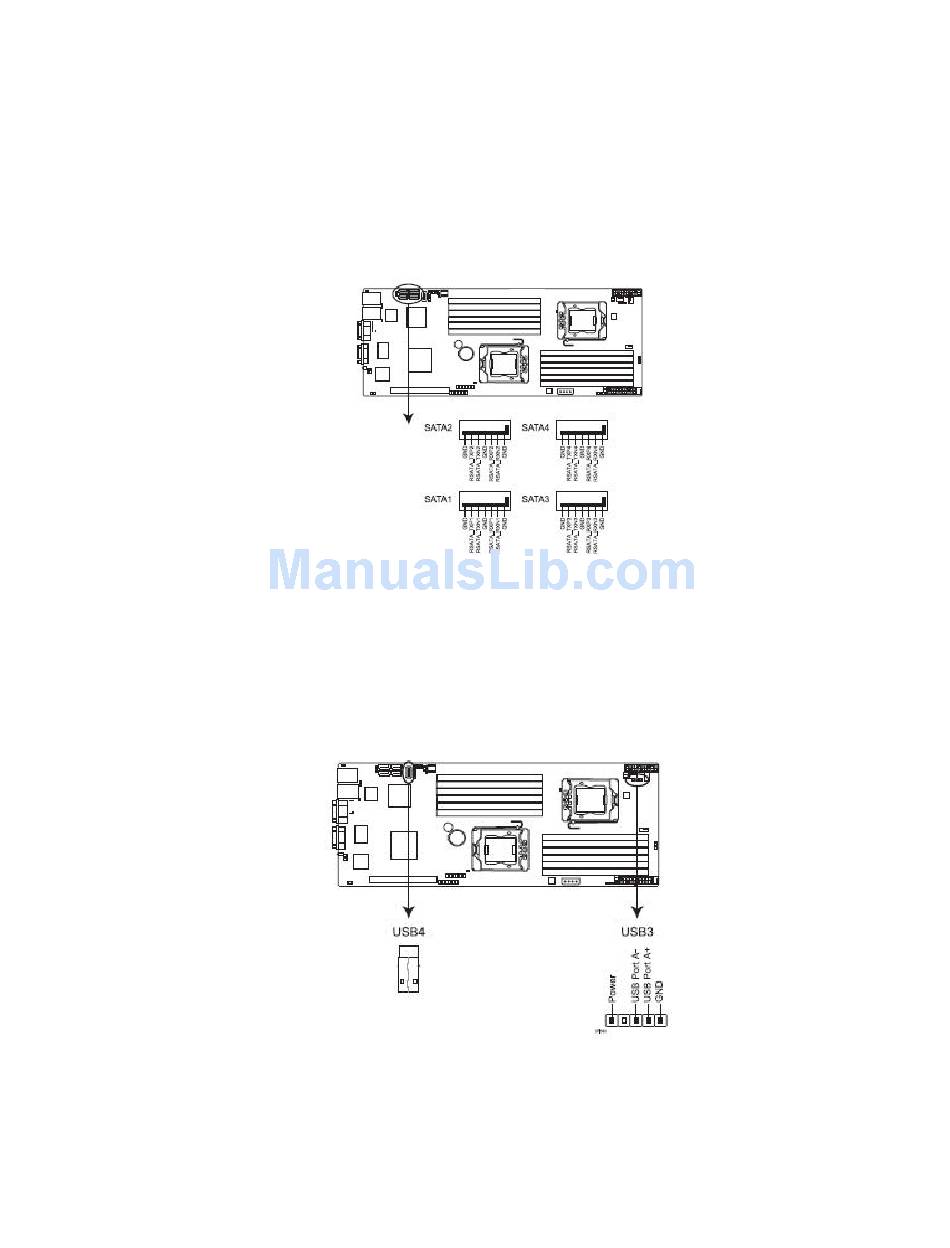

Figure 65. SATA Connectors
Figure 66. USB 2.0 Connectors
Jumpers, Connectors, and LEDs
39
