Figure 12. Retention Tab And Load Lever; Figure 13. Load Plate; Figure 14. Pnp Cap - Intel SR1670HV - Server System - 0 MB RAM Service Manual

3. Lift the load lever in the direction of the arrow to a 135° angle.
4. Lift the load plate with your thumb and forefinger to a 100° angle.
5. Remove the PnP cap from the processor socket.
6. Position the processor over the socket, making sure the gold triangle is on the bottom-
left corner of the socket, and then fit the socket alignment key into the processor notch.
CAUTION
The processor fits in only one correct orientation. DO NOT force the
processor into the socket to prevent bending the connectors on the
socket and damaging the processor!
®
Intel Server System SR1670HV Service Guide

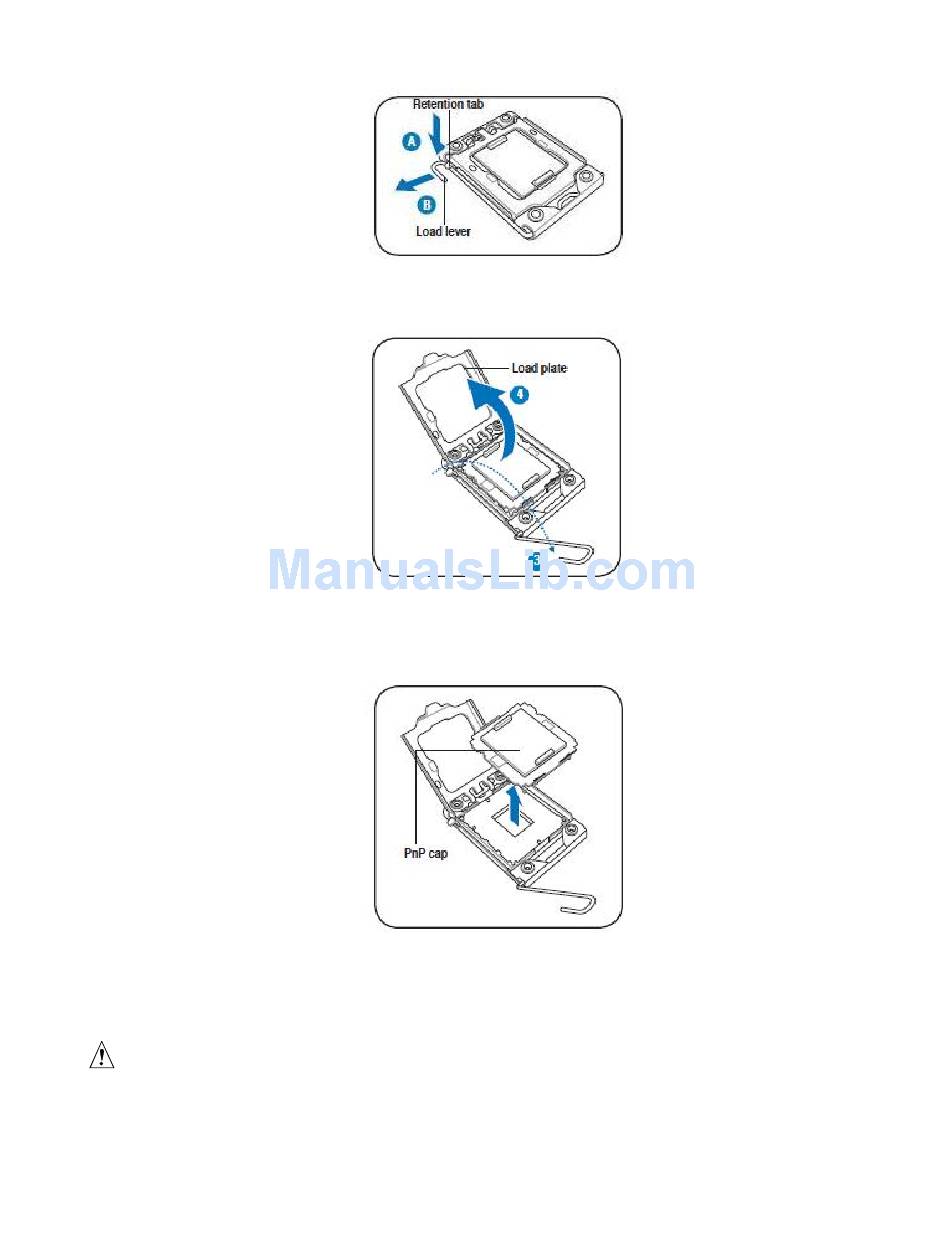

Figure 12. Retention Tab and Load Lever

Figure 13. Load Plate

Figure 14. PnP Cap
