BIOS Updates and Configuration
6.3.4.12 Hardware Monitor Sub-Menu
Scroll down for more items.

Figure 105. Hardware Monitor Configuration Menu, Continued

6.3.4.12.1
The onboard hardware monitor automatically detects and displays the processor
temperatures. Select [Ignored] if you do not want to display the detected temperatures.
6.3.4.12.2
The onboard hardware monitor automatically detects and displays the speed of pll system
fans in rotations per minute (RPM). If the fan is not connected to the server board, the field
shows [N/A].
6.3.4.12.3
This option allows you to select whether or not the system fan speeds are monitored and
controlled by the BMC or not.
Configuration options: [Full Speed Mode] [High Density Mode]
6.3.4.12.4
P1/2VTT Voltage, +1.1V_IOH Voltage, +12V Voltage, +5V Voltage, +3.3V
Voltage, +5VSB Voltage, +3VSB Voltage, VBAT Voltage
The onboard hardware monitor automatically detects the voltage output through the
onboard voltage regulators. Select [Ignored] if you do not want to detect this item.
70

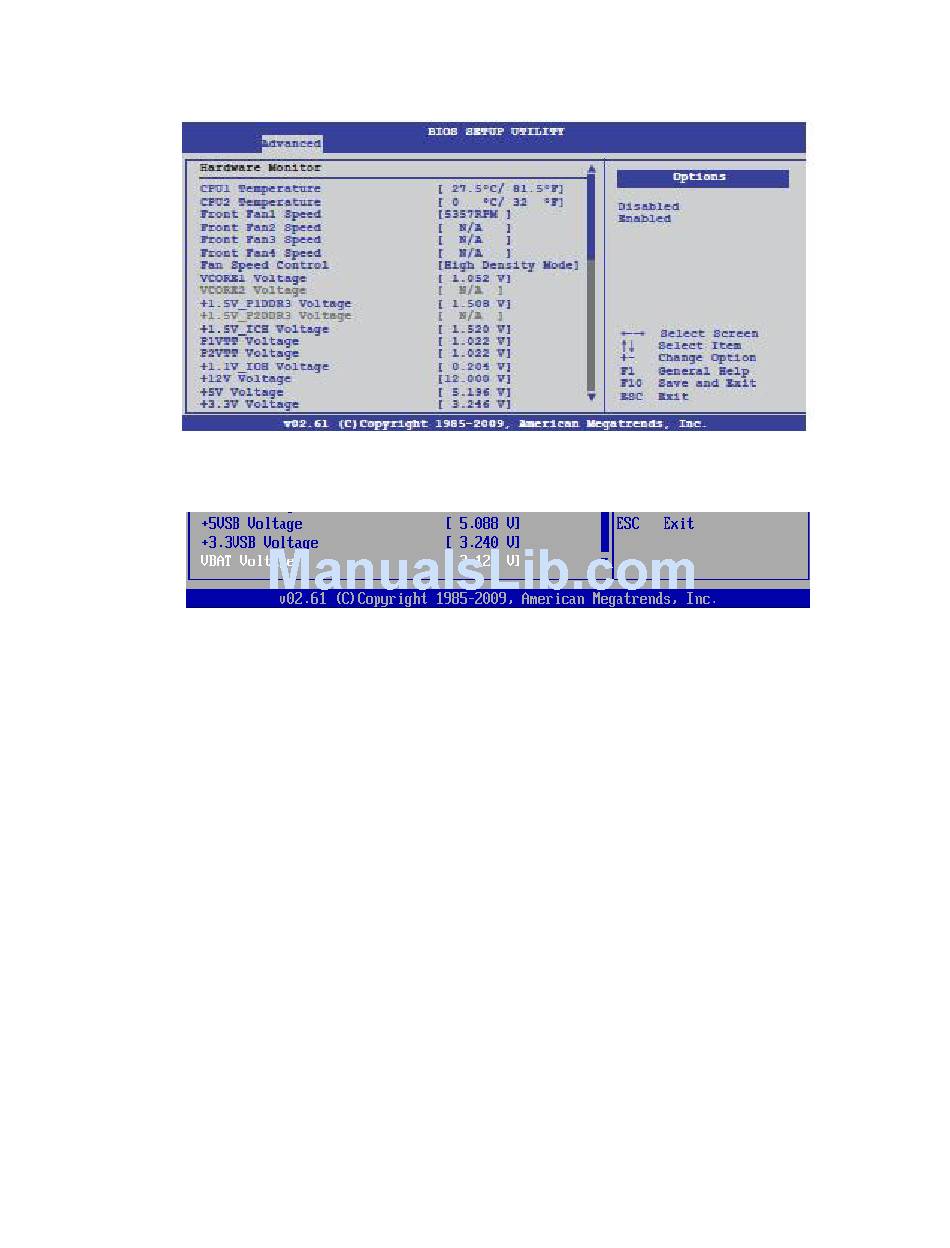

Figure 104. Hardware Monitor Configuration Menu

CPU1/2 Temperature [xxx°C/xxx°F]
System Fan1–4 Speed [xxxxRPM] or [Ignored]/[N/A]
Fan Speed Control
VCORE1/2 Voltage, +1.5V_P1/2DDR3 Voltage, +1.5V_ICH Voltage,
®
Intel Server System SR1670HV Service Guide
