Driver Installation
9. Select the option Install the software automatically (Recommended), and then click
Next.
10. The wizard searches the RAID controller drivers. When found, click Next to install the
drivers.
11. Click Finish after the driver installation is done.
8.1.2.1.2
1. Right-click the My Computer icon on the Windows
from the menu.
2. Click the Hardware tab, and then click the Device Manager button.
3. Click the "+" sign before the item SCSI and RAID controllers, and then the Intel(R)
ICH8R/ICH9R/ICH10R/DO SATA RAID Controller item should appear.

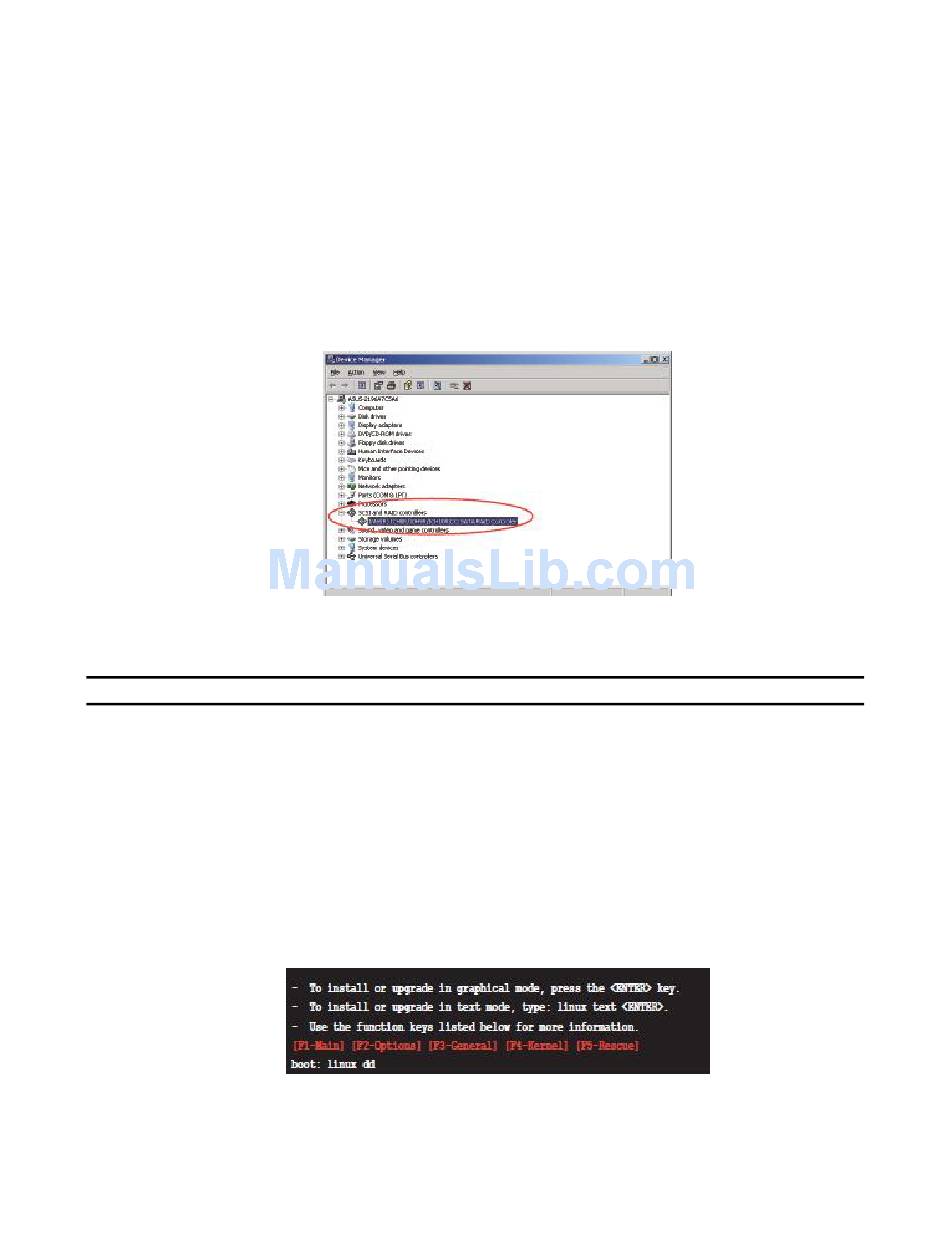

Figure 144. Intel ICH8R/ICH9R/ICH10R/DO SATA RAID Controller Item

NOTE: The screen differs based on the controller.
4. Right-click the RAID controller driver item, and then select Properties from the menu.
5. Click the Driver tab, and then click the Driver Details button to display the RAID
controller drivers.
6. Click OK when finished.
8.1.2.2 Red Hat* Enterprise
To install the RAID controller driver when installing the Red Hat* Enterprise operating
system:
1. Boot the system from the Red Hat* Installation CD.
2. At the boot:, type
3. Select Yes using the <Tab> key when asked if you have the driver disk, and then
press <Enter>.
96
To verify the RAID controller driver installation:
, and then press <Enter>.
linux dd

Figure 145. Installing Red Hat* Enterprise

®
desktop, and then select Properties
®
Intel Server System SR1670HV Service Guide
