System Service
3. Reinstall the chassis cover. Press down gently on the location above the system fans
to ensure proper fan installation as shown in the following figure.

4.3 SATA/SAS BackPlane Replacement

The system includes a single SATA/SAS backplane that is mounted to the back side of the
hard disk drive (HDD) bay module. You can replace the backplane replacement by
performing the following procedure:
1. Remove the system top cover.
2. Remove all hard disk drive assemblies from the drive bays.
NOTE: It is important to label each hard drive with the location from which it was taken from.
You must return hard drives to the same place from which they were taken once you complete
the backplane replacement procedure.
3. The HDD bay module is held in place by six screws, three on each side of the
chassis. Remove all six screws.
4. Slide the HDD bay module forward approximately ½ inch (1.27cm) and lift front
edge of module from alignment guide slots.
30

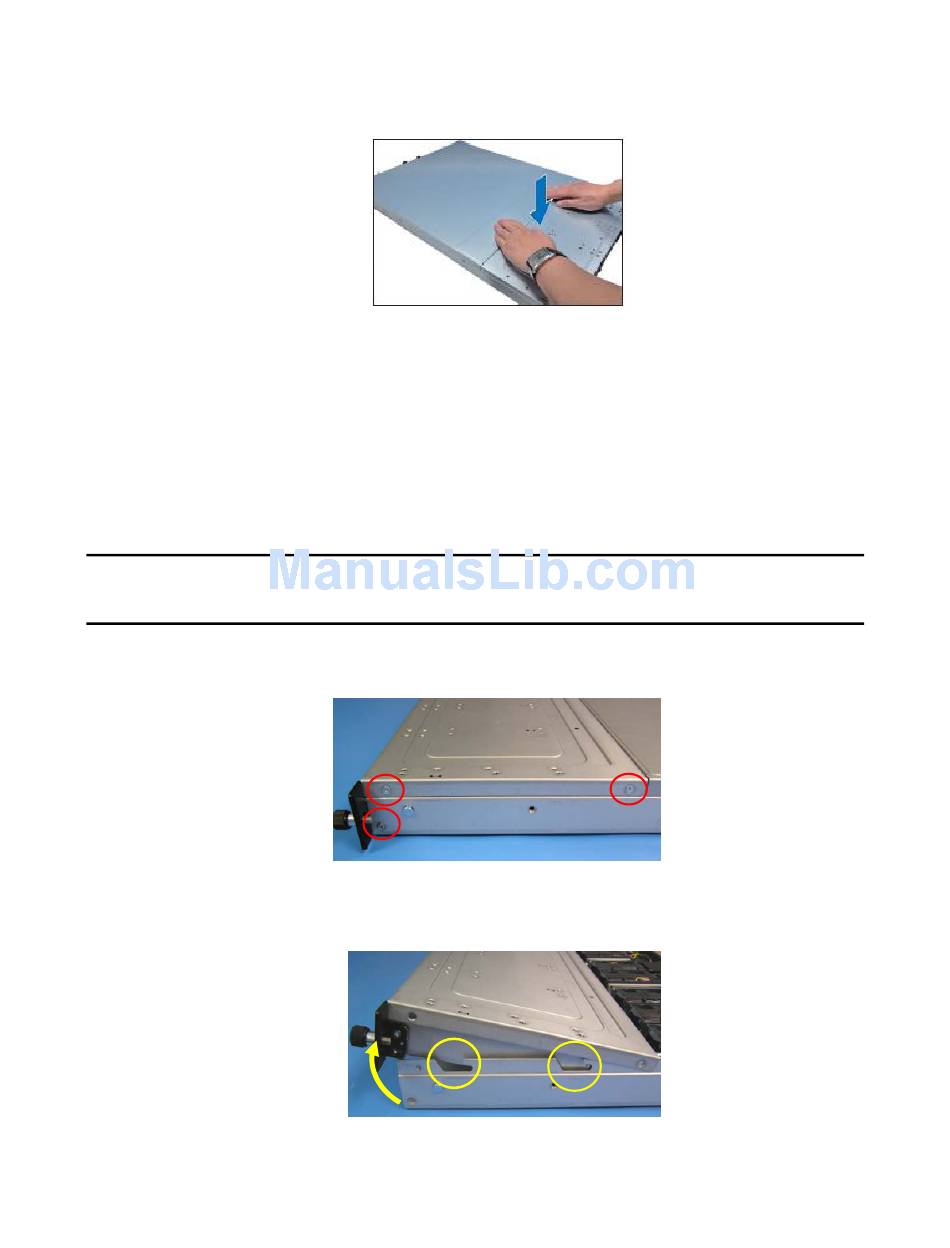

Figure 48. Restoring the Chassis Cover

Figure 49. Screws On Hard Disk Drive Bay Module

Figure 50. Sliding the Hard Disk Drive Bay Module

®
Intel Server System SR1670HV Service Guide
