C
ONFIGURING THE
Web – Click Port, Mirror Port Configuration. Specify the source port, the
traffic type to be mirrored, and the monitor port, then click Add.
CLI – Use the interface command to select the monitor port, then use the
port monitor command to specify the source port. Note that default
mirroring under the CLI is for both received and transmitted packets.
Console(config)#interface ethernet 1/10
Console(config-if)#port monitor ethernet 1/13
Console(config-if)#

Configuring Rate Limits

This function allows the network manager to control the maximum rate
for traffic received on an interface. Rate limiting is configured on interfaces
at the edge of a network to limit traffic coming into the switch. Packets
that exceed the acceptable amount of traffic are dropped.
Rate limiting can be applied to individual ports or trunks. When an
interface is configured with this feature, the traffic rate will be monitored
by the hardware to verify conformity. Non-conforming traffic is dropped,
conforming traffic is forwarded without any changes.
Rate Limit Configuration
Use the rate limit configuration pages to apply rate limiting.
3-132
S
WITCH

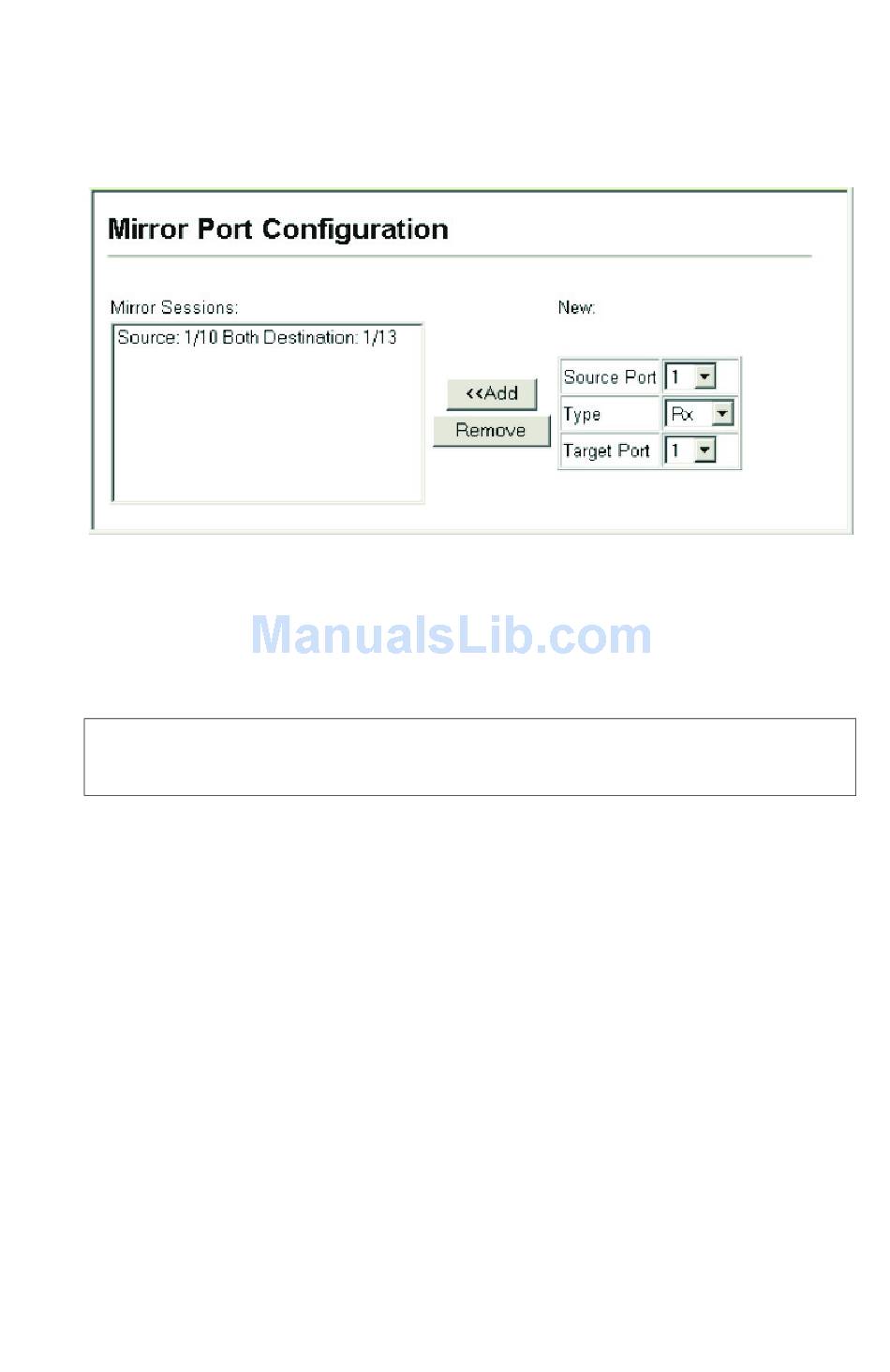

Figure 3-58. Configuring a Mirror Port

4-146
4-160
